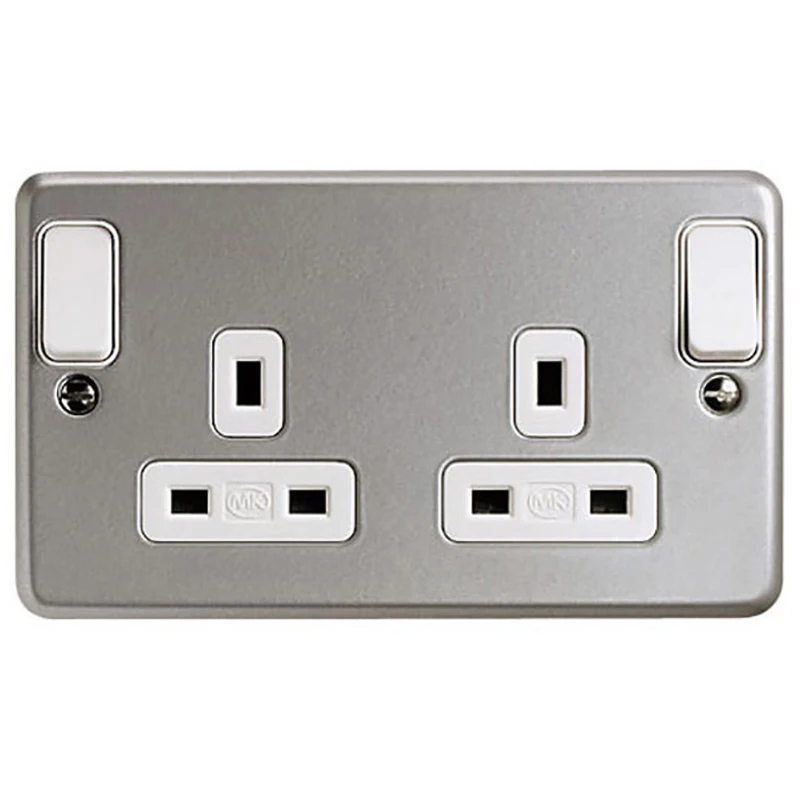

Socket 2 Gang Switched Double Pole Dual Earth 13A Aluminium Outboard Rocker
£43.58 Incl. VAT
The MK K2945ALM is an Aluminium, 13A, 2 Gang, Double Pole Socket with Outboard Rockers. It comes complete with a back box with 8 20mm knockouts, three in the top, two in the bottom, one in either side and one in base. They are fitted with two earth terminals to provide a double earth facility for use when installations require a high integrity protective connection as specified within BS 7671: 2008. It also has double pole switching (neutral makes first, breaks last). The MK Metalclad Plus Range is made from heavy gauge steel making it a very tough set of products. This means they are ideal use in factories, workshops, garages and sheds. Earth terminals are fitted in the back box. · · · Current rating 13A · · No. of gangs 2 · · No. of poles 2 · · Switched/ Unswitched : Switched · · Mounting type Surface · · Voltage 230V · · Fixing Centres 120.6mm · · Frequency 50/60 Hz · · With outboard rockers and dual earth terminals · · Terminal Capacity: 2×6.0mm stranded (max)
81 in stock
Description
Technical Specifications Technical Specifications Multi combination switch/push button/socket outlet Type of fastening Mounting with screw Method of operation Rocker Mounting method Surface mounted Mounting direction Horizontal Material Metal Colour Aluminium Number of poles 2 Nominal voltage 250 V Rated current 13 A Width of device 146 mm Number of switchable socket outlets 2 Depth of device 51 mm Height of device 86 mm · Technical Data Sheet – Click to Download
