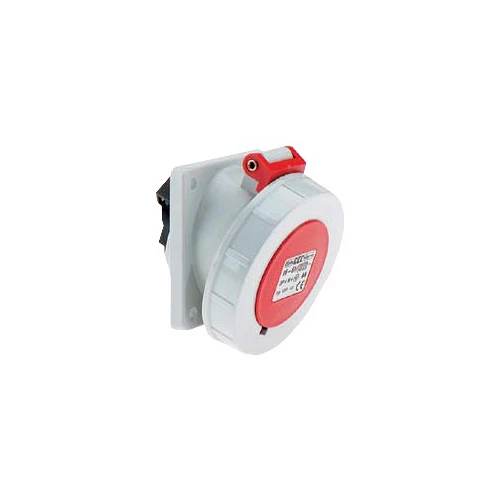

Socket Panel 3P+N+E IP67 32A 415V Red
Socket Panel 3P+N+E IP67 32A 415V Red
Socket Panel 3P+N+E IP67 32A 415V Red - Image 2
Socket Panel 3P+N+E IP67 32A 415V Red - Image 3

Socket Panel 3P+N+E IP67 32A 415V Red

£70.10 Incl. VAT

CEENorm Socket Outlet is panel mounted, with screw/clamp terminals and pilot contact. This pilot contact should not be counted as a main pin. · · · With screw/clamp terminals and pilot contact · · Pilot contact should not be counted as a main pin · · IP67 Protection rated

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1288 Categories: , , Brand: Part Number: 2500036274

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Connection system Screwed terminal Degree of protection (IP rating) IP67 Material Plastic Voltage acc. EN 60309-2 400 V (50+60 Hz) red Surface finish contacts Untreated Angle of plug Angled Identification colour Red Contact material CuZn RAL number 3000 Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 32 A Flange size horizontal 92 mm Flange size vertical 100 mm Drill hole distance horizontal 77 mm Drill hole distance vertical 85 mm Number of poles 5 Clock hour position 6 h Rated frequency – Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download
