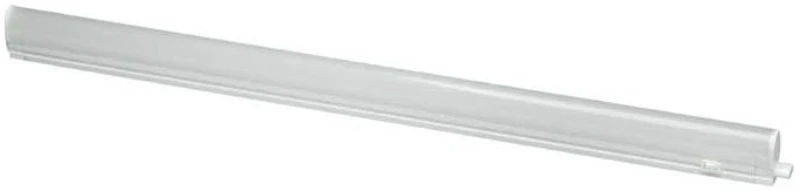

SPEAR 10W CCT2 colour temperature selectable LED linkable st

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Outer diameter – mm Width 22 mm Recess width – mm Height/depth 43 mm Length 620 mm Conductor cross section – mm² Power factor 0.6 Rated life time L70/B50 at 25 °C 30000 h Recess length – mm Maximum system power 9.4 W Luminaire efficacy 123 lm/W Unified Glare Rating (UGR) 26.9 Number of poles – Recess diameter – mm Rated luminous flux acc. IEC 62722-2-1 – lm Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Nominal current 70 – 70 mA Nominal voltage 220 – 240 V Colour temperature 3000 – 4000 K Lamp power – – – W Recess height/depth – mm Number of lamps – With movement sensor No Suitable for suspended mounting No Light source included Yes With air slots No Luminaire may be covered with thermally insulating material No Suitable for recessed mounting No Suitable for light line configuration No With light sensor No Control gear included Yes Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for wall mounting Yes Dimming with push-button No Suitable for emergency lighting No Dimming potentiometer (integrated) No Dimming programmable No Dimming touch and dim No Dimming 1-10 V No Dimming sine wave reduction No Dimming leading edge No Dimming mains voltage modulation No Dimming manufacturer’s proprietary system No Bluetooth operated No Dimming DALI No Dimming trailing edge No Dimming LineSwitch No Dimming RF No Dimming Zigbee No Dimming depending on control gear No Dimming DSI No Dimming 0-10 V No No dimming function Yes Dimming DMX No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2945590
