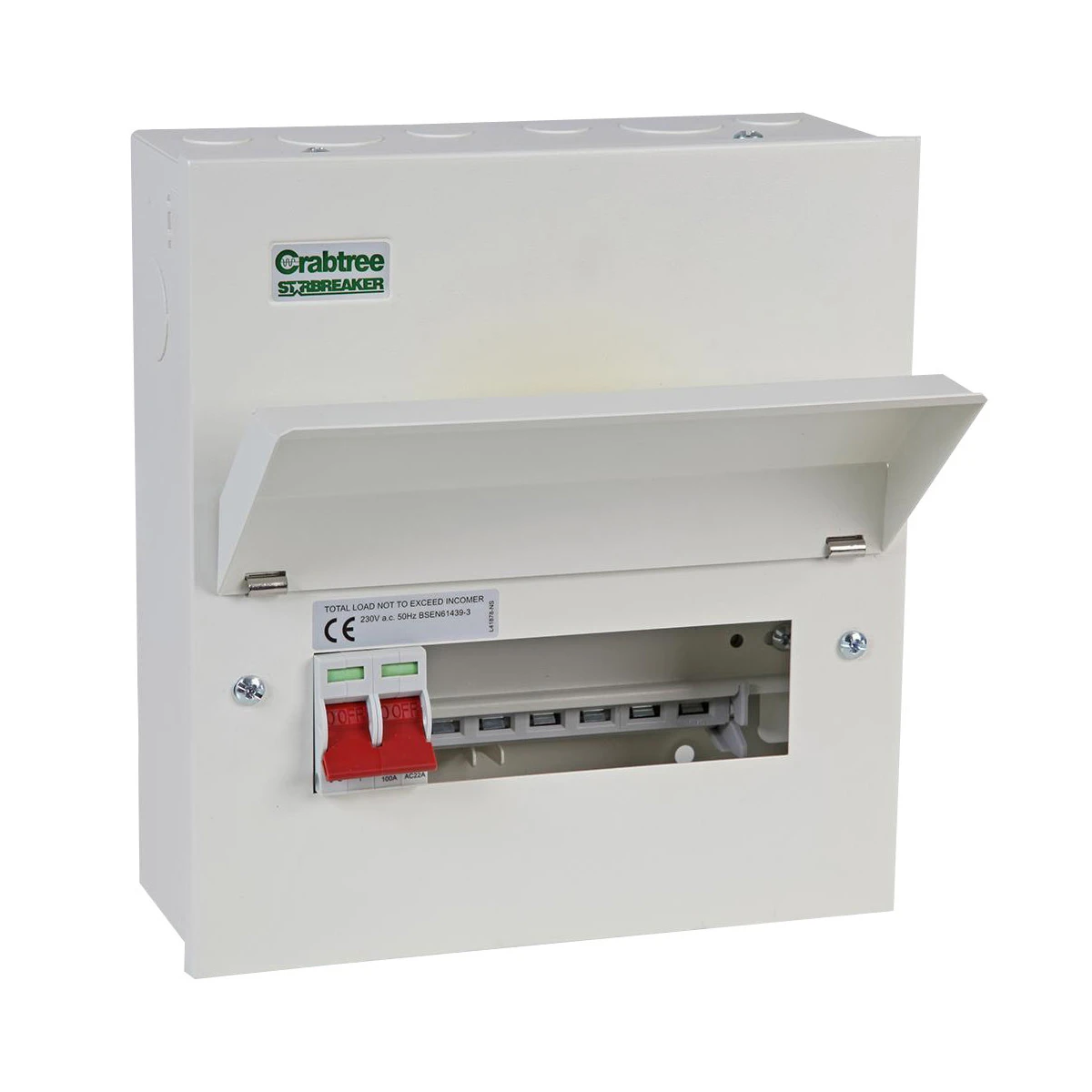

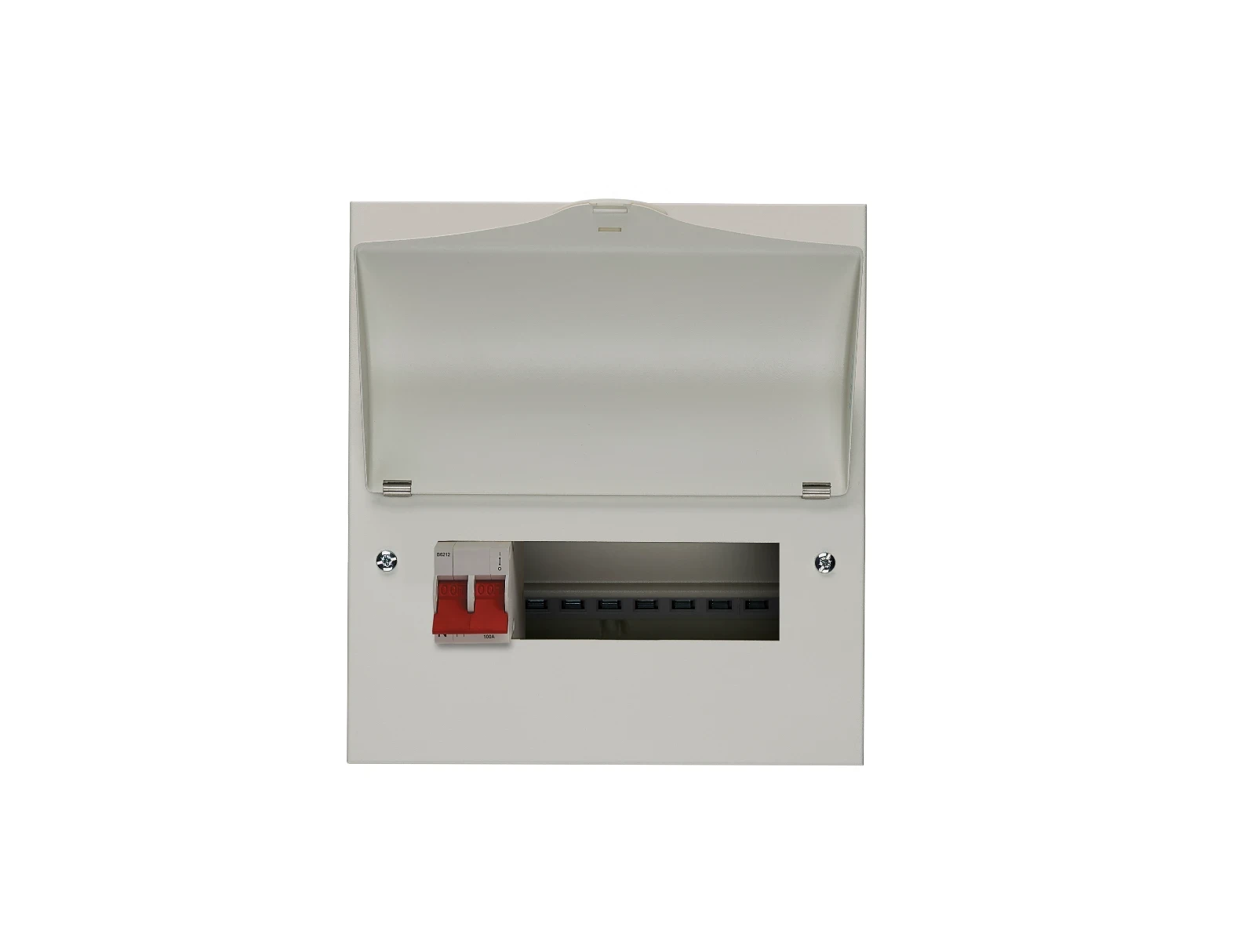

Crabtree 7 Way Consumer Unit Main Switch 100A
£66.96 Incl. VAT
It comes in full metal enclosure, no exposed plastic parts and low smoke fume paint. It has top hinged self-closing, stay shut door and metal hinges. It is designed with cable entry knockouts on all sides and large square knockouts on the rear and mains t · · · 7W Main switch only consumer unit · · Includes a 100A main switch with twin line and neutral supply terminals and a 100A insulated plug in busbar assembly · · Accepts all Starbreaker miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Accepts the Starbreaker miniature type 2 SPD, SBT2SPD3W/1 · · Constructed from a full metal enclosure with curved visor and temporary locking facility · · 25% fewer screw terminals · · 7 SP ways · · Complete with 100A Main switch · · Fully compatible with Arc Fault Detection Devices (AFDD) · · Extra height for added wiring space with single module RCBOs
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board equipped Width 242 mm Height 261 mm Width in number of modular spacings 9 Number of poles main switch 2 Number of phases 1 Total number of groups 1 Main switch rated current 100 A Depth 121 mm With transparent cover No Over voltage-/surge protection No Lockable Yes Extension possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
