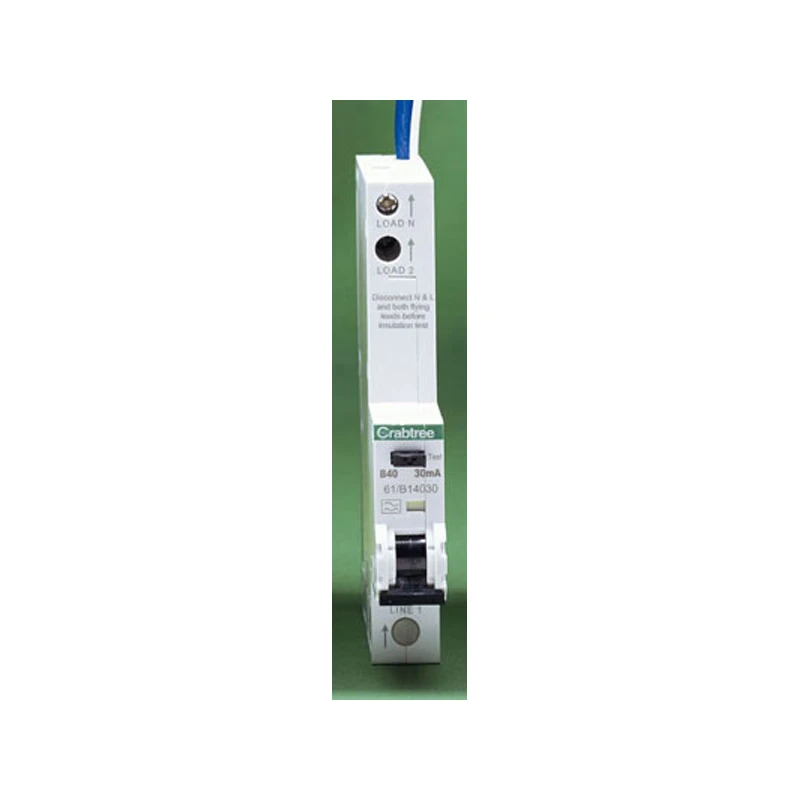

Starbreaker RCBO SP Type B 1 Module 40A 30mA 6kA
Starbreaker RCBO SP Type B 1 Module 40A 30mA 6kA
Starbreaker RCBO SP Type B 1 Module 40A 30mA 6kA - Image 2

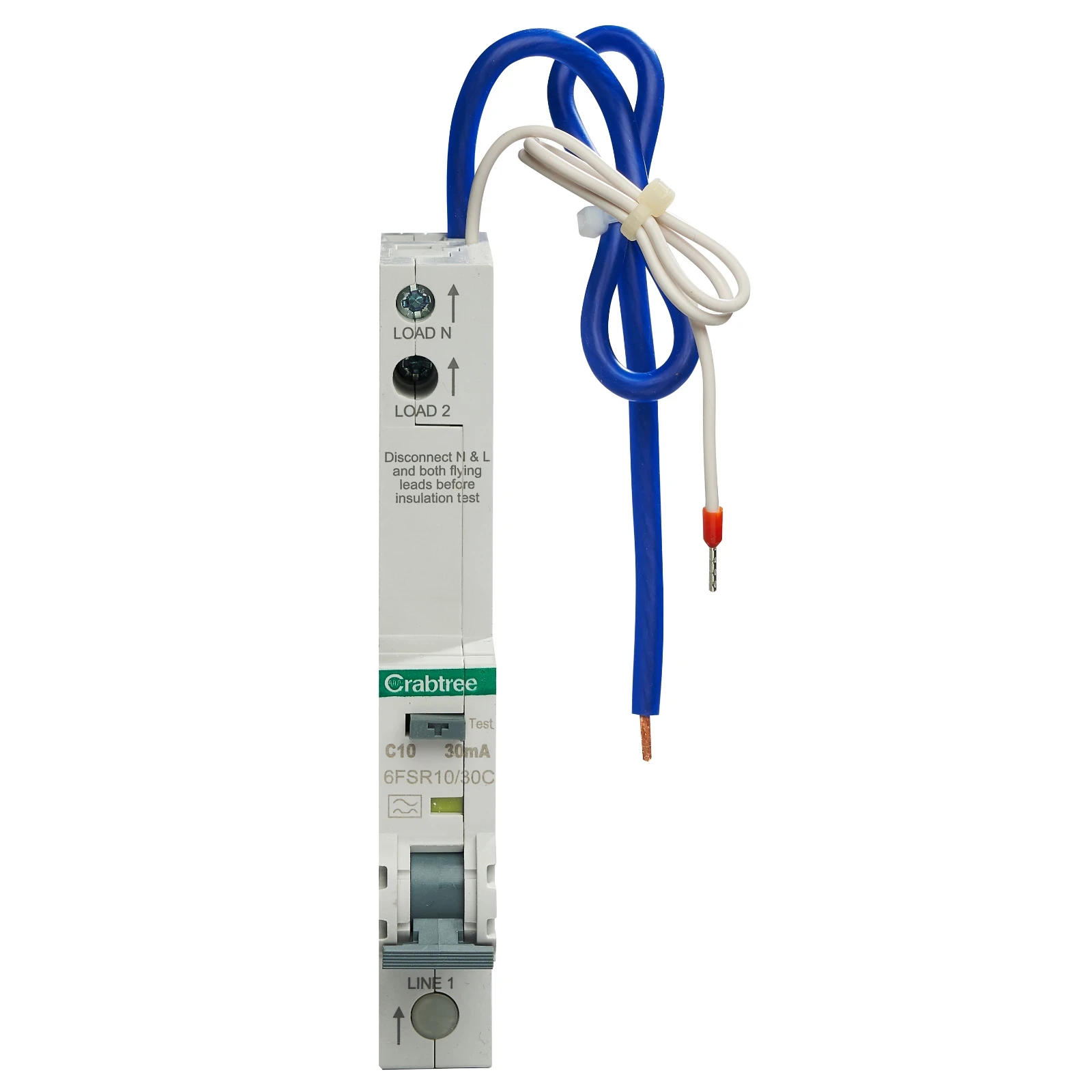

Starbreaker RCBO SP Type B 1 Module 40A 30mA 6kA - Image 3

Starbreaker RCBO SP Type B 1 Module 40A 30mA 6kA

£155.15 Incl. VAT

· · Ambient temperature -25 to 45°C · · 16mm² terminal capacity · · B release characteristic · · Plug in

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 61/B14030 Categories: , , Brand: Part Number: 2500254914

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Over voltage category 3 Number of poles (total) 2 Recess depth 74 mm Rated current 40 A Rated voltage 230 V Width in number of modular spacings 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Current limiting class 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C With interlocking device No Concurrently switching N-neutral No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
