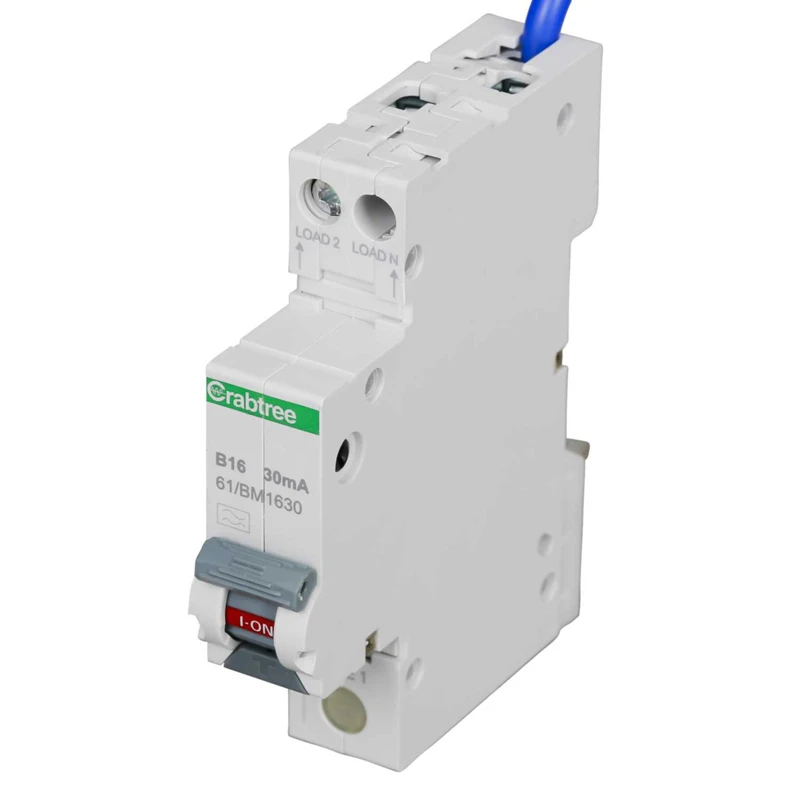

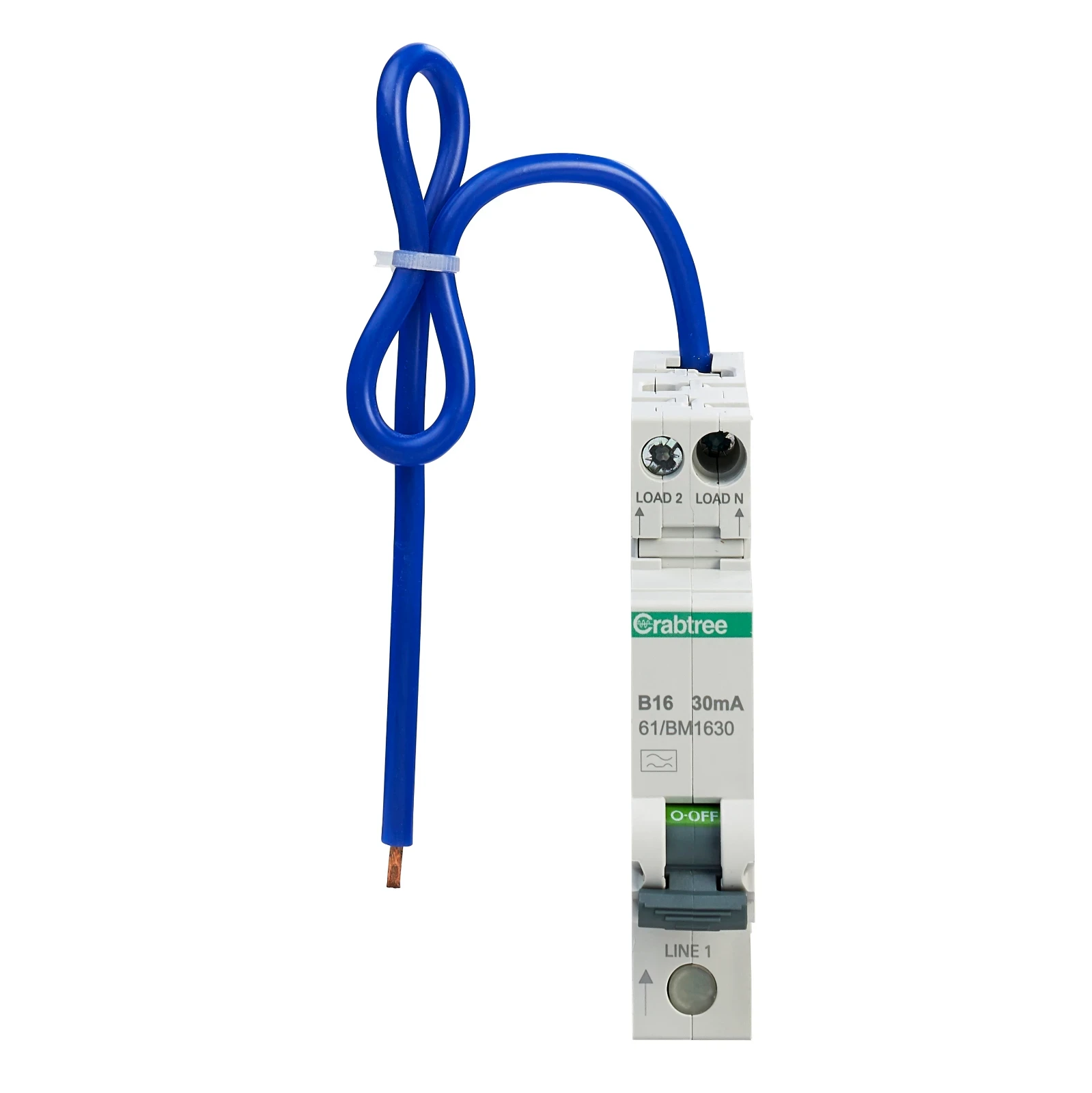

Starbreaker RCBO SP&N Type B Single Module 16A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Recess depth 73 mm Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated current 16 A Rated voltage 230 V Number of protected poles 1 Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Number of poles (total) 2 Over voltage category 3 Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
