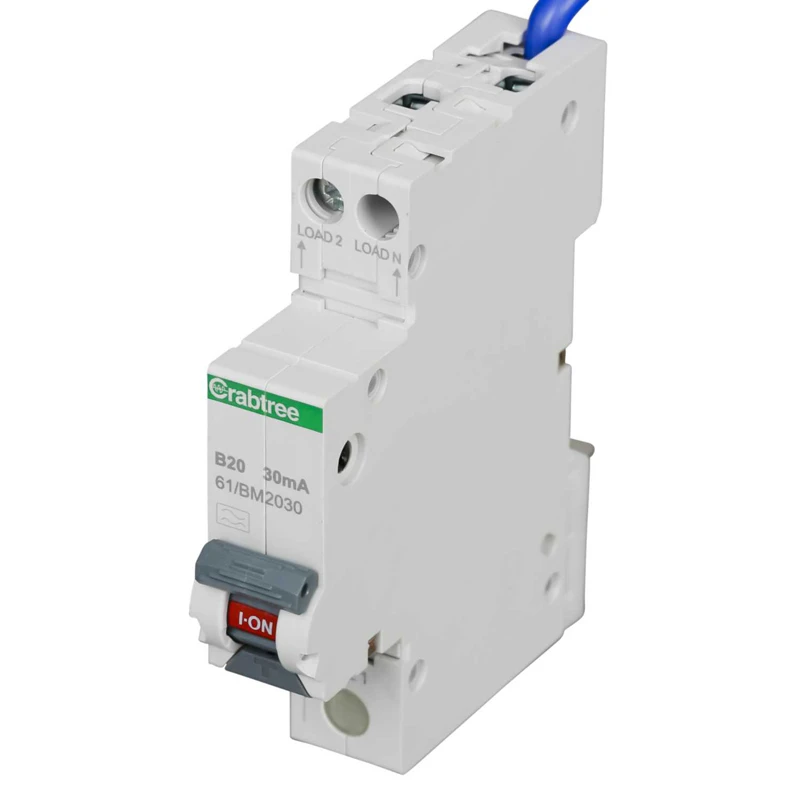

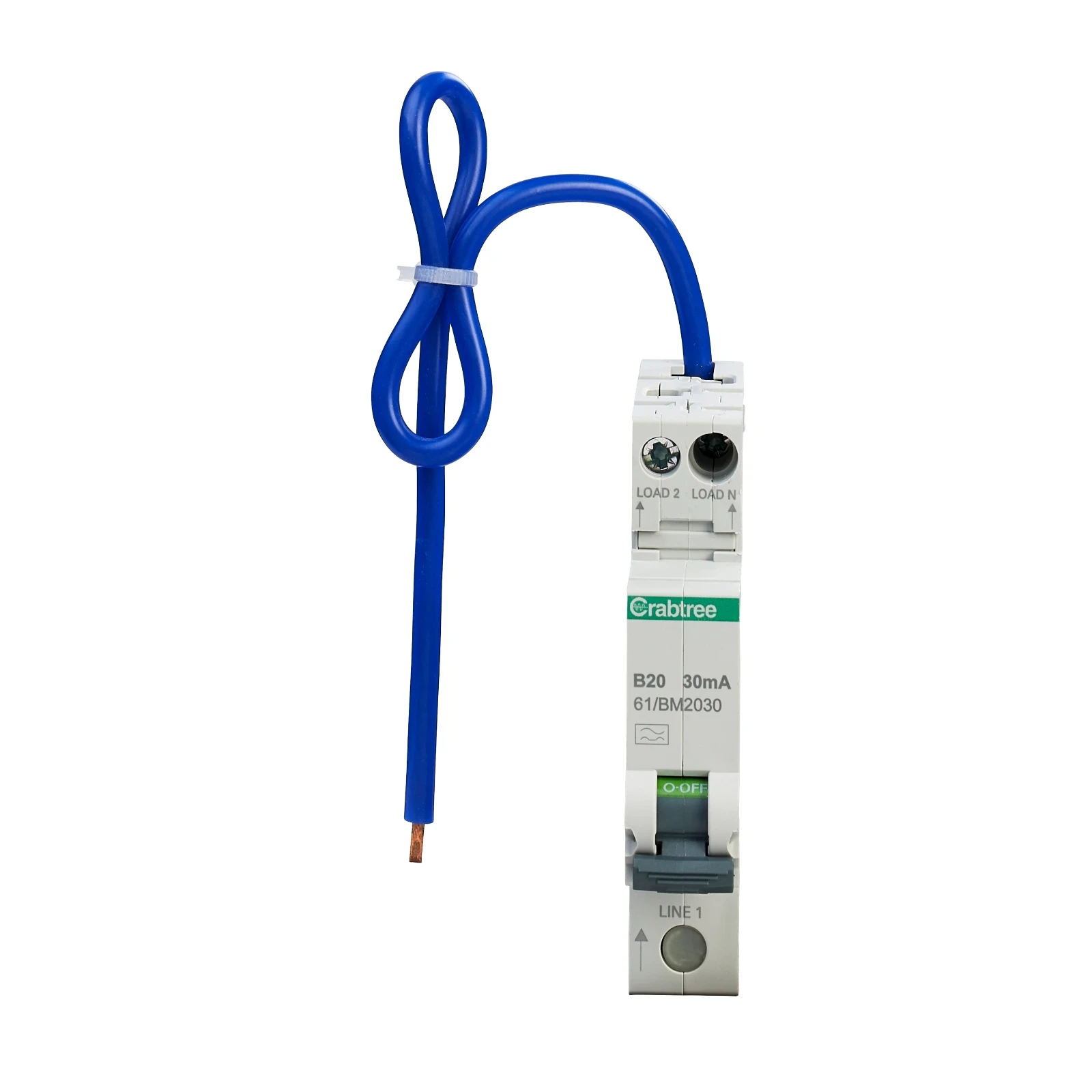

Starbreaker RCBO SP&N Type B Single Module 20A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Recess depth 73 mm Rated voltage 230 V Mounting method DIN rail Current limiting class 3 Rated fault current 0.03 A Number of protected poles 1 Number of poles (total) 2 Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Rated current 20 A Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
