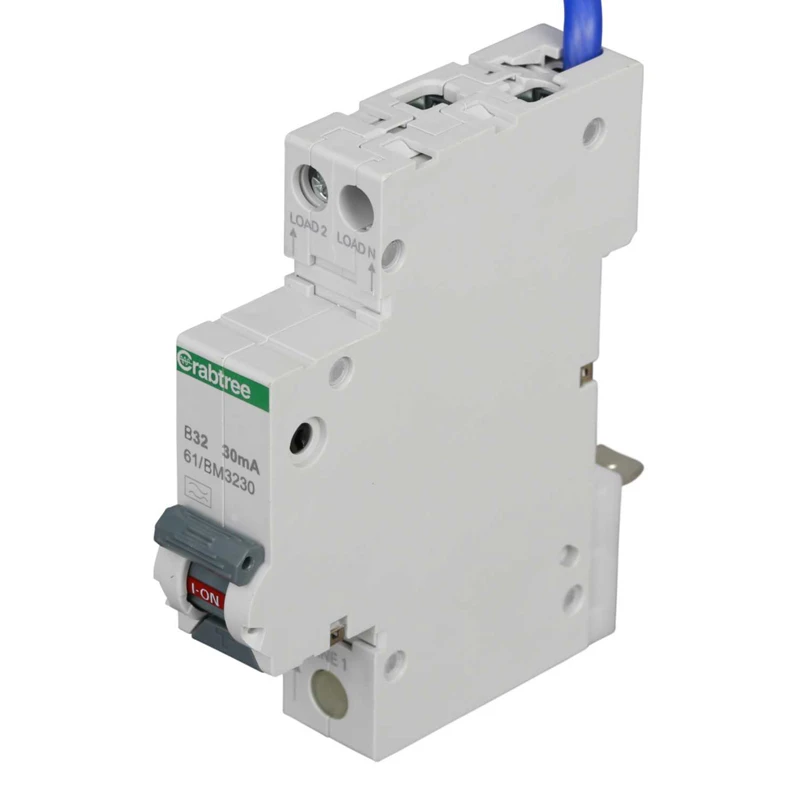

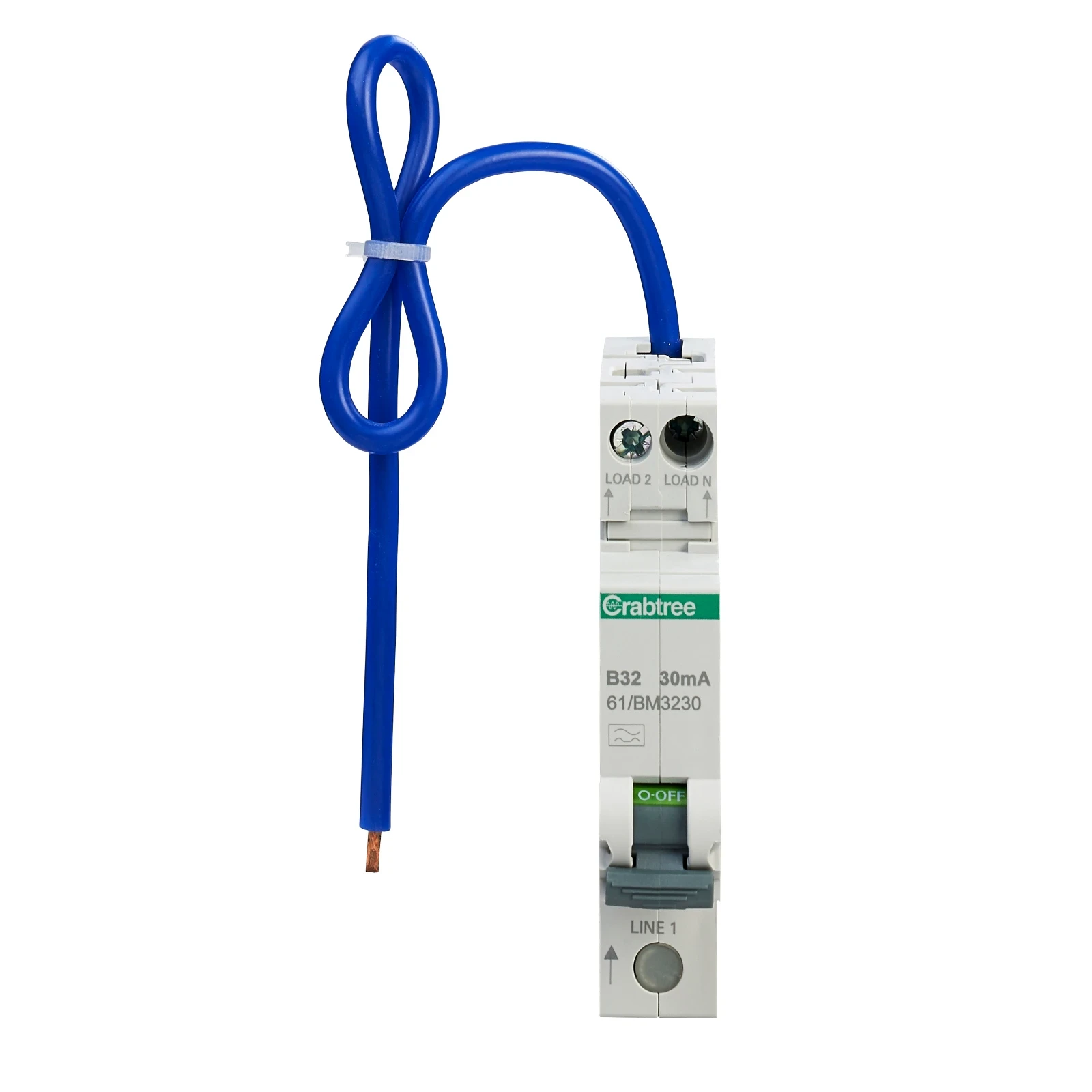

Starbreaker RCBO SP&N Type B Single Module 32A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated voltage 230 V Tripping characteristic (type/curve) B Width in number of modular spacings 1 Over voltage category 3 Number of protected poles 1 Number of poles (total) 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Current limiting class 3 Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Recess depth 73 mm Rated current 32 A Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
