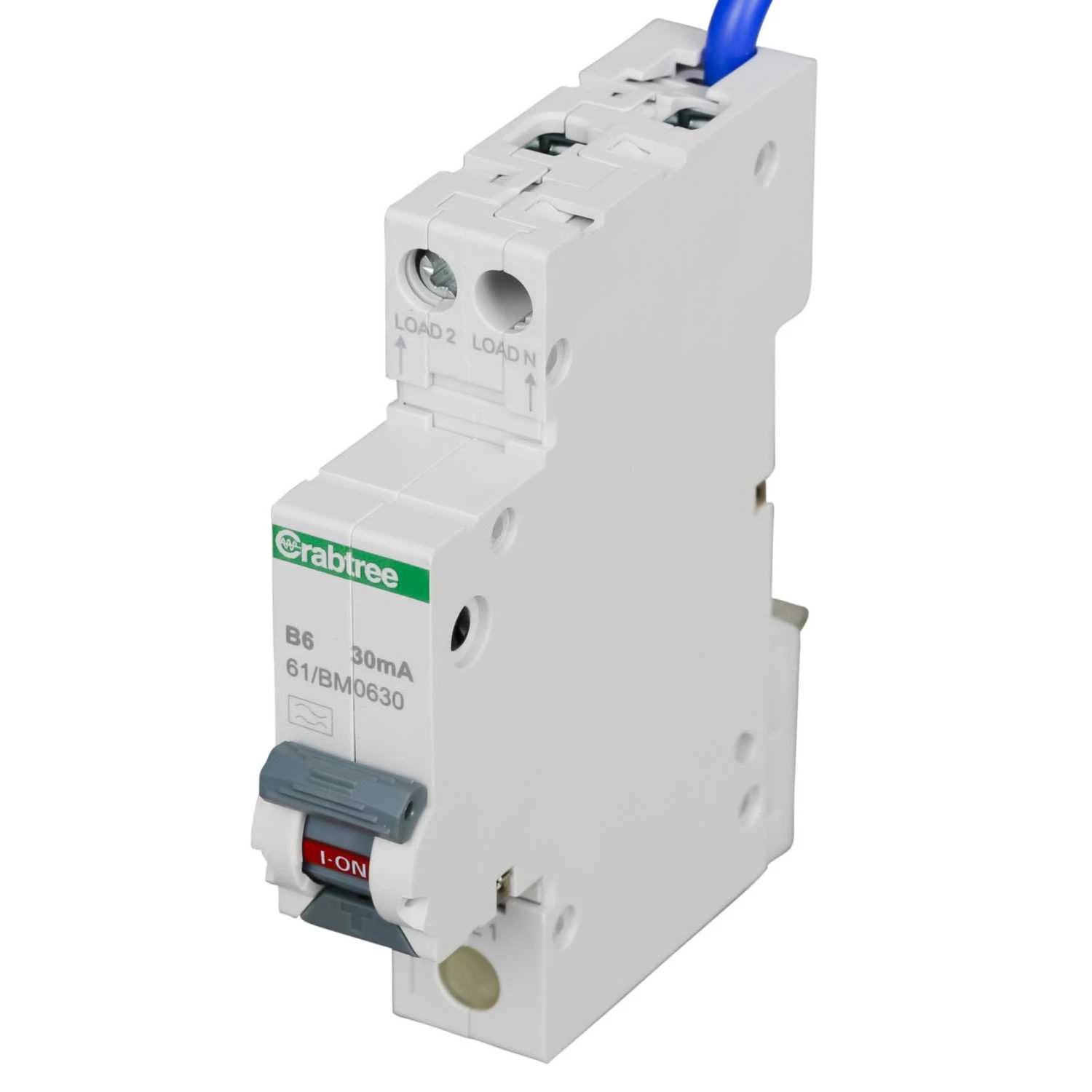

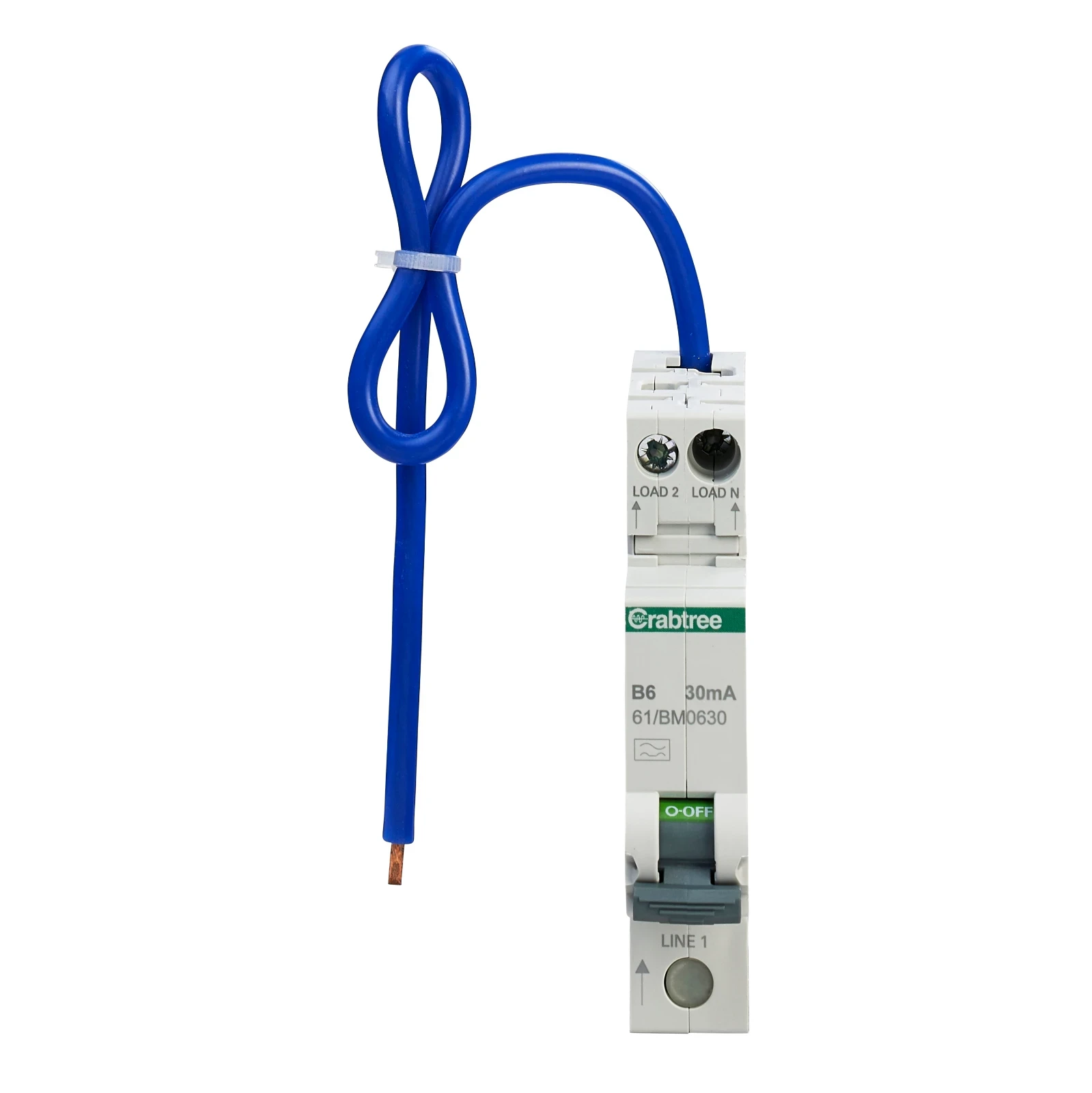

Starbreaker RCBO SP&N Type B Single Module 6A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Recess depth 73 mm Tripping characteristic (type/curve) B Rated current 6 A Rated voltage 230 V Width in number of modular spacings 1 Current limiting class 3 Over voltage category 3 Number of protected poles 1 Rated insulation voltage Ui 400 V Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Rated fault current 0.03 A Rated impulse-withstand voltage (Uimp) 4 kV Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral Yes With interlocking device No · Technical Data Sheet – Click to Download
