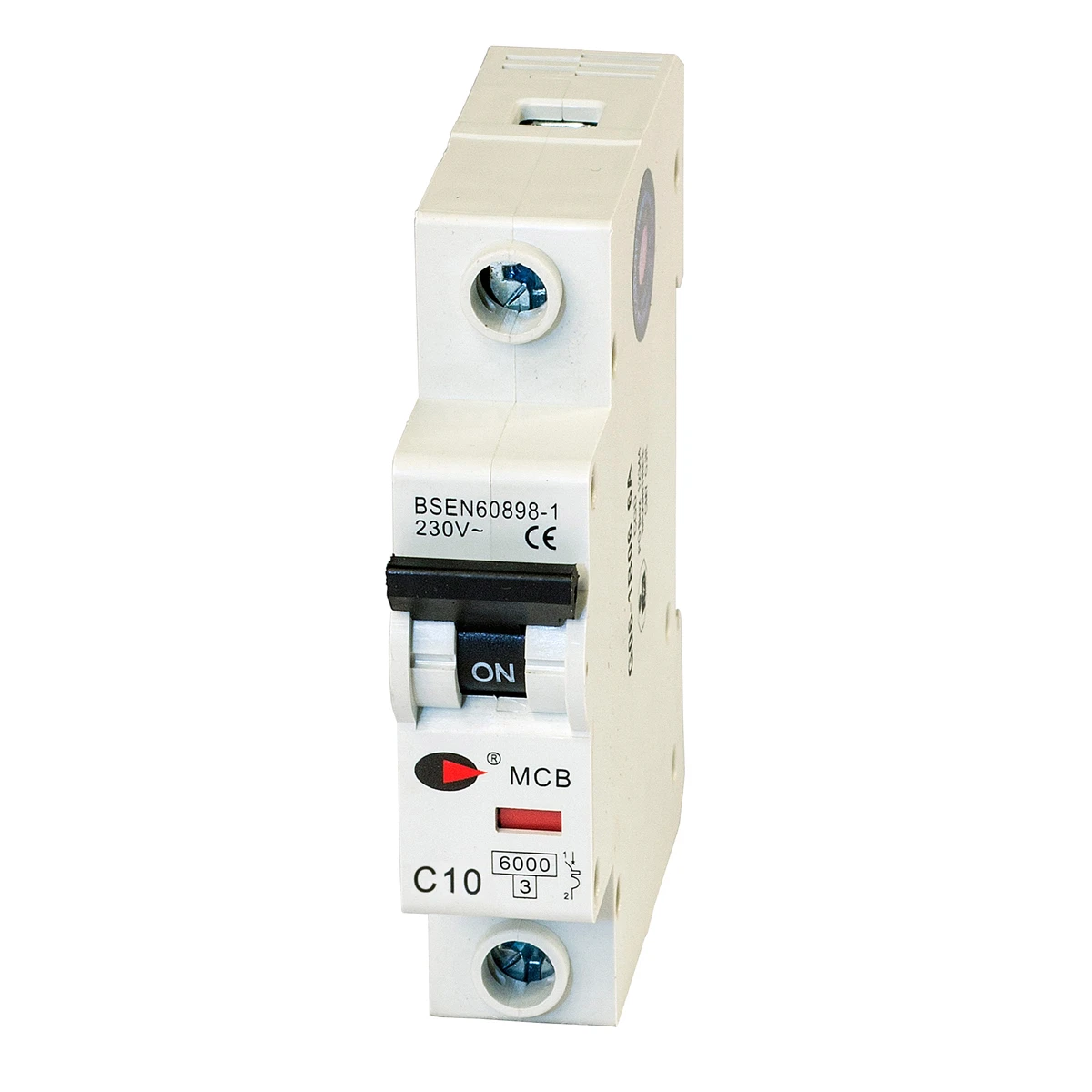

Steeple MCB 10A Single Pole C Type 6kA
Steeple MCB 10A Single Pole C Type 6kA
Steeple MCB 10A Single Pole C Type 6kA - Image 2
Steeple MCB 10A Single Pole C Type 6kA - Image 3
Steeple MCB 10A Single Pole C Type 6kA - Image 4

Steeple MCB 10A Single Pole C Type 6kA

£3.72 Incl. VAT

Designed to be used in our Steeple and Designa Curve consumer units, they are din rail mounted, designed to take a cable size from 1mm to 16mm and have a toggle with on/off indicator to switch the device on and off. Protects against overload, short circuit and infrequent switching of circuits under normal conditions. · · · Current Rating: 10A · · Rated short circuit capacity: 6kA · · Tripping Characteristic: C · · Terminal Tightening Torque: 2.5Nm · · Reference Standard: IEC / BS EN60898-6 · · Voltage 230V · · No. of modules: 1 x 18mm module

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WG06-1C10 Categories: , , Brand: Part Number: 2500970547

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Tripping characteristic (type/curve) Angular Number of poles (total) 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Width in number of modular spacings – Rated voltage 230 V Number of protected poles – Rated insulation voltage Ui – V Current limiting class – Over voltage category – Pollution degree – Frequency 50 – 60 Hz Rated impulse-withstand voltage (Uimp) – kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Recess depth 75.5 mm Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation No Additional equipment possible No
