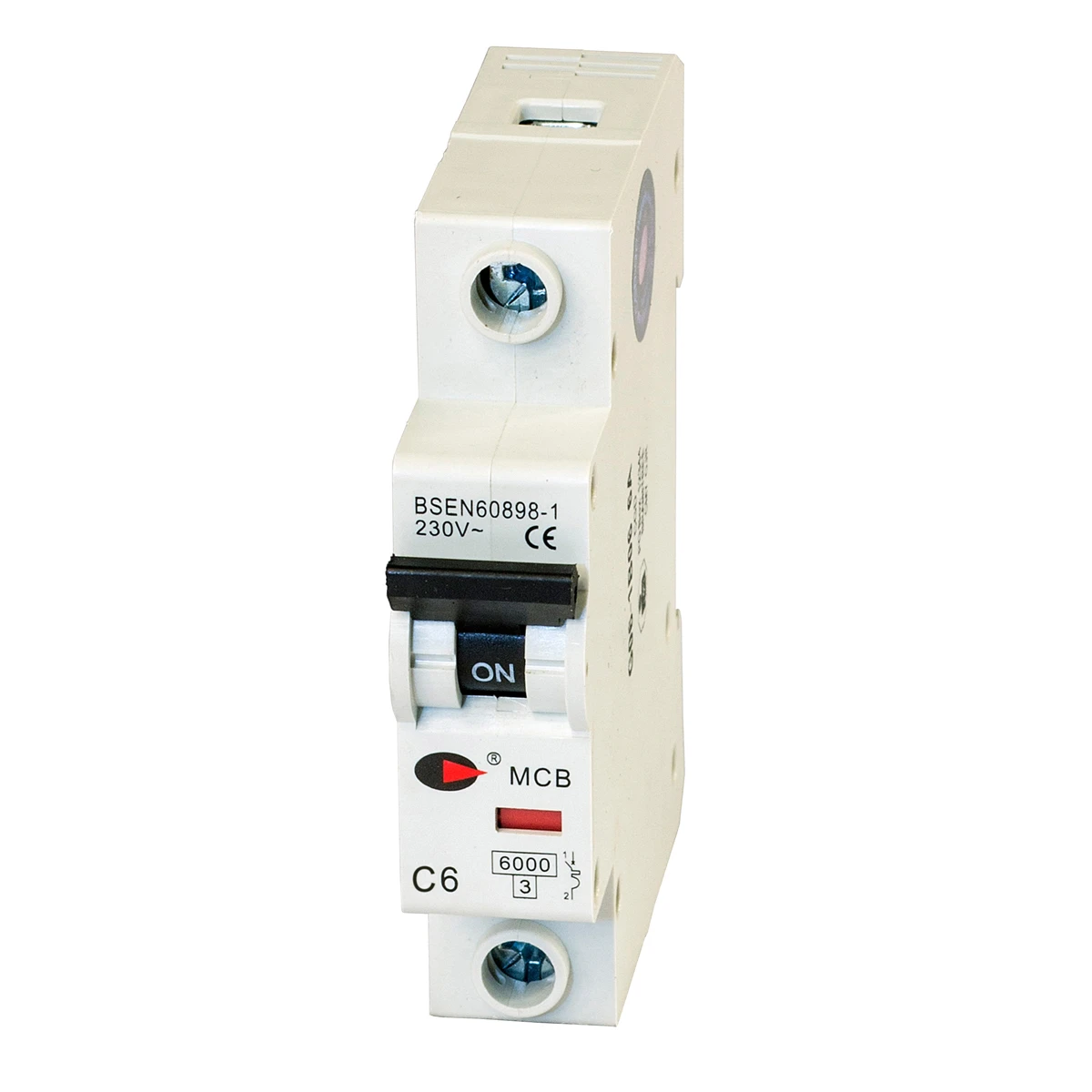

Steeple MCB 6A Single Pole C Type 6kA
£3.67 Incl. VAT
Designed to be used in our Steeple and Designa Curve consumer units, they are din rail mounted, designed to take a cable size from 1mm to 16mm and have a toggle with on/off indicator to switch the device on and off. Protects against overload, short circuit and infrequent switching of circuits under normal conditions. · · · Current Rating: 6A · · Rated short circuit capacity: 6kA · · Tripping Characteristic: C · · Terminal Tightening Torque: 2.5Nm · · Reference Standard: IEC / BS EN60898-6 · · Voltage 230V · · No. of modules: 1 x 18mm module
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Over voltage category – Tripping characteristic (type/curve) Angular Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated impulse-withstand voltage (Uimp) – kV Number of poles (total) 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of protected poles – Rated insulation voltage Ui – V Current limiting class – Pollution degree – Rated voltage 230 V Connectable conductor cross section solid-core – mm² Frequency 50 – 60 Hz Recess depth 75.5 mm Rated current 6 A Width in number of modular spacings – Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation No Additional equipment possible No
