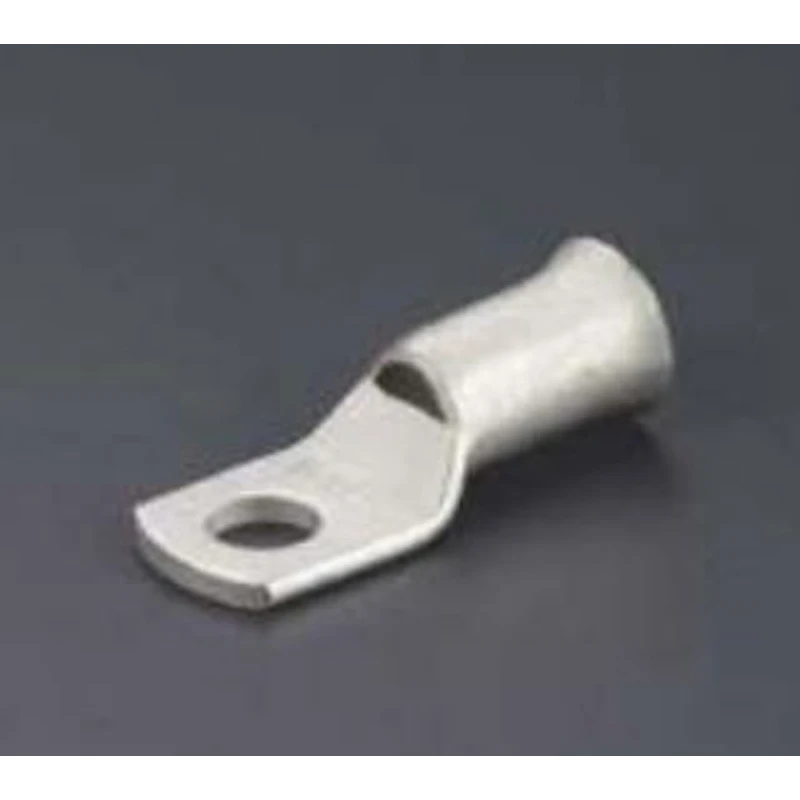

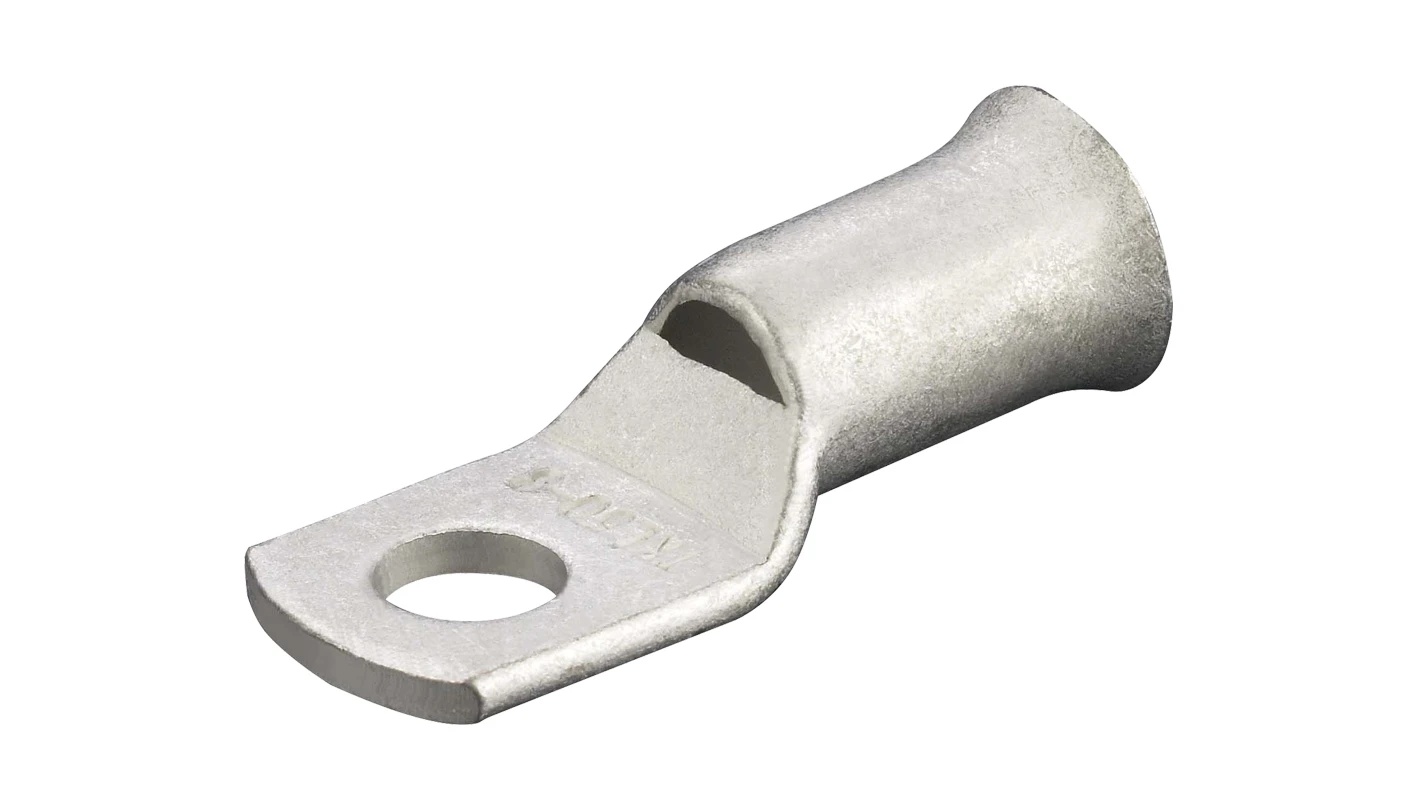

Steeple R10-6 50mm² M10 Cable Lug Terminal
£1.00 Incl. VAT
Used for terminating onto studs or bolts for heavy duty applications · · · Terminal body: Copper · · Plating: Bright electro tin · · Excellent corrosion resistance and conductivity · · Bell mouth for easy cable entry · · Terminal has an inspection hole to ensure cable is fully inserted
1215 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 10.5 Insulated No Nominal cross section 50 mm² · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
