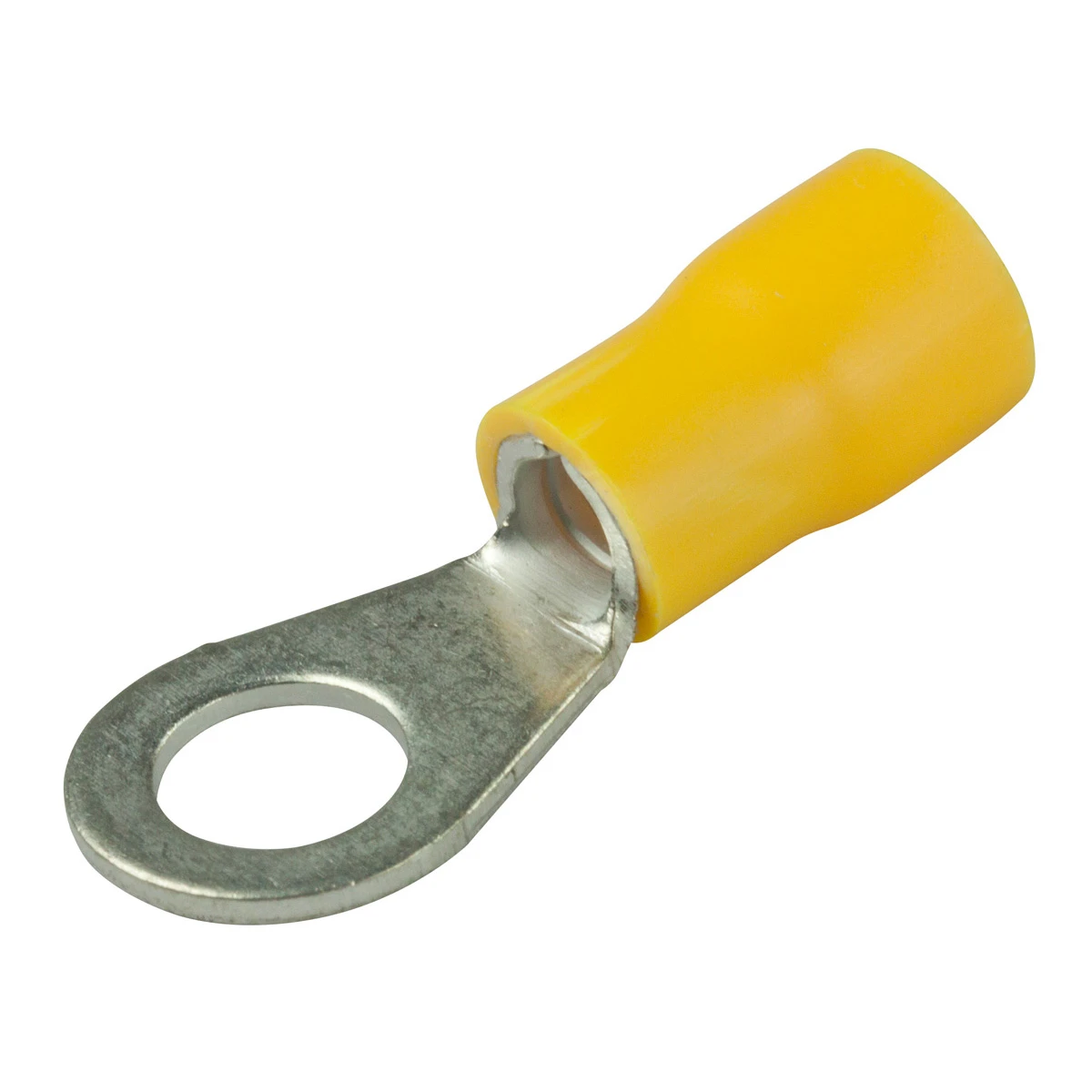

Steeple YR64 6.4mm Insulated Ring Terminal Yellow – 100 Pack

£8.28 Incl. VAT

An insulated ring terminal that connects two or more wires to a single connection point. Allows for easy attachment and removal from connection. · · · 100 Pack · · Insulation: Vinyl · · Conductor: Copper · · Plating: Tin · · Max voltage rating: 600V · · Max. current rating: 48A · · Flared barrel for easy wire insertion · · Colour: Yellow · · Wire Range (mm²): 4.0-6.0 · · Operating temperature: -10°C to +75°C

800 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: YR64 Categories: , , Brand: Part Number: 2500551575

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Surface protection Tinned Stud size (imperial) 1/4 inch Flange shape Ring shape Nominal cross section 4 – 6 mm² Bolt dimension (metric) 6 AWG-range 12 – 10
