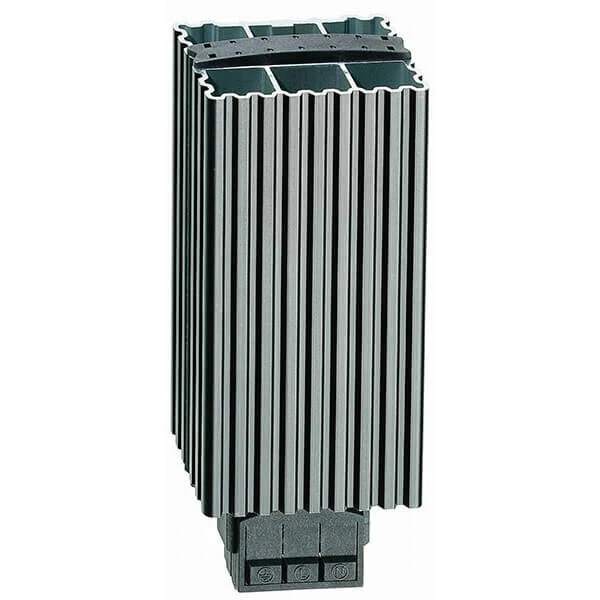

Stego 15W Heater

The heat source in the element consists of a PTC element a semi-conductor that adapts its output to the ambient temperature. The PTC element has a high starting current and provides full output almost immediately. The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element. Thanks to the chimney effect, meaning that the cold air is drawn into the element’s bottom and blows out at the top, good self-circulation is achieved for the heated air. The addition of Pressure Clamp terminals saves time and simplifies the installation · · · Dynamic heating (PTC element) · · Quick connector and quick installation · · Operating voltage 120-240V AC/DC (min. 110V, max. 265V) · · Mounting type clip for 35mm DIN rail, EN 60715 · · Connection 3 pressure clamps for stranded wire 0.5-1.5mm (with wire end ferrule ) and rigid wire 0.5-2.5 · · Operating/storage temp -45 to +70C (-49 to +158F) · · Operating/humidity max. 90% RH (non-condensing) · · IP20 · · Voltage min 110 V ac/dc · · Voltage max 265 V ac/dc
