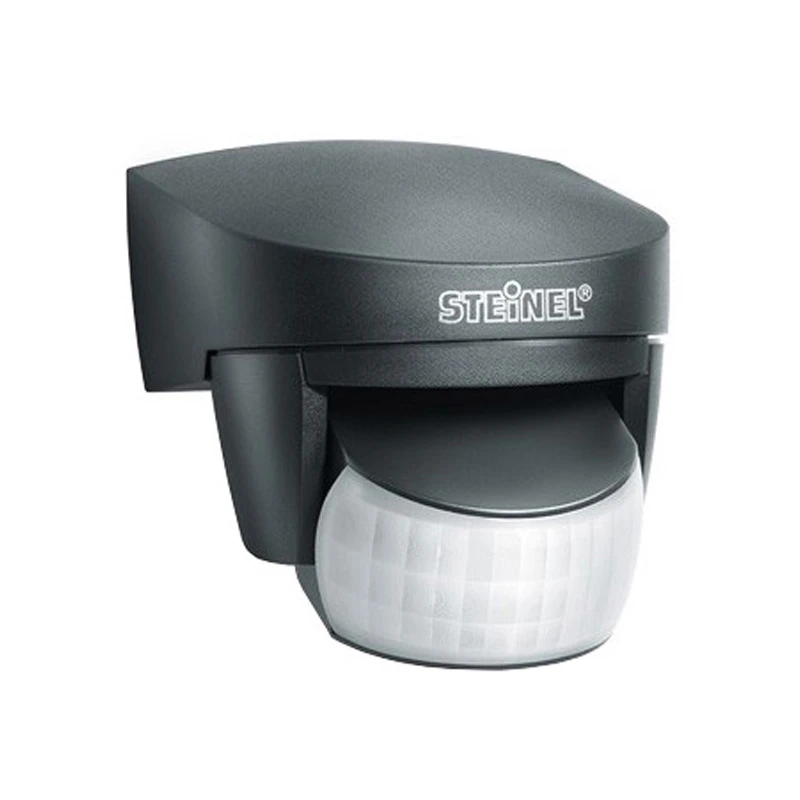

Steinel IS140-2BLK 140-2 PIR Infrared Motion Detector Black
Steinel IS140-2BLK 140-2 PIR Infrared Motion Detector Black
Steinel IS140-2BLK 140-2 PIR Infrared Motion Detector Black - Image 2
Steinel IS140-2BLK 140-2 PIR Infrared Motion Detector Black - Image 3

Steinel IS140-2BLK 140-2 PIR Infrared Motion Detector Black

£72.48 Incl. VAT

Regarded as a classic among infrared motion detectors, it has been further improved with even more horizontal and vertical adjustment angles. Capable of targeted detection along buildings with a 140° angle of coverage, a reach of up to 14m and even more detection levels, the IS 140-2 watches over even greater areas. Further improvements mean its optical system is now fitted with precision, spherical Fresnel lenses that detect people with even greater precision and provide uniquely constant reach. The unit swivels through 180° and tilts through 90° for exact adjustment of the detection zone. The detection zone can also be customised using the shrouds provided. On the IS 140-2, time and twilight threshold are easily adjusted by the control dial underneath the sensor lens. The classic detector, now with even more class. · · · Movement sensor · · 140° with sneak-by protection · · indoors and outdoors · · ip54

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 608811 Categories: , , Brand: Part Number: 2500282860

Description

Technical Specifications  Technical Specifications Motion detector Material qualifier Thermoplastic Colour Black Material Plastic Mounting method Surface mounted Model Movement sensor Surface finish Matt Degree of protection (IP rating) IP54 Sensor type Passive infrared RAL-number (similar) 9005 Min. switch-on time 8 s Max. duty cycle 35 min Optimum mounting height 2 m Depth 95 mm Diameter reach on floor 14 m Nominal voltage 230 V Voltage type AC Detection angle horizontal 0 – 140 ° Frequency 50 – 60 Hz Temperature -20 – 50 °C Height 86 mm Max. reach frontally 14 m Max. switching power 1000 W Max. reach sideways 14 m Switch-off delay 8 s Response value luminosity 2 – 2000 lx Halogen free Yes Transparent No Staircase monitoring No With remote control No Bridging switch No Suitable for wireless transmission No Constant light control No Auxiliary input No Response value sensitivity adjustable No Forced switch off No Animal zone No HVAC-control No With DALI interface No Creep-under protection Yes Dim function with dimmer basic element No Suitable for C-load No Networkable No Remote operation No With signal unit No Teach-function for response value luminosity No Alarm function No Response value luminosity adjustable Yes
