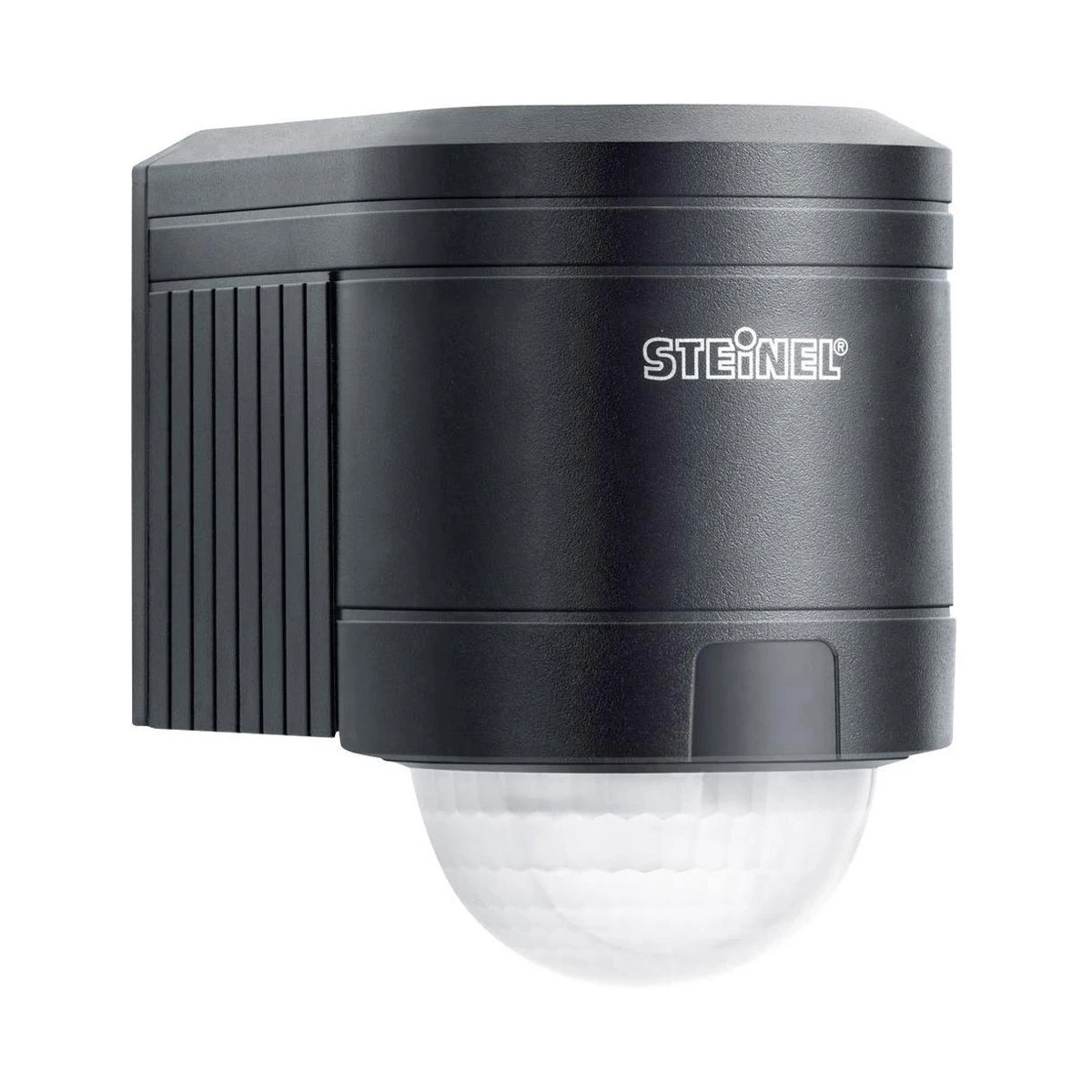

Steinel IS240BLK PIR 1kW Corner Infrared Outdoor Motion Sensor IP54 Black
Steinel IS240BLK PIR 1kW Corner Infrared Outdoor Motion Sensor IP54 Black
Steinel IS240BLK PIR 1kW Corner Infrared Outdoor Motion Sensor IP54 Black - Image 2
Steinel IS240BLK PIR 1kW Corner Infrared Outdoor Motion Sensor IP54 Black - Image 3

Steinel IS240BLK PIR 1kW Corner Infrared Outdoor Motion Sensor IP54 Black

£88.12 Incl. VAT

Combines the latest sensor technology and modern design to create a flexible unit. Suitable for detecting across the fronts of large buildings and external corners, using the included corner mount · · · 240° angle of coverage · · Maximum resistive load of 1000w · · With two highly sensitive infrared detectors positioned to reliably watch over areas upto 230 m² · · When mounted on external corners, wide angle of coverage saves need to invest in a second sensor · · Detection zone can be altered by fitting the shrouds provided · · Both time and twilight settings can be adjusted to suit needs at an easily accessible control dial · · IP54

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 602710 Categories: , , Brand: Part Number: 2500046068

Description

Technical Specifications  Technical Specifications Motion detector Material qualifier Thermoplastic Material Plastic Colour Black Surface finish Matt Model Movement sensor Mounting method Surface mounted Max. duty cycle 15 min Min. switch-on time 10 s Switch-off delay 10 s Depth 100 mm Nominal voltage 230 V Voltage type AC Sensor type Passive infrared Degree of protection (IP rating) IP54 Optimum mounting height 2 m Max. reach sideways 12 m Max. reach frontally 12 m Max. switching power 1000 W RAL-number (similar) 9005 Height 60 mm Temperature -20 – 50 °C Frequency 50 – 60 Hz Transparent No Response value luminosity 2 – 2000 lx Detection angle horizontal 180 – 240 ° Staircase monitoring No Bridging switch No Suitable for wireless transmission No Creep-under protection Yes With DALI interface No Suitable for C-load No With remote control No Networkable No Response value sensitivity adjustable No Forced switch off No Animal zone No HVAC-control No Constant light control No Halogen free Yes Auxiliary input No Alarm function No Response value luminosity adjustable Yes Remote operation No With signal unit No Teach-function for response value luminosity No Dim function with dimmer basic element No
