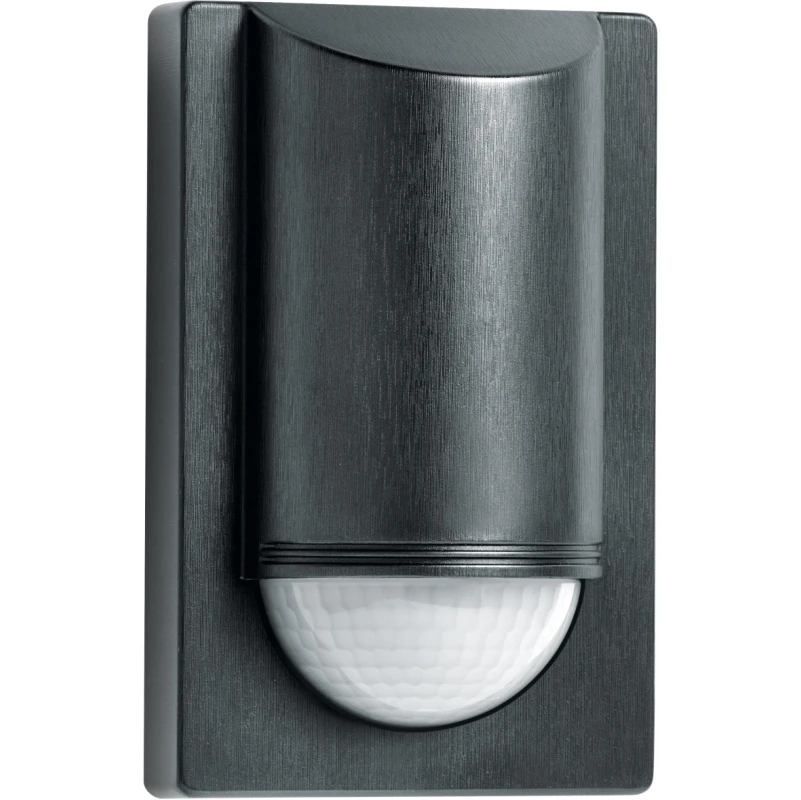

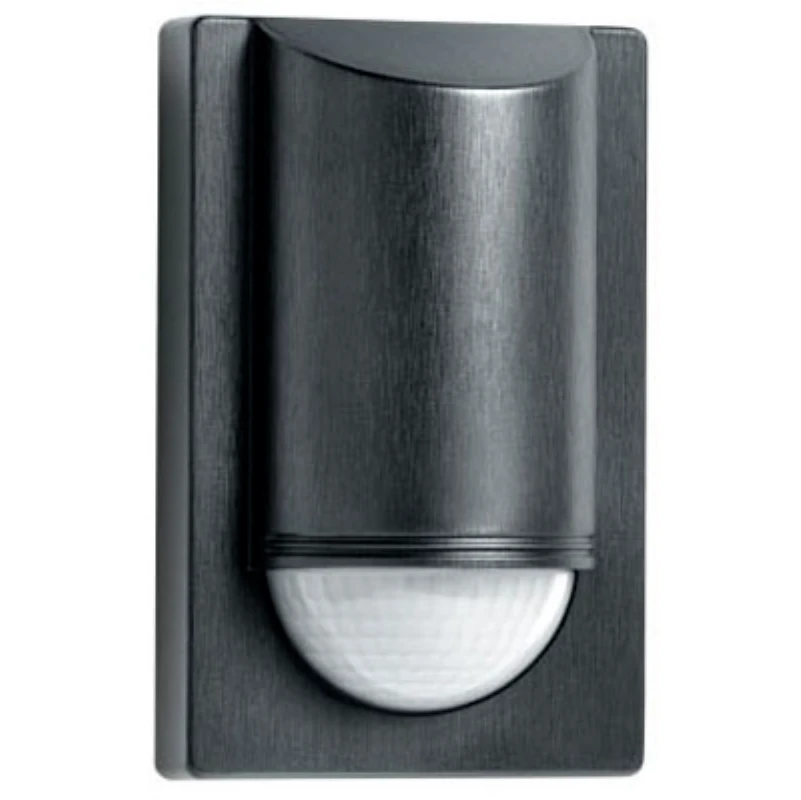

Steinel Sensor Is2180-2 PIR IP54 1000W 180° Black

Description

Technical Specifications  Technical Specifications Motion detector Material Plastic Surface finish Matt Material qualifier Thermoplastic Colour Black Mounting method Surface mounted Degree of protection (IP rating) IP54 Model Movement sensor Voltage type AC RAL-number (similar) 9005 Number of switching zones 504 Diameter reach on floor 12 m Optimum mounting height 2 m Min. switch-on time 10 s Max. duty cycle 15 min Max. reach sideways 12 m Max. reach frontally 12 m Switch-off delay 10 s Max. switching power 1000 W Frequency 50 – 60 Hz Response value luminosity 2 – 2000 lx Detection angle horizontal 90 – 180 ° Creep-under protection Yes Staircase monitoring No Bridging switch No Suitable for wireless transmission No With remote control No Response value sensitivity adjustable No Constant light control No HVAC-control No Animal zone No Networkable Yes Suitable for C-load No Remote operation No With signal unit No Teach-function for response value luminosity No Halogen free Yes Transparent No Auxiliary input No Forced switch off No Dim function with dimmer basic element No Alarm function No Response value luminosity adjustable Yes
