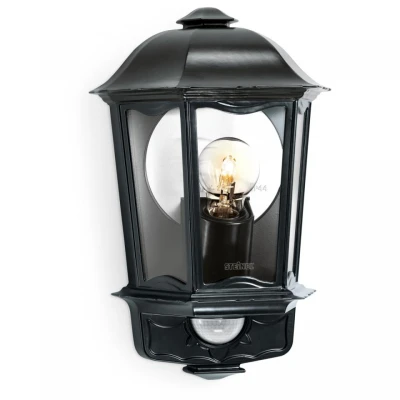

Steinel Wall Lighting L190S PIR Sensor E27 IP44 100W 180° Black Alu

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Impact resistance (IK rating) IK03 Protection class according to IEC 61140 II Light diffuser type None Type of grid None Control gear Not required Lamp cap/base E27 Cover material Glass transparent Housing colour Black Colour of light White Beam angle Extreme wide beam >80° Filament test according to IEC 60695-2-11 650 C – 30 s Light distribution Symmetric Type of cabling Suitable for through wiring Light outlet Direct Voltage type AC Housing material Aluminium Conductor cross section 1.5 mm² Height/depth 335 mm Length 147 mm Width 217 mm Number of poles 2 Number of lamps 1 Maximum system power 100 W Lamp power 100 W Rated ambient temperature acc. IEC62722-2-1 -20 °C Light source included No Control gear included Yes With air slots No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming RF No Dimming touch and dim No Dimming Zigbee No With light sensor Yes With movement sensor Yes Suitable for ceiling mounting No Suitable for suspended mounting No Suitable for recessed mounting No Suitable for surface mounting Yes Suitable for light line configuration No Suitable for emergency lighting No Dimming with push-button No Dimming manufacturer’s proprietary system No Dimming trailing edge No Dimming mains voltage modulation No Dimming 1-10 V No Dimming 0-10 V No Dimming leading edge No Dimming programmable Yes Dimming DSI No Dimming potentiometer (integrated) No Dimming DALI No Dimming DMX No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
