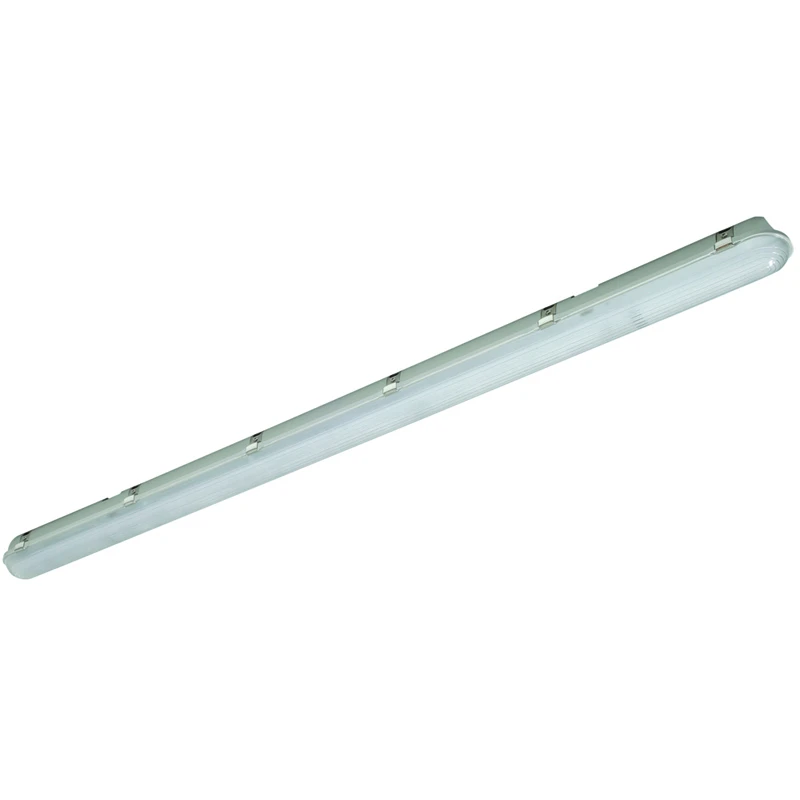

SULTAN 1X40W LED corrosion proof, IP65, 5ft, Grey, 5000K,eme

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Outer diameter – mm Conductor cross section – mm² Length 1530 mm Width 85 mm Power factor 0.97 Rated life time L70/B50 at 25 °C 50000 h Unified Glare Rating (UGR) 24 Total harmonic distortion 16.3 Recess diameter – mm Number of poles – Height/depth 77 mm Recess width – mm Luminaire efficacy 105 lm/W Recess length – mm Rated luminous flux acc. IEC 62722-2-1 – lm Nominal voltage 220 – 240 V Lamp power – – – W Number of lamps – Recess height/depth – mm Maximum system power 41.3 W Nominal current 190 – 190 mA Colour temperature 5000 – 5000 K Rated ambient temperature acc. IEC62722-2-1 -10 – 40 °C Suitable for suspended mounting Yes With light sensor No With movement sensor No Suitable for wall mounting Yes Control gear included Yes Light source included Yes Dimming touch and dim No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No Suitable for light line configuration No Suitable for surface mounting No Suitable for emergency lighting No Suitable for recessed mounting No Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Dimming 1-10 V No Dimming potentiometer (integrated) No No dimming function Yes Dimming programmable No Dimming trailing edge No Dimming RF No Dimming LineSwitch No Dimming DSI No Dimming sine wave reduction No Dimming depending on control gear No Luminaire may be covered with thermally insulating material No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming 0-10 V No Bluetooth operated No Dimming DALI No Dimming with push-button No Dimming leading edge No Dimming DMX No Dimming Zigbee No · Technical Data Sheet – Click to Download
