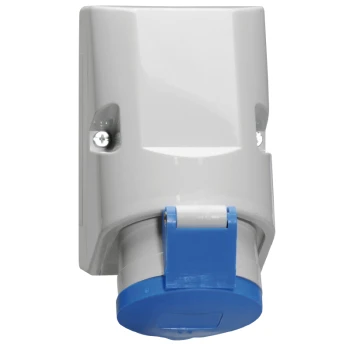

Surface Mounting Socket 32A 230V 3 Pole IP44
£48.61 Incl. VAT
32A 230V 3 Pole Ip44 6H With Screw Terminals Surface Mounting Socket Outlets.M25 Top Entry and 2 x M25 Bottom Entry,Enclosure made of Polyamide.The contact carrier is made of polyamide, the contacts are brass with a maximum conductor size of 10,0 mm.The cable entry is one at top open and two at bottom closed,lower part of housing is rotatable by 180°. · · · Amp Current 32A · · Voltage 230V · · Pins 2P+E · · IP Rating IP44
4 in stock
Description
Technical Specifications Technical Specifications CEE socket outlet Connection system Screwed terminal Material Plastic Degree of protection (IP rating) IP44 Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Surface finish contacts Untreated Clock hour position 6 h Number of poles 3 Contact material CuZn Type of fastening Inner lying mounting Model Surface mounted Identification colour Blue Cable entry Swivel IEC-amperage 32 A Amperage acc. UL/CSA (for UL-version) – A RAL number 5015 Insulated mounting No Military model No · Technical Data Sheet – Click to Download
