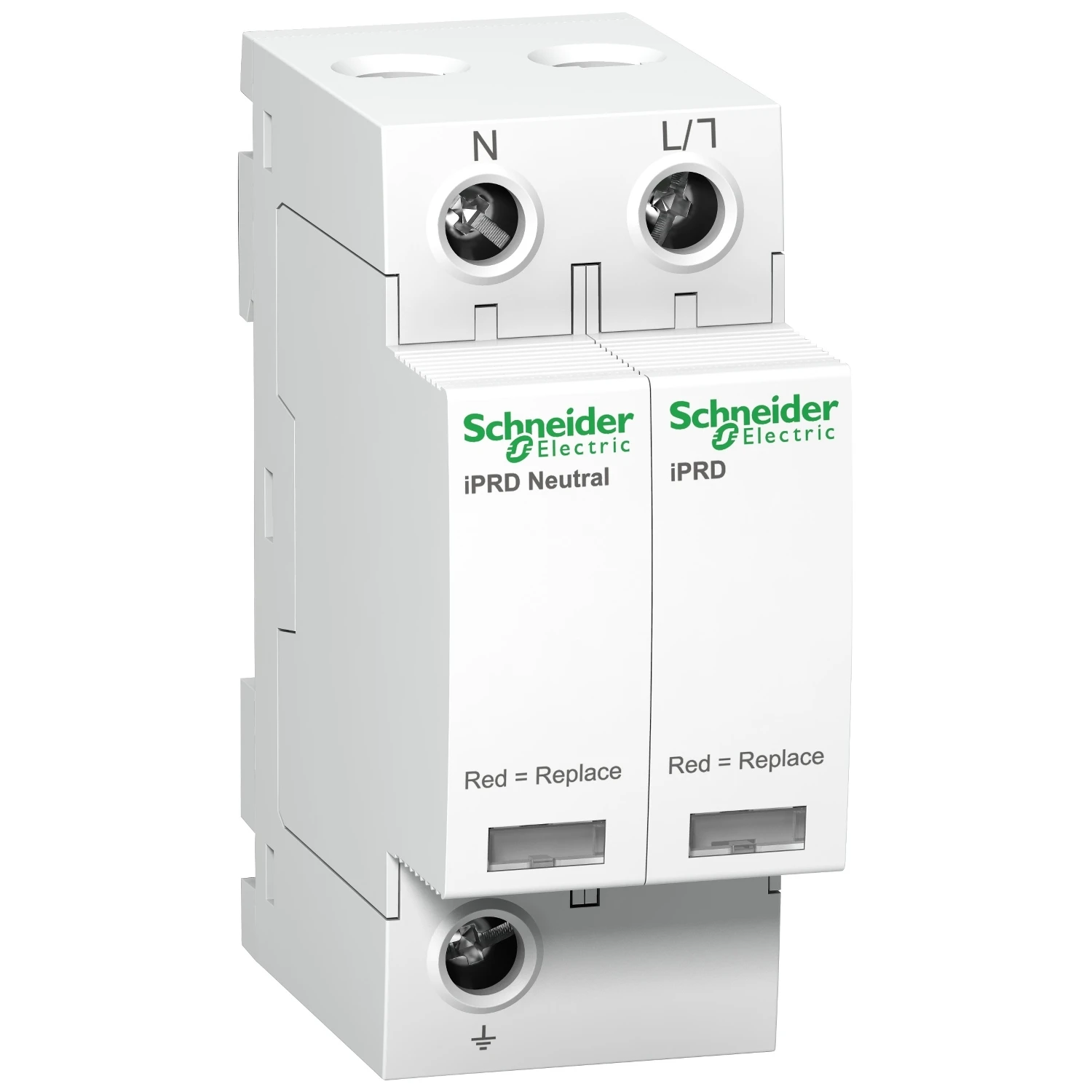

Surge Arrester IPrd 40R Single Pole+Neutral Eutral Remote Transfer 40Ka 350V

This Acti9 iPRD surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level in incoming panel board. It offers remote reporting of the -cartridge must be changed- message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.4kV in common mode (N/PE) and 1.6kV in differential mode (L/N) . The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 220g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standard. · · · 1 Group of 8 Digital Channels · · 7 Digital input / output channels · · Web Server BMS controller compatible · · The robustness of the connections · · Remote monitoring of protection device state · · The Uc maximum continuous operating voltage in DM common mode (between phase and neutral) is 260VAC. · · The Uc maximum continuous operating voltage in DM differential mode (between earth and neutral) is 350VAC. · · The Up Voltage protection level in CM common mode (between phase and neutral) is 1.4kV.
