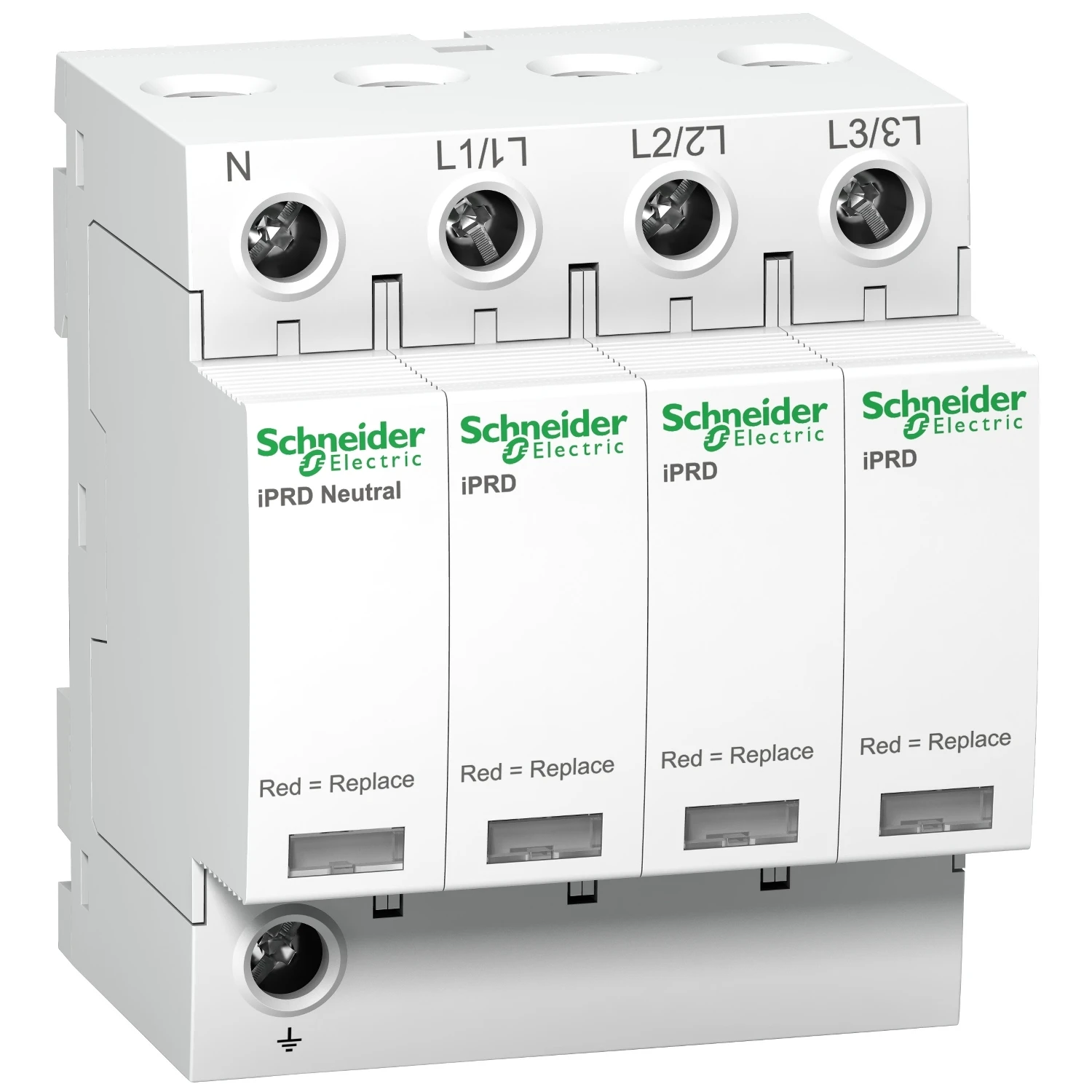

Schneider Electric Surge Arrester IPrd 65R Triple Pole+Neutral Remote Transfer 65Ka 350V
£1,039.80 Incl. VAT
This Acti 9 iPRD65r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti 9 iPRD65r is compatible with TT and TN-S earthing system. The Imax rated discharge current is 65kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in DM differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in CM common mode (between neutral and earth) is 260VAC. The Up Voltage protection level in DM differential mode (between neutral and earth) is below or equal to 1.5kV. The Up Voltage protection level in CM common mode (between neutral and earth) is below 1.4kV. The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degrre of protection is IP20. This product complies with IEC 61643-11: 2011 and EN61643-11: 2012 Type 2 standards. · · · This Acti9 iPRD65r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. · · This Type 2 device is recommended for very high risk level and incoming panel board. · · The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. · · It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. · · The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti 9 iPRD65r is compatible with TT and TN-S earthing system. · · The Imax rated discharge current is 65kA. The In nominal discharge current is 20kA. · · The Uc maximum continuous operating voltage in DM differential mode (between phase and neutral) is 350VAC. · · The Uc maximum continuous operating voltage in CM common mode (between neutral and earth) is 260VAC. · · The Up Voltage protection level in DM differential mode (between neutral and earth) is below or equal to 1.5kV. · · The Up Voltage protection level in CM common mode (between neutral and earth) is below 1.4kV.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Surge protection device for power supply systems Nominal discharge surge current 8/20 µs (In) 20 kA Nominal voltage AC 350 V Max. voltage (Uc) 350 V Voltage protection level 1.5 kV Number of conductors (without earthing) 3 Nominal voltage DC – V Max. PV-voltage – V Voltage protection level L-N 1.5 kV Max. conductor cross section solid (solid, stranded) 35 mm² Max. continuous voltage DC – V Voltage protection level N-PE 1.5 kV Max. conductor cross section flexible (fine-strand) 35 mm² Max. discharge surge current (8/20) 65 kA Short-circuit breaking capacity (Isccr) – kA System configuration DC No System configuration TN-C No System configuration TN-S Yes System configuration IT No System configuration TN No System configuration TT Yes System configuration other No With remote signalling contact Yes Integrated backup fuse Yes Type / Test class 2 Yes System configuration TN-C-S No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224955
