Swifts Legrand Bend 90° Angle Flat 300mm Hot Dipped Galvanised for Cable Tray
Swifts Legrand Bend 90° Angle Flat 300mm Hot Dipped Galvanised for Cable Tray
Swifts Legrand Bend 90° Angle Flat 300mm Hot Dipped Galvanised for Cable Tray - Image 2
Swifts Legrand Bend 90° Angle Flat 300mm Hot Dipped Galvanised for Cable Tray - Image 3

Swifts Legrand Bend 90° Angle Flat 300mm Hot Dipped Galvanised for Cable Tray

£67.54 Incl. VAT

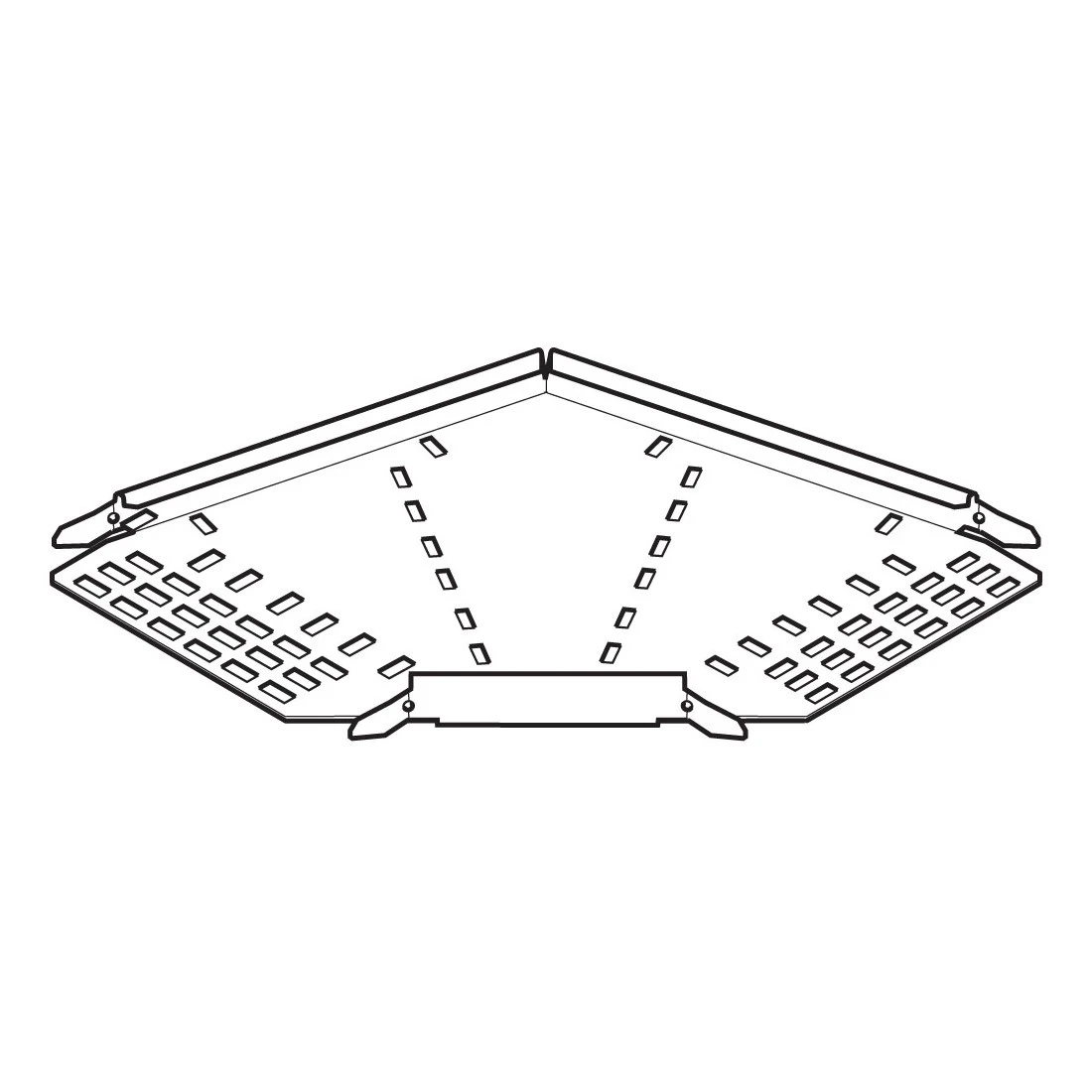

MRFB300G is a 90° Flat Bend made of hot dipped galvanised steel finish and has integral coupling tabs. It is suitable for use with the 300mm Swift cable tray systems. · · · Medium duty capability · · Simple Installation · · 90° Angle

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MRFB300G Categories: , , Brand: Part Number: 2500025045

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Material Steel Construction type Rigid bend Change of direction Horizontal Colour Grey Model Integrated coupler Deflection (angle) 90° Angle 90° Surface protection Hot dip galvanized Material thickness 1.2 mm Inner radius 125 mm Suitable for cable tray width 300 mm Stainless steel, pickled No NATO-mounting holes No Side wall perforation No Working temperature -20 – 120 °C RAL number – Suitable for cable tray height 25 mm Mounting perforation in base Yes With cover No Suitable for circuit integrity No · Technical Data Sheet – Click to Download
