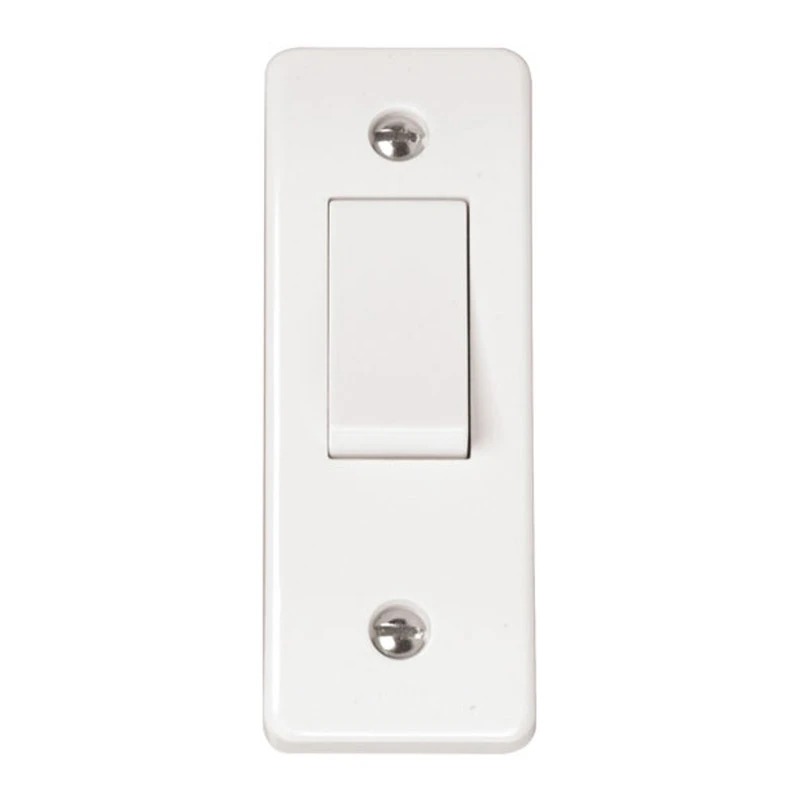

Switch 1 Gang 2 Way Architrave 10A White
£2.40 Incl. VAT
This switch features simple, single screw fixing of modules offers the simplest possible means of installing and replacing modules. · · · 10AX for inductive loads · · 3.5mm ø terminal size · · Torque: 0.4Nm · · 2 x 2.5mm²/4 x 1.5mm² cable size · · Low Voltage Directive 2006/95/EC · · Modified ISO 22196 · · BS EN 60669-1:1999 + A1:2002 + A2:2008
76 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Material Plastic Mounting method Module frame/grid Type of fastening Engage (snap) Colour White Colour of rocker/switch operator White Surface finish Glossy Wiring system Two-way switch Number of module spaces (modular system) 1 Rated current 10 A Width of device 85 mm Height of device 30 mm Depth of device 9.5 mm · Technical Data Sheet – Click to Download
