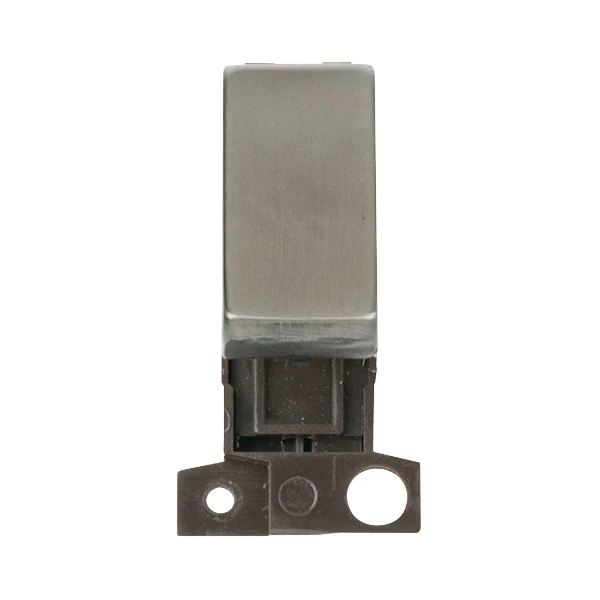

Switch 2 Way Module 10A Stainless Steel
£2.18 Incl. VAT
Scolmore MiniGrid Switch Module with stainless steel finish. This MiniGrid module is easily and quickly exchanged or mounted onto unfurnished plates by means of a simple single screw fixing. · · · No. of ways 2 · · Load Rating 10AX (Suitable For Inductive Loads) · · Maximum Voltage 250V · · Back Box Depth dependent on plate used · · Dimensions 25mm (W) x 53mm (H) x 20mm (D) · · Aperture Dimensions 16mm (W) x 31.5mm (H) · · Operational Temperature -5C to +40C · · IP20
20 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Method of operation Rocker Assembly Basic unit with central cover plate Mounting method Flush mounted Material Metal Material qualifier Stainless steel Illumination No Colour Stainless steel Wiring system Two-way switch Degree of protection (IP rating) IP20 Rated current 10 A Nominal voltage 240 V · Technical Data Sheet – Click to Download
