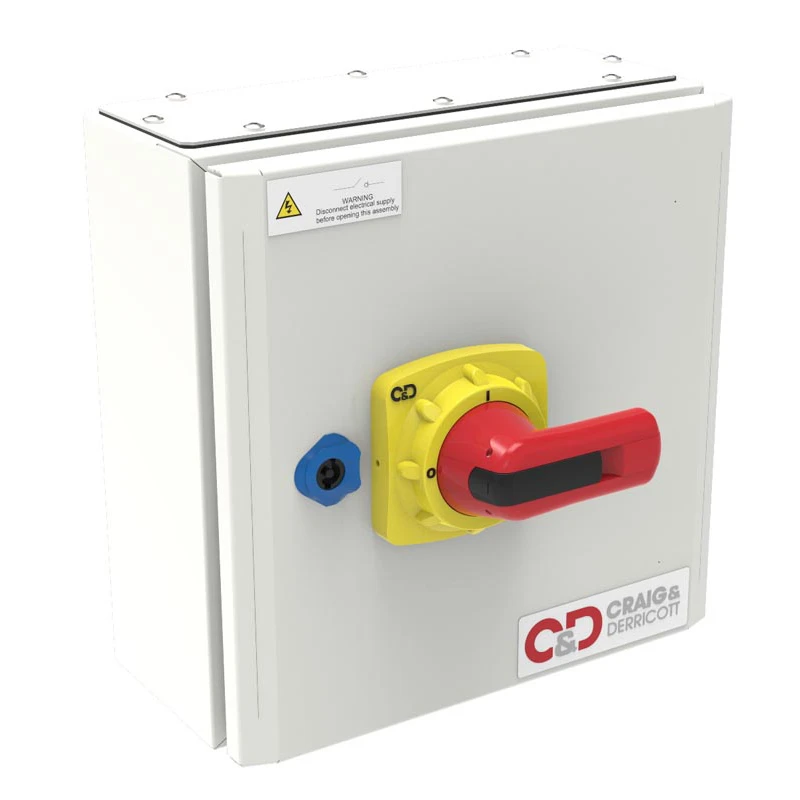

Switch Disconnect Isolator Triple Pole+Single Neutral 125A Grey Metal Hinged IP65

Craig & Derricott i-switch Switch Disconnector is a hinged door isolation equipment made of powder coated sheet steel. It is supplied in IP65 generously sized boxes which helps to avoid the need for extension boxes. The enclosure has the switch mounted on a removable galvanised chassis plate. The unit is provided with removable top and bottom gland plates. The range has a padlockable handle which allows for the insertion of up to three padlocks in the OFF position thus preventing the isolator being switched to the ON position. The door interlock handle can be defeated to enable emergency opening or for testing purposes (100A and above). · · · Enclosure size-1 · · IP65 Hinged door sheet steel – grey RAL 7035 · · Compliant to IEC/BS EN 60947-3 standards · · All enclosures are provided with removable top & bottom gland plates.
