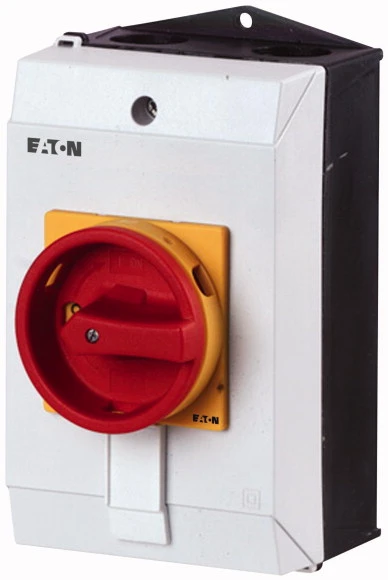

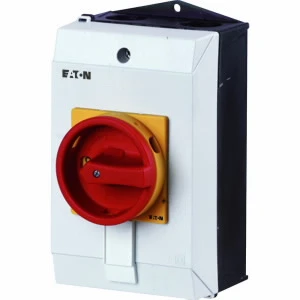

Eaton Switch Disconnect On-Off 3Ph Triple Pole IP65 25A 400V 50/60Hz
£55.94 Incl. VAT
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P1, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: hard knockout version, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 – 60 Hz 400 V: P = 11 kW, Rated uninterrupted current: Iu = 25 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3 · · · Colour: Red (Rotary Handle), Yellow (Locking Collar) · · Current Rating: 25A · · Height: 180mm · · Range: xEnergy · · Width: 100mm · · Depth: 80mm · · Frequency: 50 – 60Hz · · Dimensions: 100x80x180mm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Device construction Complete device in housing Colour control element Red Type of control element Door coupling rotary drive Degree of protection (NEMA) 12 Type of electrical connection of main circuit Screw connection Degree of protection (IP), front side IP65 Rated short-time withstand current lcw 0.64 kA Number of poles 3 Conditioned rated short-circuit current Iq 50 kA Rated operation power at AC-23, 400 V 13 kW Number of auxiliary contacts as change-over contact 0 Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 25 A Switching power at 400 V 13 kW Rated permanent current at AC-23, 400 V 25 A Rated permanent current Iu 25 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 7.5 kW Rated operating voltage 690 – 690 V Motor drive integrated No Interlockable Yes Version as emergency stop installation Yes Version as main switch Yes Version as safety switch No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No Suitable for intermediate mounting No Suitable for front mounting centre No Suitable for distribution board installation No Motor drive optional No Voltage release optional No Version as reversing switch No · Technical Data Sheet – Click to Download
