Switch Disconnector Enclosed Emergency 32A 15kW IP65
Switch Disconnector Enclosed Emergency 32A 15kW IP65
Switch Disconnector Enclosed Emergency 32A 15kW IP65 - Image 2
Switch Disconnector Enclosed Emergency 32A 15kW IP65 - Image 3

Switch Disconnector Enclosed Emergency 32A 15kW IP65

£90.28 Incl. VAT

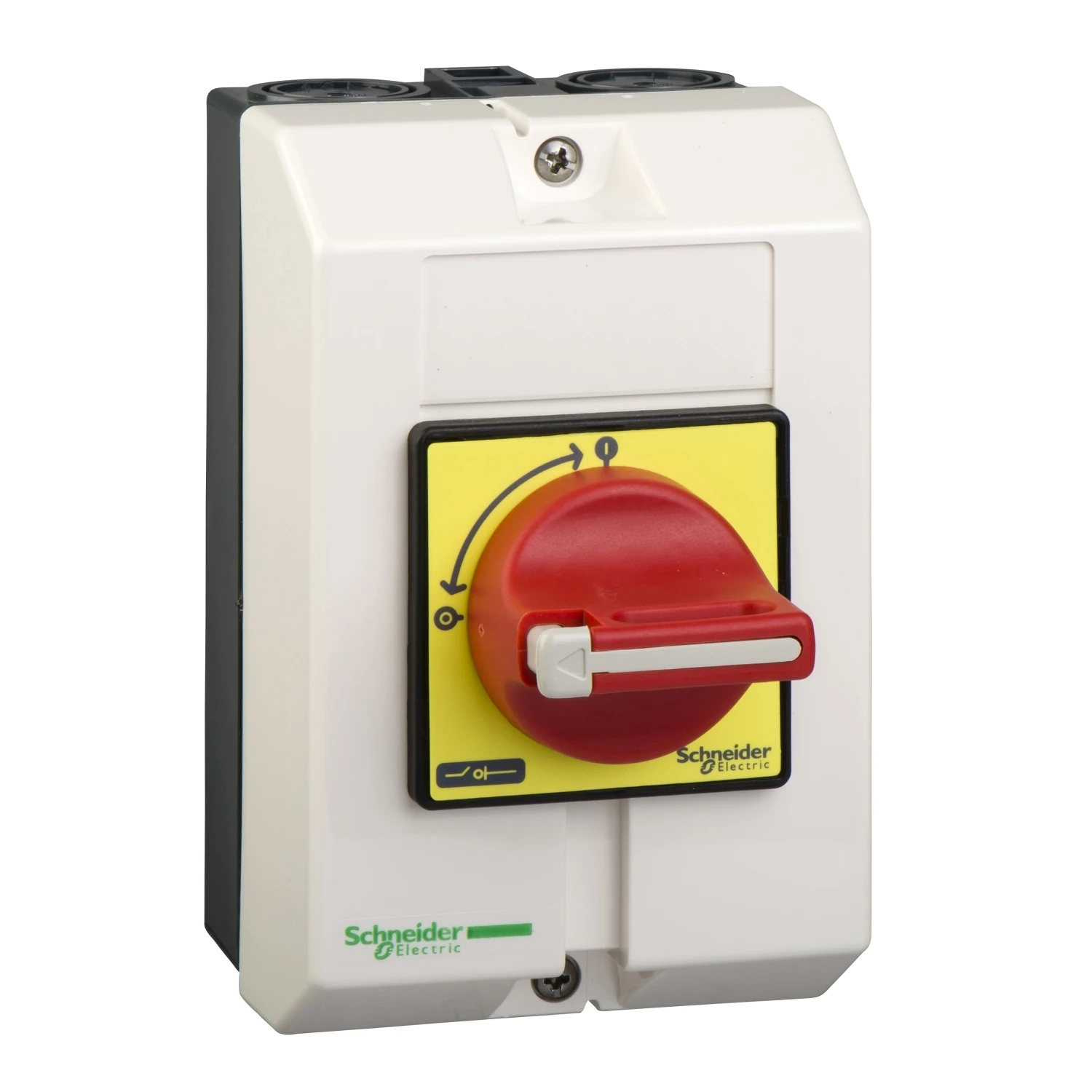

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main and emergency stop switching in motor applications AC-23 up to 15kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V2 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main and emergency stop switching in motor applications AC-23 up to 15kW@400V. · · Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V2 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCF2GE Categories: , Brand: Part Number: 2500053764

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of switches 1 Rated permanent current at AC-21, 400 V 32 A Rated permanent current at AC-23, 400 V 29 A Max. rated operation voltage Ue AC 690 V Switching power at 400 V – kW Conditioned rated short-circuit current Iq 10 kA Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 11 kW Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Rated short-time withstand current lcw 0.48 kA Rated operating voltage 0 – 690 V Version as emergency stop installation Yes Version as main switch Yes Version as safety switch No Version as maintenance-/service switch No Rated operation power at AC-23, 400 V 15 kW Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 32 A Suitable for front mounting 4-hole Yes Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Version as reversing switch No Motor drive optional No Voltage release optional No Interlockable Yes Suitable for floor mounting No Suitable for front mounting centre No · Technical Data Sheet – Click to Download
