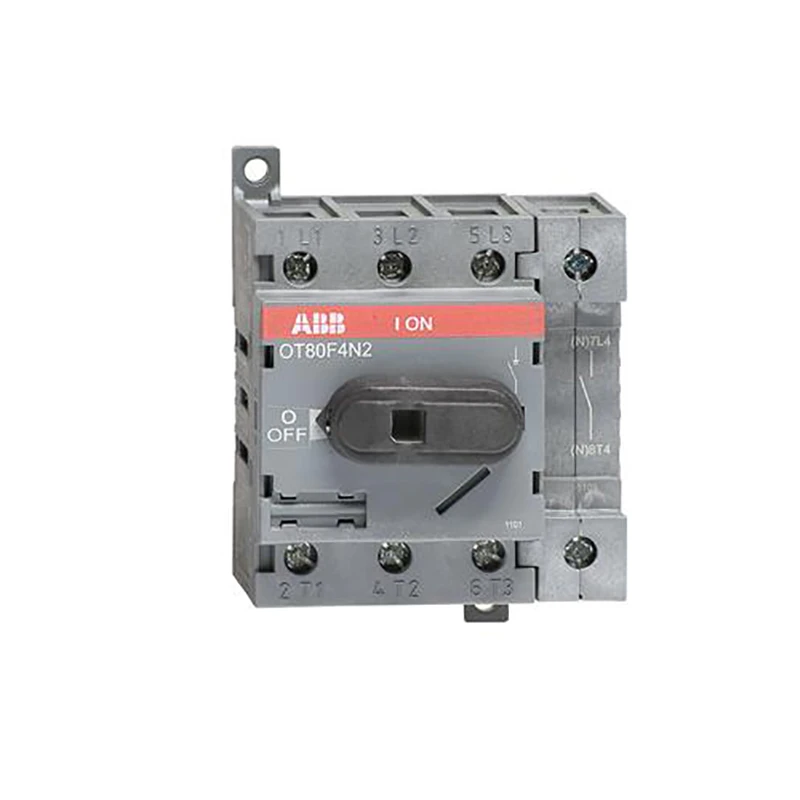

ABB Switch Disconnector Front Operated 4P Term Clamps 80A IP20
ABB Switch Disconnector Front Operated 4P Term Clamps 80A IP20
ABB Switch Disconnector Front Operated 4P Term Clamps 80A IP20 - Image 2
ABB Switch Disconnector Front Operated 4P Term Clamps 80A IP20 - Image 3

ABB Switch Disconnector Front Operated 4P Term Clamps 80A IP20

£66.36 Incl. VAT

This ABB switch disconnector features a 1.5 to 35mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 18.5kW power rating · · 2.8/4.5W power loss per pole · · 2N·m tightening torque · · 18 in·lb · · 750V voltage rating · · Screw terminals

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OT80F4N2 Categories: , , , Product Code: 2500307267

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Black Type of control element Toggle Degree of protection (IP), front side IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 0 Conditioned rated short-circuit current Iq 1.4 kA Rated operation power at AC-3, 400 V 37 kW Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Rated permanent current at AC-21, 400 V 80 A Max. rated operation voltage Ue AC 690 V Switching power at 400 V 37 kW Rated short-time withstand current lcw 1 kA Rated operation power at AC-23, 400 V 37 kW Rated permanent current Iu 80 A Number of auxiliary contacts as change-over contact 0 Rated operating voltage 750 – 750 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Interlockable No Suitable for distribution board installation Yes · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1649662
