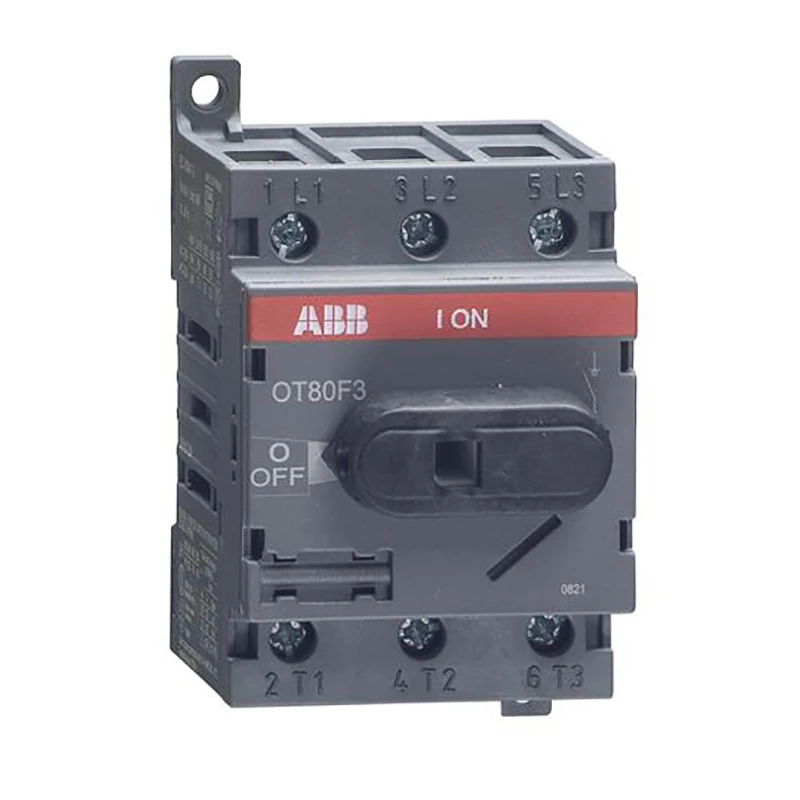

Switch Disconnector Front Operated TP Term Clamps 80A IP20

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP20 Colour control element Black Type of control element Toggle Type of electrical connection of main circuit Screw connection Device construction Built-in device fixed built-in technique Rated permanent current at AC-21, 400 V 80 A Max. rated operation voltage Ue AC 690 V Switching power at 400 V 37 kW Rated permanent current Iu 80 A Rated operation power at AC-3, 400 V 37 kW Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Rated short-time withstand current lcw 1 kA Conditioned rated short-circuit current Iq 1.4 kA Rated operation power at AC-23, 400 V 37 kW Number of poles 3 Version as reversing switch No Version as main switch Yes Motor drive integrated No Version as emergency stop installation No Version as safety switch No Version as maintenance-/service switch No Rated operating voltage 750 – 750 V Motor drive optional No Voltage release optional No Interlockable No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No Suitable for floor mounting Yes Suitable for distribution board installation Yes · Technical Data Sheet – Click to Download
