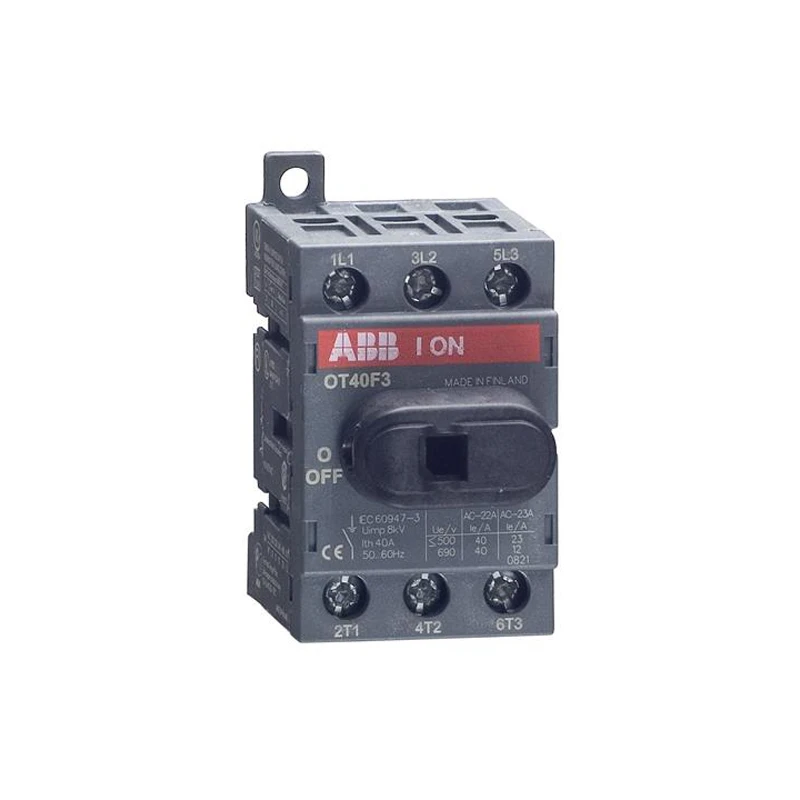

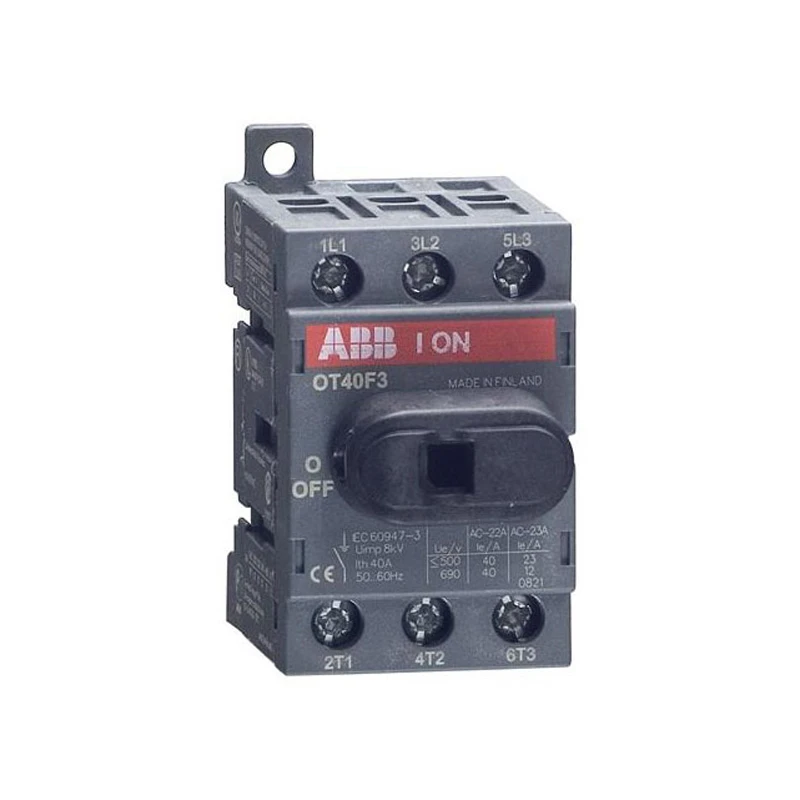

Switch Disconnector Front Operated Triple Pole Term Clamps 40A IP20
£30.83 Incl. VAT
This ABB switch disconnector features a 0.75 to 10mm² cable cross-section with a top-in/bottom-out position of line terminals. The switch disconnector is suitable for diverse applications, in motor control centers, in switchboards and as main switches in various equipment and machines. · · · 11kW power rating · · 1.6W power loss per pole · · 0.8N·m tightening torque · · 7 in·lb · · 750V voltage rating · · Screw terminals
5 in stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Colour control element Black Degree of protection (IP), front side IP20 Type of control element None Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Number of poles 3 Rated operation power at AC-3, 400 V 11 kW Switching power at 400 V 0.011 kW Rated permanent current at AC-21, 400 V 40 A Max. rated operation voltage Ue AC 690 V Number of auxiliary contacts as normally closed contact 0 Version as maintenance-/service switch No Rated operating voltage 750 – 750 V Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as change-over contact 0 Rated short-time withstand current lcw 0.5 kA Rated operation power at AC-23, 400 V 11 kW Rated permanent current Iu 40 A Version as reversing switch No Motor drive integrated No Version as main switch Yes Version as emergency stop installation No Version as safety switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation Yes Suitable for floor mounting Yes Suitable for intermediate mounting No Interlockable No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1646803
