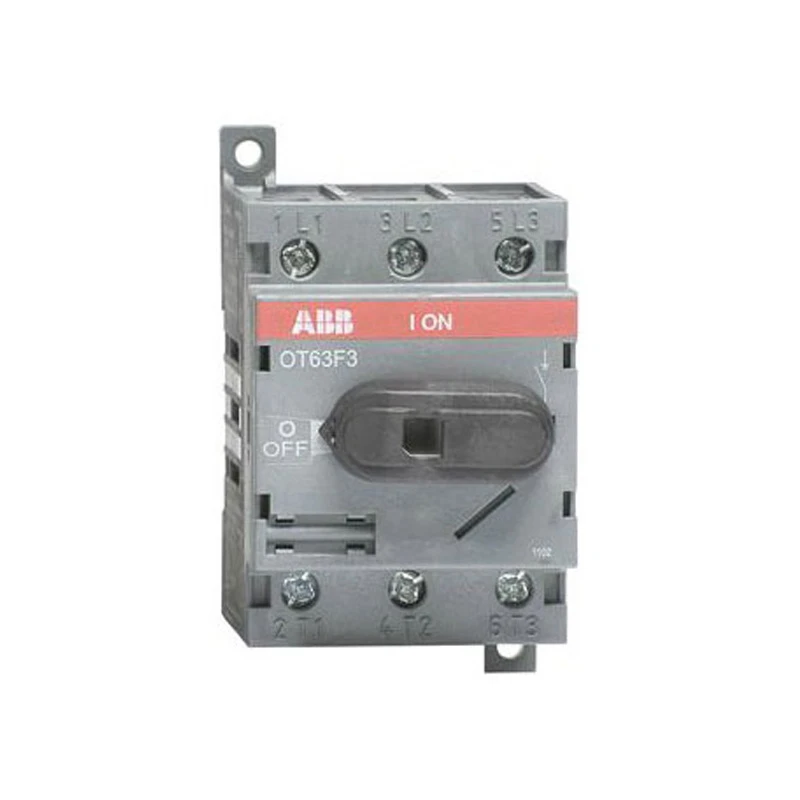

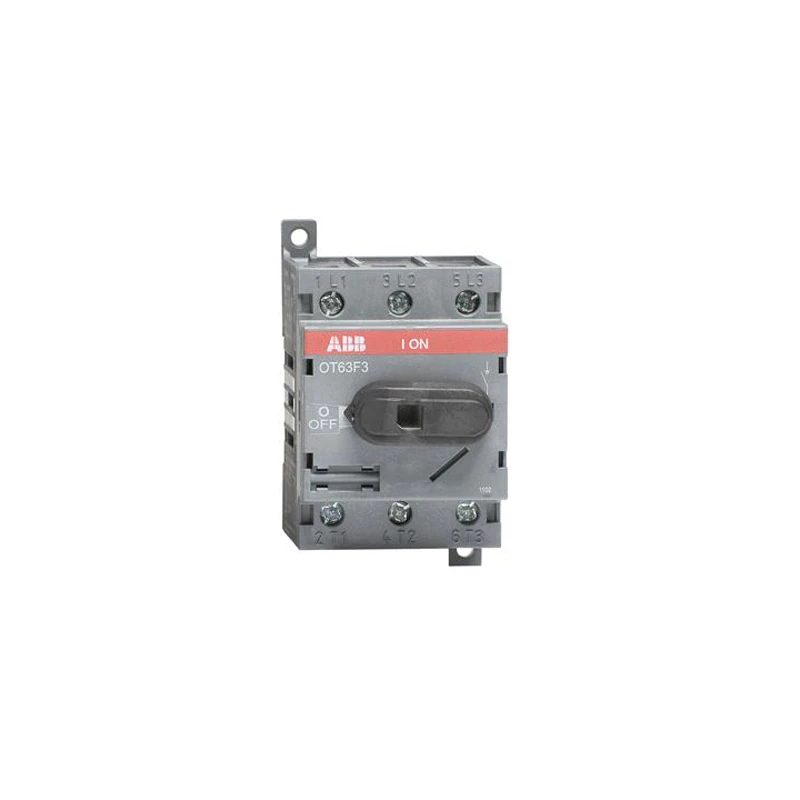

ABB Switch Disconnector Front Operated Triple Pole Tern Clamps 63A IP20

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element None Colour control element Black Degree of protection (IP), front side IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 1.4 kA Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 63 A Rated short-time withstand current lcw 1 kA Rated operation power at AC-3, 400 V 22 kW Number of auxiliary contacts as change-over contact 0 Switching power at 400 V 0.022 kW Rated permanent current at AC-21, 400 V 63 A Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V 22 kW Rated operating voltage 750 – 750 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Interlockable No Suitable for distribution board installation Yes Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download
