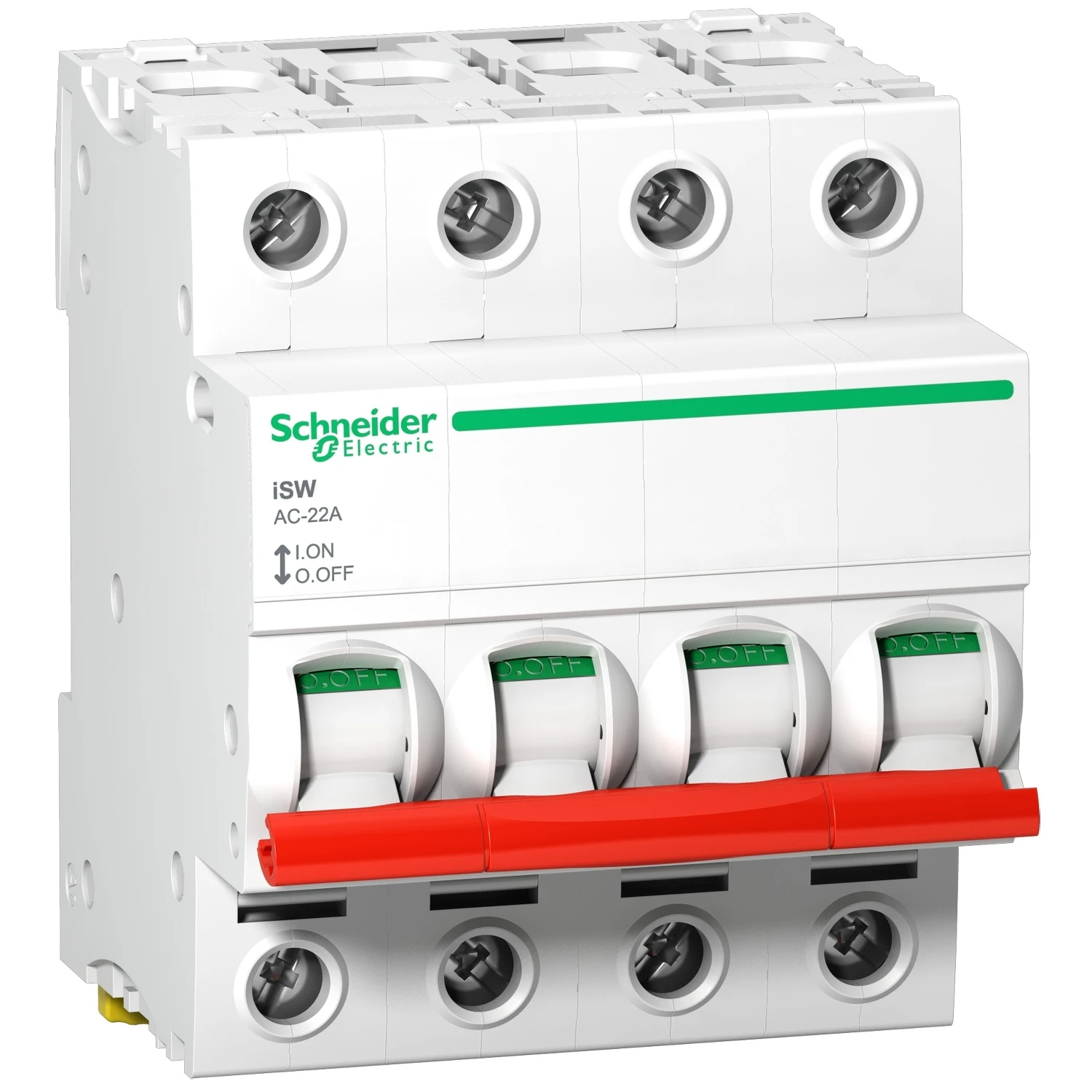

Switch Disconnector Isw Four Pole 125A 415V

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 125A, and operating voltage is 415VAC. Electrical endurance goes up to 2500 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3. · · · Easy to select thanks to a wide range compliant with DIN rail standard · · Benefit from enhanced peace of mind with a complete modular system · · Consistency with the entire Acti9 range · · Easily open and close circuits under load. · · Easily control and monitor the electrical circuits in all industrial and commercial buildings. · · The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. · · The width in 9mm pitches is 8. · · The dimensions are (W) 72mm x (H) 85mm x (D) 73mm. · · This switch disconnector is used for control and isolation. · · This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.
