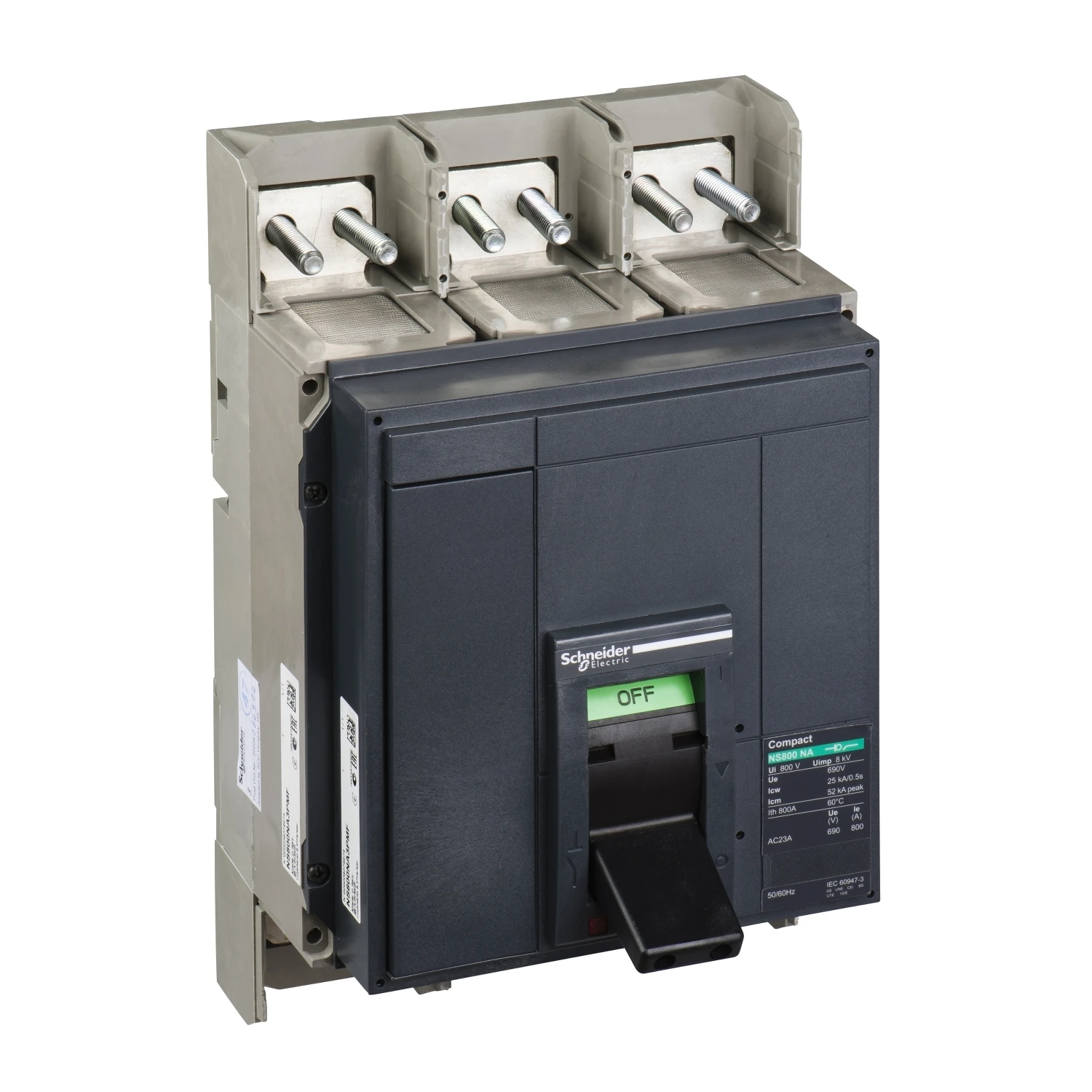

Switch Disconnector Triple Pole Front Connected NS800 800A
£2,395.43 Incl. VAT
molded case switch-disconnector Compact NS800 NA – 800 A – 3 poles. · · · ComPacT NS is a range of circuit breakers for built-in power & energy metering · · The solution covers ratings from 630 A to 3200 A · · MicroLogic electronic control unit provides electrical measurement and analysis functions · · ComPacT NS offers an optimized range of auxiliaries and accessories, field installable · · Flexible installation, in any position, in a switchboard or wall-mounted · · New transparent front cover with visible auxiliaries · · New toggle with ergonomic touch and optional LED blinking in trip position · · Wireless auxiliary contact OF/SD in Zigbee · · Sustainability with Green packaging and Green partnerships · · Linked to Smart Panels, improves uptime with complete monitoring solution
Out of stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Rated permanent current Iu 800 A Number of poles 3 Rated short-time withstand current lcw 25 kA Number of auxiliary contacts as change-over contact 5 Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 800 A Rated operating voltage 220 – 690 V Version as maintenance-/service switch Yes Interlockable Yes Motor drive optional No Version as reversing switch No Voltage release optional Yes Version as safety switch No Version as emergency stop installation No Version as main switch Yes Suitable for distribution board installation Yes Suitable for intermediate mounting No Motor drive integrated No Suitable for floor mounting Yes Suitable for front mounting 4-hole Yes Suitable for front mounting centre No · Technical Data Sheet – Click to Download
