Switch Disconnector Triple Pole Main+Emergency Stop 125A 4 Screw Fixing
Switch Disconnector Triple Pole Main+Emergency Stop 125A 4 Screw Fixing
Switch Disconnector Triple Pole Main+Emergency Stop 125A 4 Screw Fixing - Image 2
Switch Disconnector Triple Pole Main+Emergency Stop 125A 4 Screw Fixing - Image 3

Switch Disconnector Triple Pole Main+Emergency Stop 125A 4 Screw Fixing

£257.96 Incl. VAT

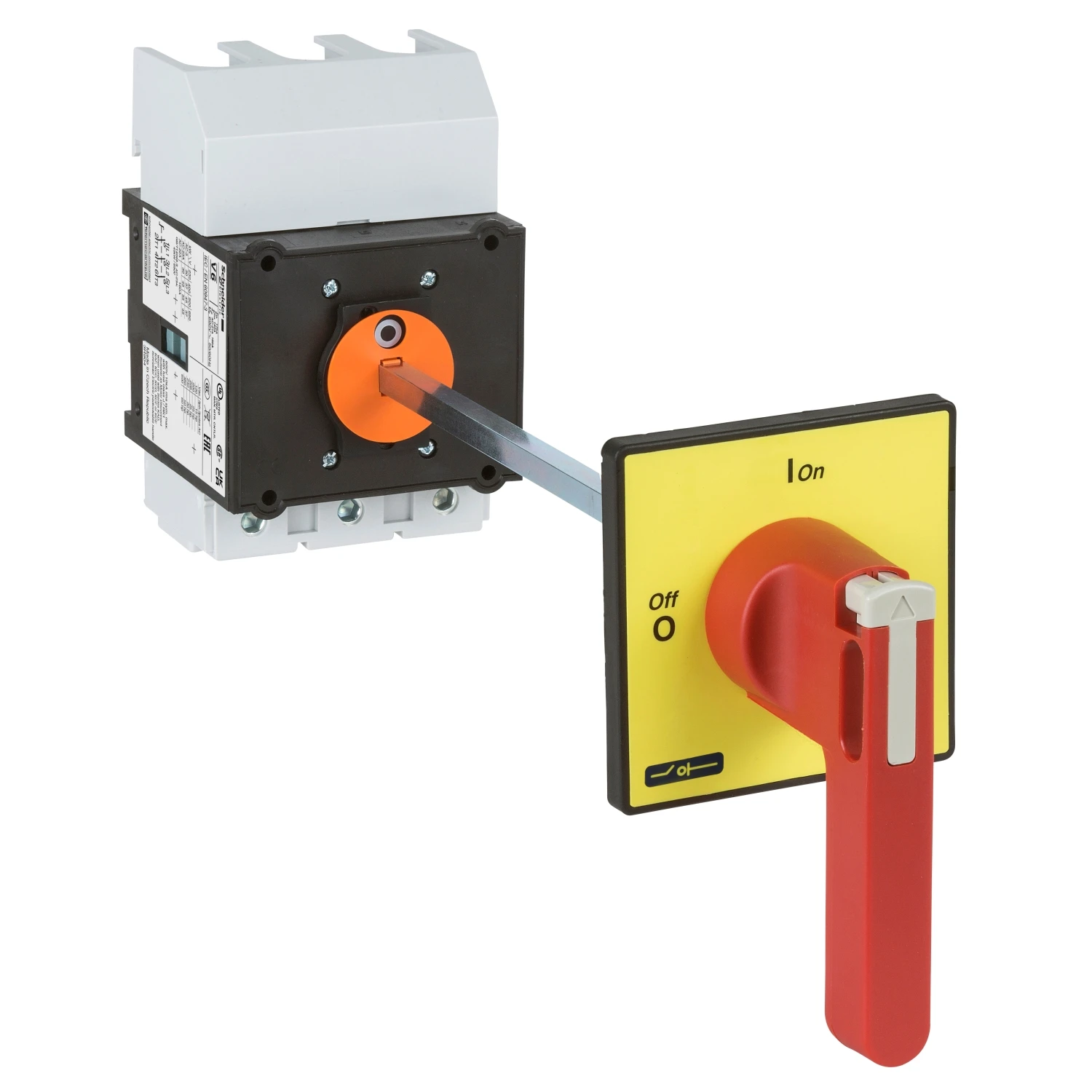

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. · · Complete unit composed of a switch body V5, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Possible distance between back of enclosure and door 330-350mm. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCCF5 Categories: , , Brand: Part Number: 2500134916

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-23, 400 V 68.5 A Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Rated short-time withstand current lcw 1.5 kA Number of auxiliary contacts as change-over contact 0 Number of switches 1 Rated operation power at AC-23, 400 V 37 kW Rated permanent current at AC-21, 400 V 125 A Switching power at 400 V – kW Rated operating voltage 0 – 690 V Version as safety switch No Version as maintenance-/service switch No Rated operation power at AC-3, 400 V 30 kW Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 125 A Conditioned rated short-circuit current Iq 10 kA Max. rated operation voltage Ue AC 690 V Version as main switch Yes Version as emergency stop installation Yes Suitable for floor mounting No Suitable for front mounting centre No Suitable for intermediate mounting No Suitable for front mounting 4-hole Yes Motor drive integrated No Suitable for distribution board installation No Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
