Switch Disconnector Triple Pole Main+Emergency Stop 175A 4 Screw Fixing
Switch Disconnector Triple Pole Main+Emergency Stop 175A 4 Screw Fixing
Switch Disconnector Triple Pole Main+Emergency Stop 175A 4 Screw Fixing - Image 2
Switch Disconnector Triple Pole Main+Emergency Stop 175A 4 Screw Fixing - Image 3

Switch Disconnector Triple Pole Main+Emergency Stop 175A 4 Screw Fixing

£345.37 Incl. VAT

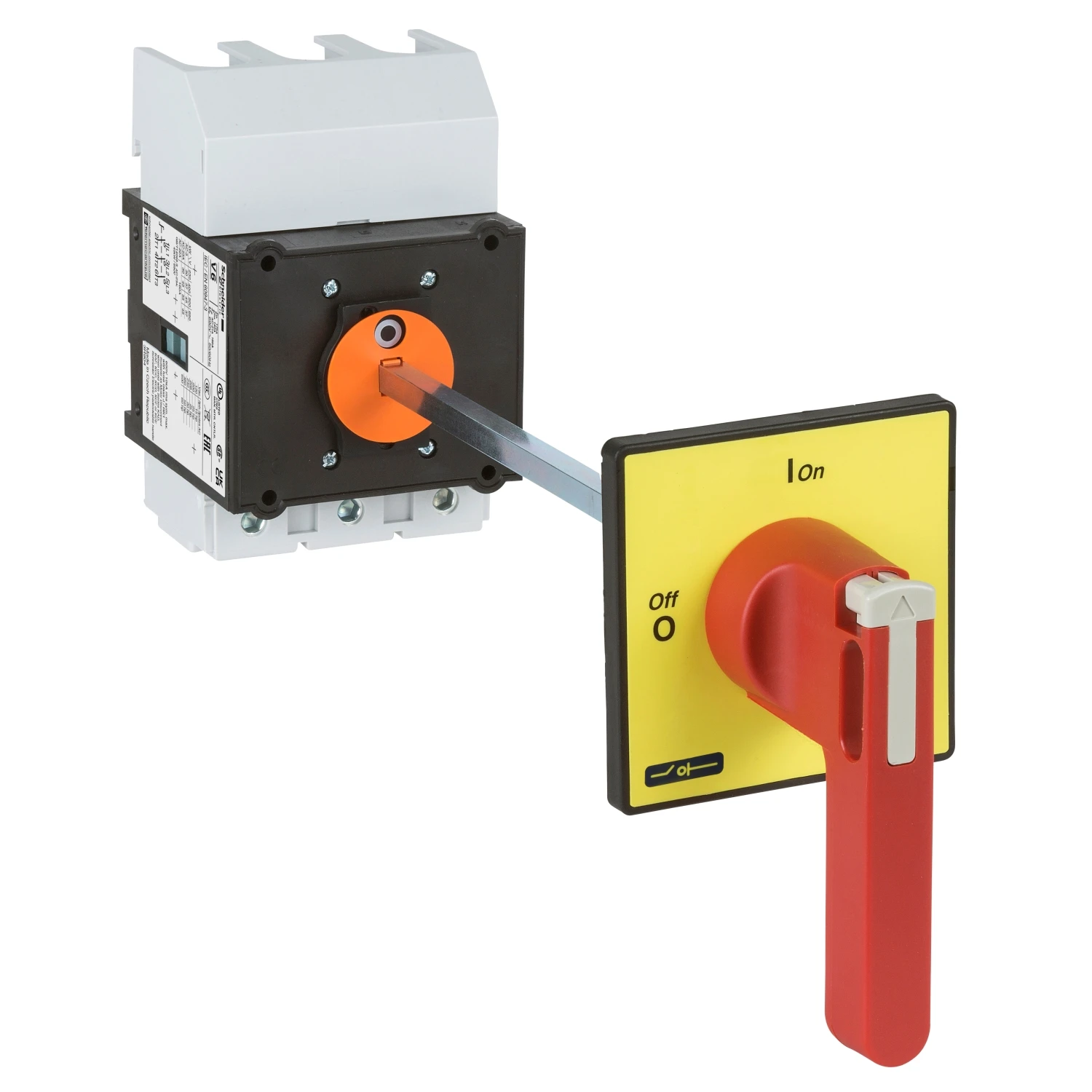

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. · · Complete unit composed of a switch body V6, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Possible distance between back of enclosure and door 330-350mm. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCCF6 Categories: , , Brand: Part Number: 2500134917

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Conditioned rated short-circuit current Iq 10 kA Number of poles 3 Rated operation power at AC-3, 400 V 37 kW Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 175 A Rated short-time withstand current lcw 2.1 kA Number of auxiliary contacts as change-over contact 0 Rated operation power at AC-23, 400 V 45 kW Version as maintenance-/service switch No Version as main switch Yes Version as safety switch No Rated operating voltage 0 – 690 V Rated permanent current at AC-23, 400 V 83 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 160 A Number of switches 1 Version as emergency stop installation Yes Motor drive integrated No Suitable for floor mounting No Interlockable Yes Suitable for front mounting 4-hole Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
