Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 25A
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 25A
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 25A - Image 2
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 25A - Image 3

Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 25A

£62.41 Incl. VAT

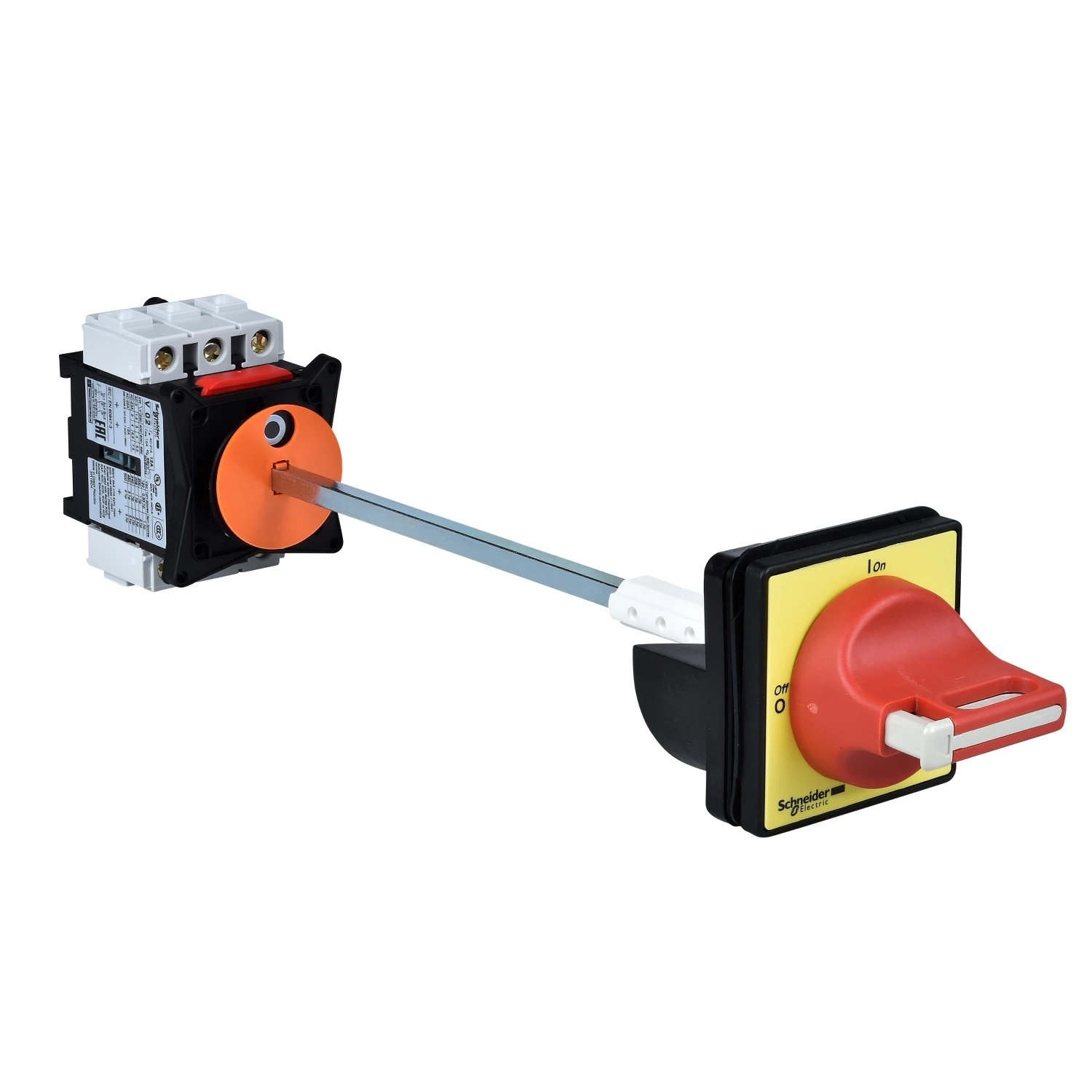

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23. Complete unit composed of a switch body V0, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23. · · Intended for main and emergency stop switch disconnecting usage. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with central fixing on door, ensuring IP65 to the mounting. · · Possible distance between back of enclosure and door 300-330mm. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCCD0 Categories: , , , , , Brand: Product Code: 2500134840

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-23, 400 V 14.5 A Number of poles 3 Conditioned rated short-circuit current Iq 10 kA Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 25 A Number of auxiliary contacts as normally closed contact 0 Rated short-time withstand current lcw 0.3 kA Number of auxiliary contacts as change-over contact 0 Number of switches 1 Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 25 A Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V 7.5 kW Rated operating voltage 0 – 690 V Suitable for front mounting centre Yes Version as reversing switch No Suitable for intermediate mounting No Interlockable Yes Suitable for front mounting 4-hole No Suitable for distribution board installation No Version as main switch Yes Version as emergency stop installation Yes Motor drive integrated No Version as maintenance-/service switch No Version as safety switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
