Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 63A 4 Screw Fixing
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 63A 4 Screw Fixing
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 63A 4 Screw Fixing - Image 2
Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 63A 4 Screw Fixing - Image 3

Schneider Electric Switch Disconnector Triple Pole Main + Emergency Stop 63A 4 Screw Fixing

£114.23 Incl. VAT

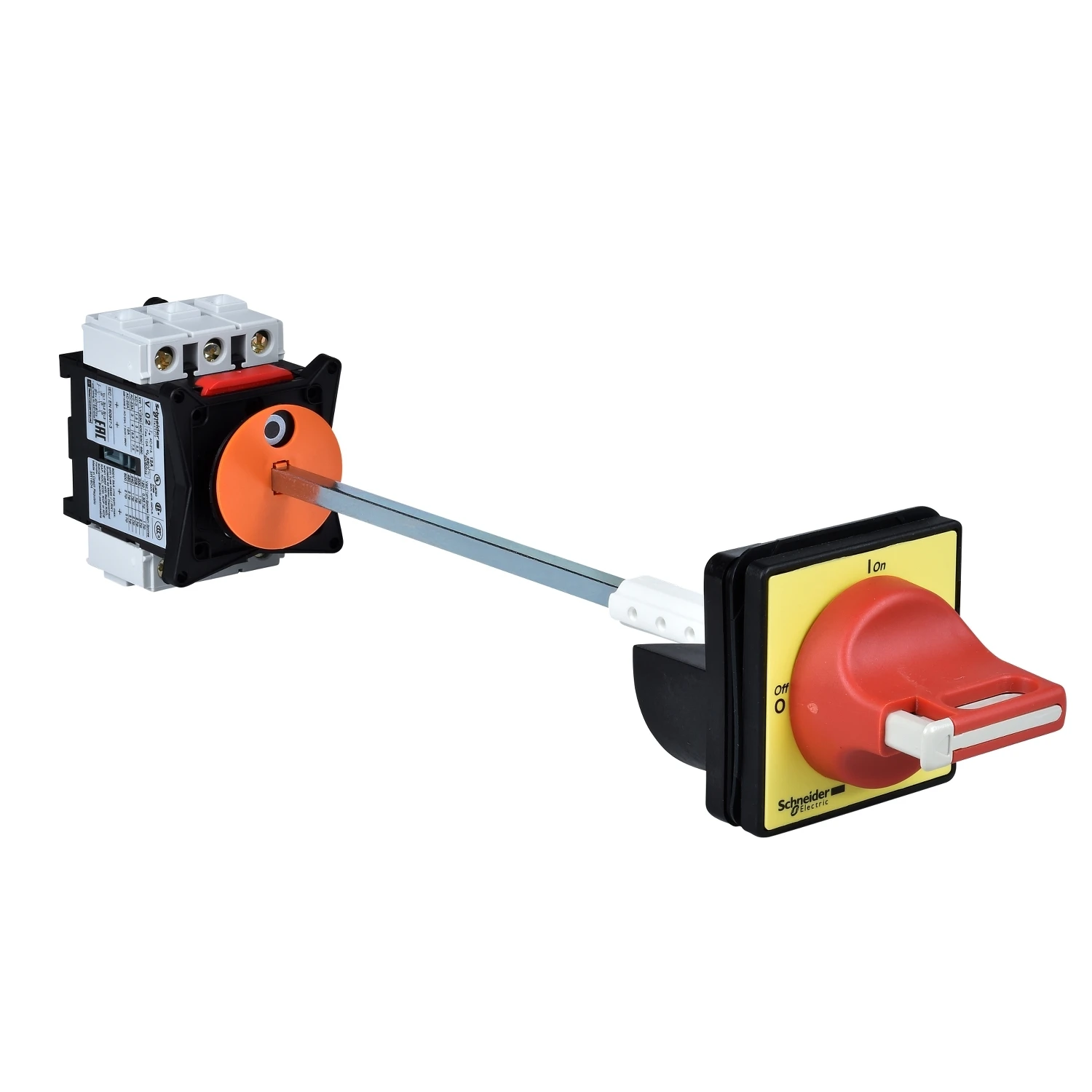

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. Complete unit composed of a switch body V3, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. · · Complete unit composed of a switch body V3, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 60x60mm front plate KCF2PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Possible distance between back of enclosure and door 300-320mm. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCCF3 Categories: , , , , , Brand: Product Code: 2500134914

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 10 kA Rated operation power at AC-3, 400 V 18.5 kW Rated permanent current Iu 63 A Number of auxiliary contacts as change-over contact 0 Rated short-time withstand current lcw 0.76 kA Number of switches 1 Rated permanent current at AC-21, 400 V 63 A Switching power at 400 V – kW Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V 22 kW Number of poles 3 Rated permanent current at AC-23, 400 V 41.5 A Rated operating voltage 0 – 690 V Version as maintenance-/service switch No Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting centre No Suitable for front mounting 4-hole Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
