Switch Disconnector Triple Pole+Neutral 200A 415V
Switch Disconnector Triple Pole+Neutral 200A 415V

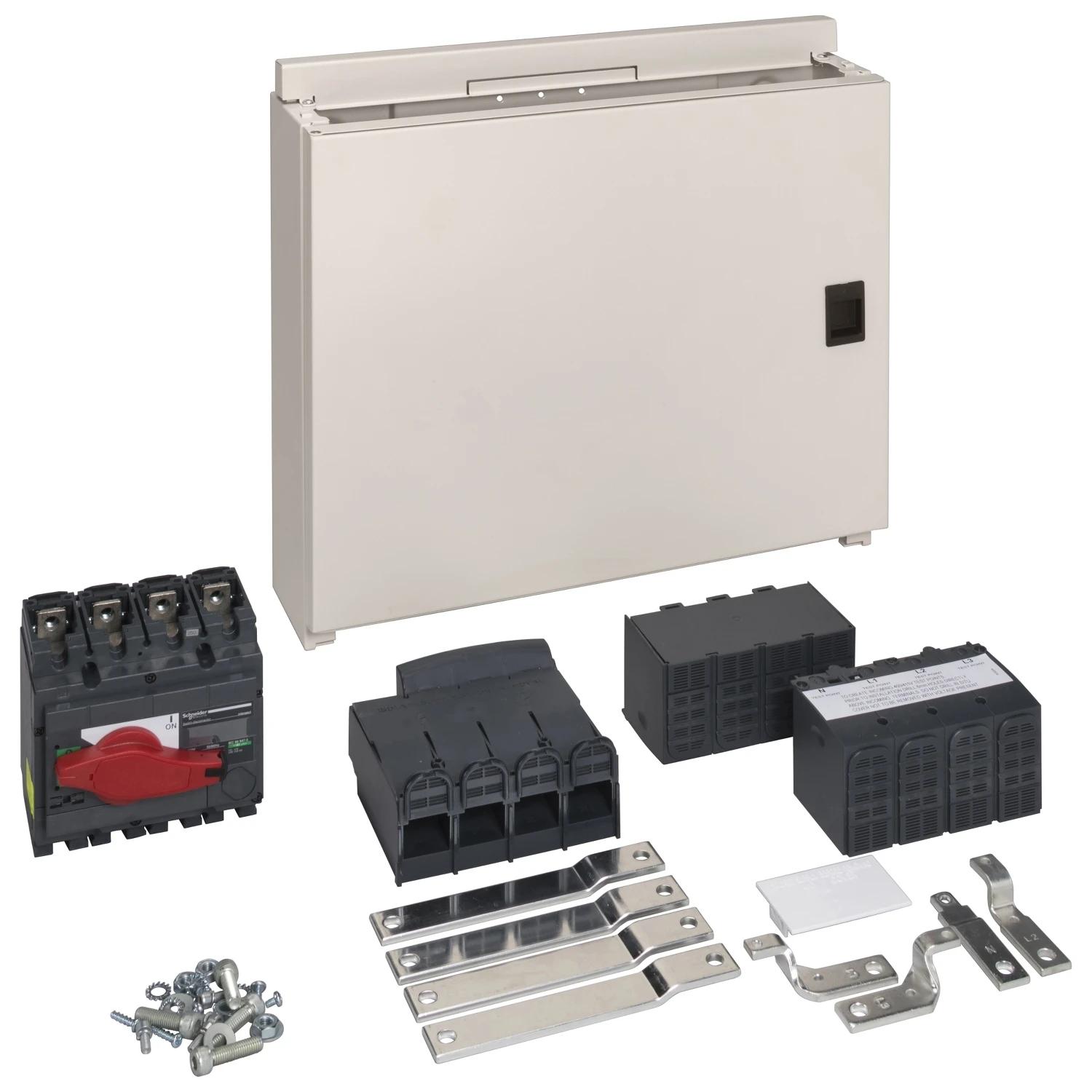

Switch Disconnector Triple Pole+Neutral 200A 415V - Image 2
Switch Disconnector Triple Pole+Neutral 200A 415V - Image 3

Switch Disconnector Triple Pole+Neutral 200A 415V

£698.84 Incl. VAT

The Schneider Electric Switch Disconnector SEA9PNI1604 160A 4P is for the Acti9 Isobar and Isobar P distribution boards together with required insulation and terminal accessorries. This requires an extension box which is provided with the incomer. · · · Plug-on neutral · · Ease of installation · · Rated Operational Current: 160 A at 415 V AC · · 4 Pole · · BS EN 60947-3 · · 18 Months Warranty · · Green Premium Product

18 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9PNI1604 Categories: , , Brand: Part Number: 2501108962

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 25 kA Rated short-time withstand current lcw 25 kA Rated permanent current Iu 160 A Number of poles 4 Motor drive optional No Suitable for front mounting 4-hole Yes Version as reversing switch No Voltage release optional No Rated operating voltage 415 – 415 V Rated permanent current at AC-23, 400 V 160 A Max. rated operation voltage Ue AC 455 V Number of auxiliary contacts as change-over contact 0 Suitable for front mounting centre Yes Suitable for distribution board installation Yes Suitable for intermediate mounting No Interlockable No Suitable for floor mounting No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Version as maintenance-/service switch No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222729
