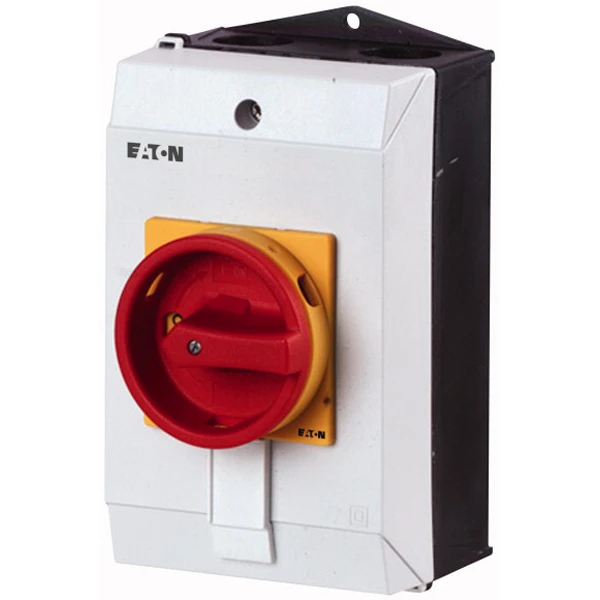

Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz
Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz

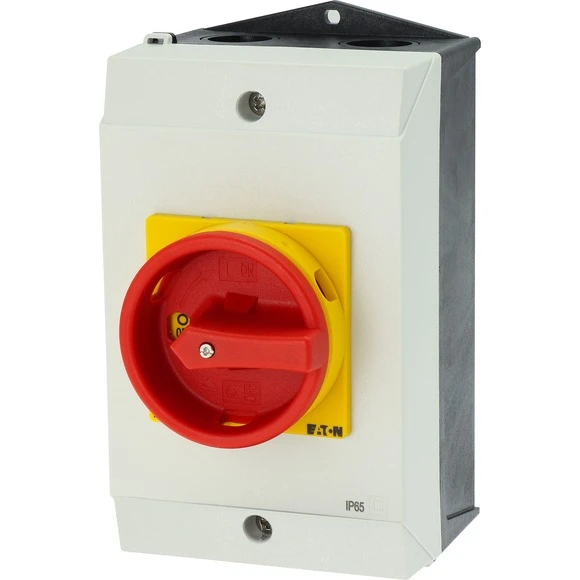

Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz - Image 2
Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz - Image 3
Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz - Image 4

Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 32A 400V 50/60Hz

£70.40 Incl. VAT

Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P1, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 – 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3 · · · Colour: Red (Rotary Handle), Yellow (Locking Collar) · · Current Rating: 32A · · Height: 160mm · · Width: 100mm · · Depth: 80mm · · Frequency: 50 – 60Hz

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: P1-32/I2/SVB Categories: , , , , Brand: Product Code: 2500092543

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Device construction Complete device in housing Colour control element Red Degree of protection (NEMA) 12 Type of control element Door coupling rotary drive Degree of protection (IP), front side IP65 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 13 kW Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally closed contact 0 Rated short-time withstand current lcw 0.64 kA Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 32 A Rated operation power at AC-23, 400 V 15 kW Switching power at 400 V 15 kW Rated permanent current at AC-23, 400 V 32 A Number of poles 3 Rated permanent current Iu 32 A Conditioned rated short-circuit current Iq 80 kA Number of auxiliary contacts as change-over contact 0 Rated operating voltage 690 – 690 V Version as emergency stop installation Yes Motor drive integrated No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No Version as main switch Yes Version as safety switch No Interlockable Yes Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting centre No Motor drive optional No Voltage release optional No Version as reversing switch No · Technical Data Sheet – Click to Download
