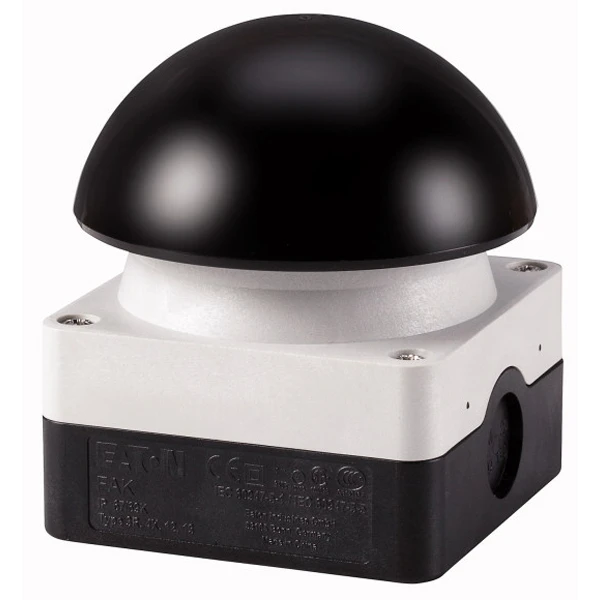

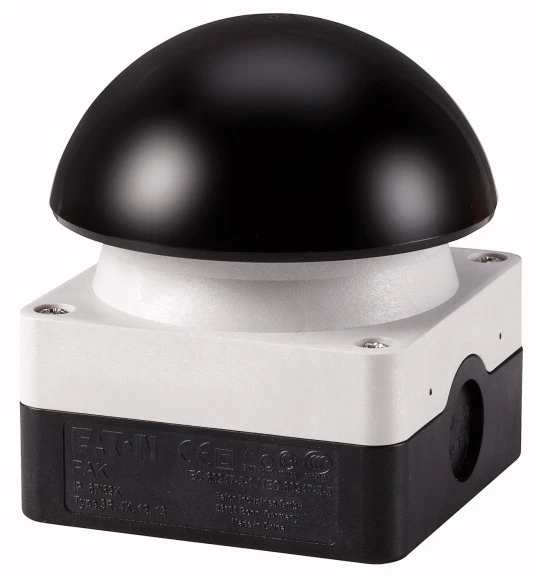

Switch Foot+Palm Mushroom Surface Black Spring Return
£87.11 Incl. VAT
Foot and palm switch, Complete unit, Function: momentary, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Colour Button: Black, Colour enclosure top: gray, Colour Enclosure base: Black, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660, Degree of protection, IEC/EN 60529: IP66, IP67, IP69K, Mounting position: As required · · · Colour: Black · · Contact Configuration: 1NO/1NC · · Number of Poles: Double Pole · · Height: 101mm · · Length: 85mm · · Width: 85mm · · Depth: 85mm · · Diameter: 94mm · · IP Rating: IP67, IP69K
Out of stock
Description
Technical Specifications Technical Specifications Foot-/palm switch complete Unlocking method None Degree of protection (IP rating) IP67/IP69K Degree of protection (NEMA) 4X Colour cap Black Number of contacts as normally closed contact 1 Number of contacts as normally open contact 1 Hole diameter 0 mm Spring-return Yes Switching function latching No · Technical Data Sheet – Click to Download
