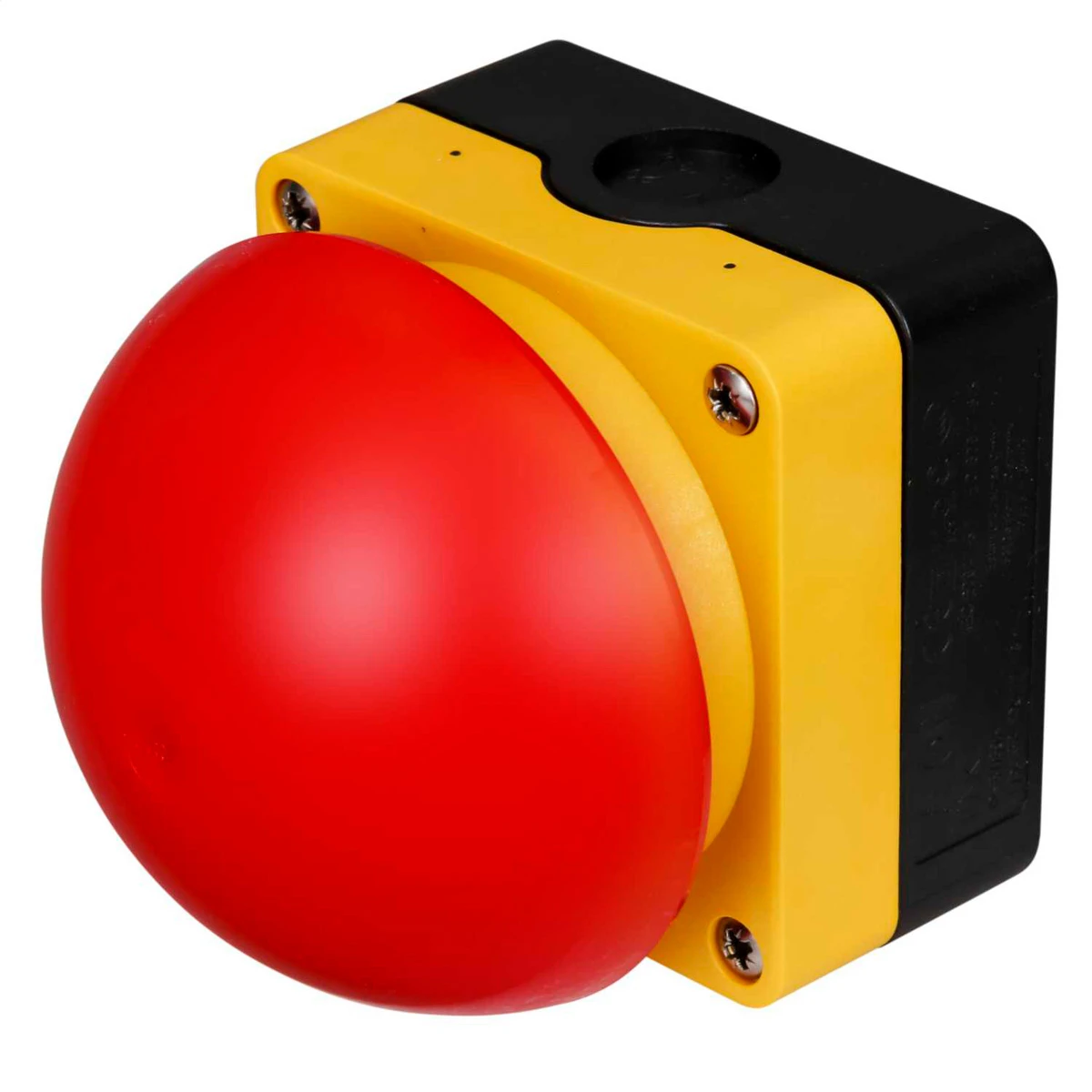

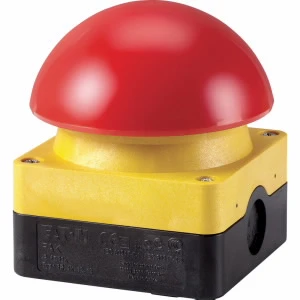

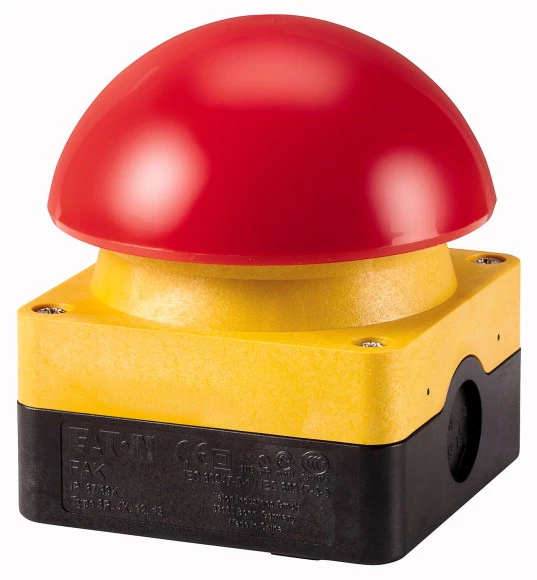

Switch Foot+Palm Mushroom Surface Red Pull To Release

Foot and palm switch, Complete unit, Function: maintained, Description: Pull to release, Emergency stop pushbutton tamper-proof to ISO 13850/EN 418, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Colour Button: Red, Colour enclosure top: Yellow, Colour Enclosure base: Black, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-5, VDE 0660, Degree of protection, IEC/EN 60529: IP66, IP67, IP69K, Mounting position: As required · · · RAL 9005 enclosure base · · Yellow RAL 1004 operator only · · Tamper-proof · · Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. · · Fixing mode: Clipped on 35mm symmetrical DIN rail · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm on screw terminals · · Mechanical/Electrical durability: 100000 cycles · · Ambient temperature: -20°C to 60°C · · IP20/IK04 Degree of protection
