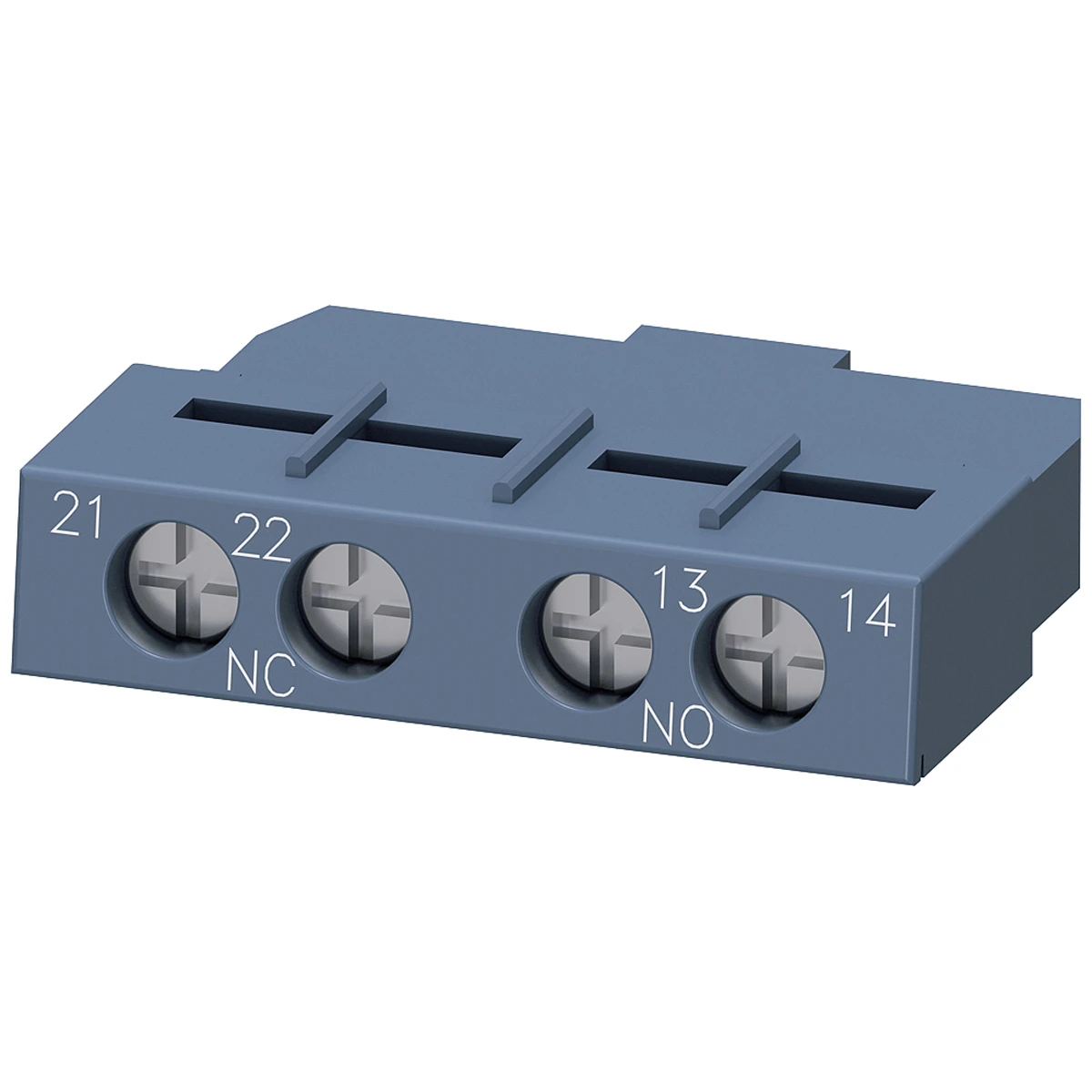

Switch Traverse Auxiliary 1No+1Nc Screw Terminal
Switch Traverse Auxiliary 1No+1Nc Screw Terminal
Switch Traverse Auxiliary 1No+1Nc Screw Terminal - Image 2
Switch Traverse Auxiliary 1No+1Nc Screw Terminal - Image 3

Switch Traverse Auxiliary 1No+1Nc Screw Terminal

£11.76 Incl. VAT

Siemens auxiliary switch with a transverse mounting on the front. This switch has 1NO + 1NC auxiliary contact and is suitable for size S00, S0, S2 and S3 circuit breakers. · · · Screw clamp terminals: 2x (0.5 – 1.5mm²), 2 x (0.75 – 2.5mm²) · · Mounting type: plug-in fixing · · Operating current: 0.15 – 10A · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection · · Certificate of suitability: CE/UL/CSA/CCC · · Epoxy-polyester powder enclosure surface finish · · IEC 62208 Standards · · Green premium product

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2901-1E Categories: , , Brand: Part Number: 2500408499

Description

Technical Specifications  Technical Specifications Auxiliary contact block Lamp cap/base None Model Clip-on Type of electric connection Screw connection Number of fault-signal switches 0 Number of contacts as normally open contact 1 Rated operation current Ie at AC-15, 230 V 0.5 A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 · Technical Data Sheet – Click to Download
