TDO 0.32inch Micro OLED 2000nits 120Hz 800×600 Compact Wearable for AR Glasses Heads-up Displays HUDs Viewfinders EVFs

Description

Product description

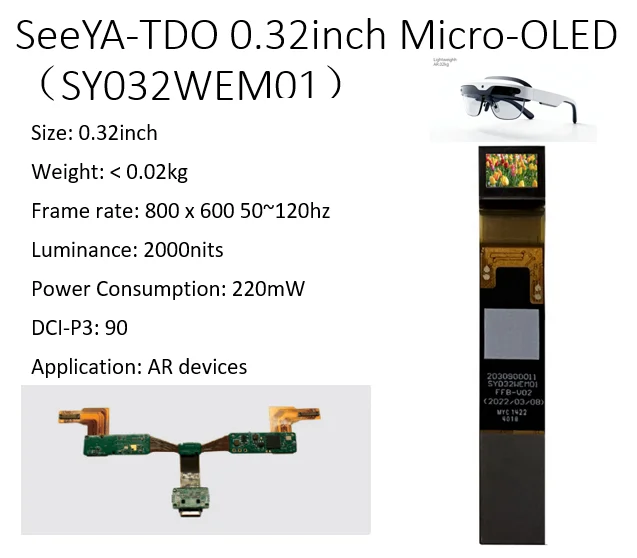

Products Description Are you struggling to find a display that balances ultra-high resolution with low power consumption for your next-generation wearable device? Many standard displays are too bulky or drain batteries too quickly, compromising the user experience of head-mounted displays. The SeeYA 0.32-inch Micro-OLED (SY032WEM01) is the definitive solution. Engineered with single-crystal silicon transistors, this active-matrix color OLED panel delivers a crystal-clear 800×600 RGB resolution in a lightweight, compact form factor designed specifically for high-end optical applications – PRODUCT SPECIFICATION – 0.32 inch Si-OLED micro display Product Number SY032WEM01 SY032WEM01-91 Display Type Micro OLED Resolution 800 x 600 Screen Size 9.94mm x 10.45mm x 1.775mm Active Area 6.48mm x 4.86mm / 0.32” diagonal Power Consumption 220mW 160mW Brightness 2000nits(Typ.) √ 400nits Color Full RGB Contrast Ratio 100,000:1 Interface I2C+RGB and MIPI Frame Rate 50Hz~120Hz Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +80℃ Plan Mass Production Application Augmented Reality (AR) Devices, Electronic Viewfinders (EVFs) in Cameras and Telescopes, Medical Imaging and Surgical Devices Night Vision and Helmet-Mounted Displays, Industrial Heads-Up Displays (HUDs) – PRODUCT PICTURE – APPLICATION: The SY032WEM01 is the preferred choice for a wide range of professional-grade industries: * Consumer Electronics: AR/VR headsets, smart glasses, and head-mounted displays (HMD). * Photography: High-end digital camera viewfinders (EVF). * Industrial/Medical: Thermal imaging scopes and surgical display overlays. – DRAWING – – CORE BENIFITS – High PPI & High refresh rate High contrast 100,000:1 and true black provide sharper image details, ensure nothing hides in darkness, and enhance comfort during night-time viewing. Motion blur reduction Fast response and frame rate 120Hz enable ghost-free dynamic imaging, Optimized for rapid aiming and tracking, enhancing reaction speeds. High PPI & High refresh rate High resolution 800(H) x 600 (V) and Pixel Size 8.1μm x 8.1μm provides sharp, grain-free visuals, enabling clear, clutter-free data presentation. Blue Light Eye Protection 1024 grayscale levels and 10bits color depth enhance target recognition in adverse weather like fog or haze improving interference penetration and preserving target details for better detection in complex environments. – DEMO ACCESSARIES – HDMl or Type-C driver board(optional) Cables for connection or extension Firmware Upgrade tool Heat Sink Si OLED Introduction – PROCESS FLOW – – PRODUCT OVERVIEW – Si-OLED micro display Size Resolution Model Number Active Area(mm) Brightness Interface Remark 0.32″ 800×600 SY032WEM01 6.48*4.86 1800(TYP.) RGB/MIPI Color 0.4″ 1440×1080 SY040WDM01 6.065*8.09 1800(TYP.) MIPI Color 0.49″ 1920×1080 SY049WDM01 6.065*10.783 1800(TYP.) MIPI Color/ Muit-lens for EVF available 0.49″ 1920×1080 SY049WDM02 6.065*10.783 1800(TYP.) MIPI Longer FPC/color/Birdbath optic for AR headsets available 0.49″ 1920×1080 SY049LDM01 6.065*10.783 3000(TYP.) MIPI color 0.49″ 1920×1080 SY049LDM02 6.065*10.783 20000(TYP.) MIPI Mono green 0.72″ 1920×1200 SY072WCM04 15.552*9.720 2000(TYP.) MIPI color 0.57″ 800×600 SY057WAM01 11.52*8.64 1800(TYP.) MIPI color 0.60″ 1920×1080 SY060LDM01 13.22* 7.43 6000(TYP.) MIPI color 0.83″ 2560×1440 SY083WAM01 18.432*10.368 1800(TYP.) MIPI color 1.03″ 2560×2560 SY103WAM01 18.432*18.432 1800(TYP.) MIPI color/pancake optical module for VR 1.03″ 2560×2560 SY103WAM19 18.432*18.432 1000(TYP.) MIPI color 1.03″ 2560×2560 SY103WAM10 18.432*18.432 20000(TYP.) MIPI Mono green Shanghai Top Display Optoelectronics was founded in 2014 and specializes in the design, development andmanufacturing of high-performance near-eye display (NED) solutions, covering Micro-OLED,Fast LCD, optical engine and driver solutions(eg. HDM, TYPE-C, CVBS, USB). They are widely used in AR &VR, EVF, Infrared Thermal Imagers, Thermal Sights, Laser Rangefinders and Ranging Telescope, medical imaging equipment, simulation training and other professional fields. 00:08 00:55 – CERTIFICATIONS – – BUSINESS PARTNER – – EXHIBITION PHOTOS –
