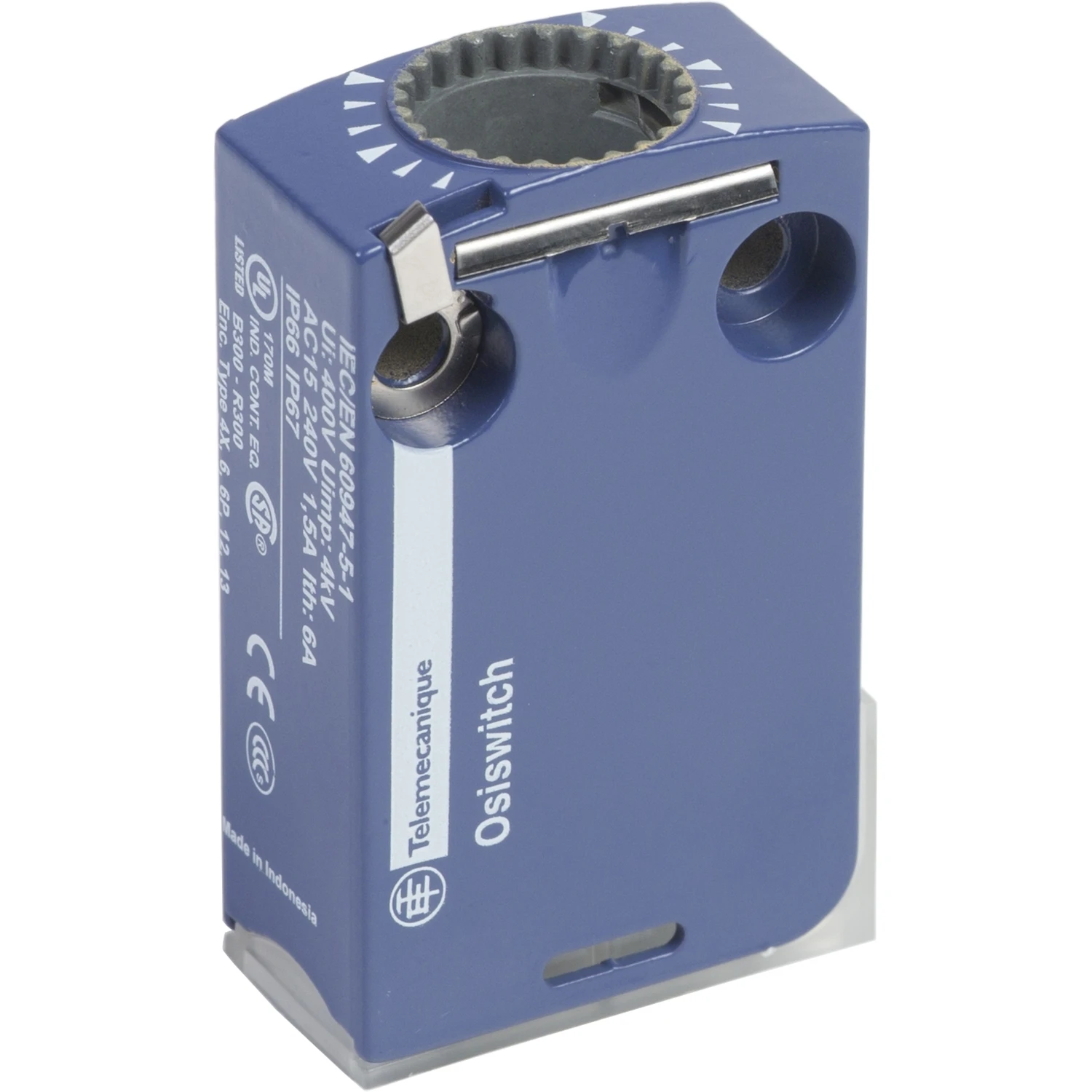

Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch
Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch
Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch - Image 2
Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch - Image 3
Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch - Image 4

Telemecanique Sensors Body Snap Action 1Nc+1 Normally Open Metal For Limit Switch

£39.31 Incl. VAT

This ZCMD21 body is part of the range of limit switches XC Standard, miniature design, metal, XCMD. The variable composition range expands the offer and choice among different actuators. This body with 2-pole contact is equipped with contact block NC + NO snap action. · · · This ZCMD21 body is part of the range of limit switches XC Standard, miniature design, metal, XCMD. · · The variable composition range expands the offer and choice among different actuators. · · This body with 2-pole contact is equipped with contact block NC + NO snap action. · · Normal State Configuration: 1 Nc + 1 No

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCMD21 Categories: , Brand: Product Code: 2500257198

Description

Technical Specifications  Technical Specifications End switch Type of interface for safety communication None Type of control element None Interface type None Explosion safety category for dust None Type of electric connection Plug-in connection others Explosion safety category for gas None Switching function Quick-break switch Construction type housing Cuboid Degree of protection (IP rating) IP66 Rated operation current Ie at DC-13, 230 V 0.1 A Housing material Metal Diameter sensor – mm Length of sensor 16 mm Width sensor 30 mm Height of sensor 50 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at AC-15, 24 V – A Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 125 V – A Ambient temperature during operating -25 – 70 °C With status indication No Switching function latching No Output electronic No Forced opening Yes Suitable for safety functions No · Technical Data Sheet – Click to Download
