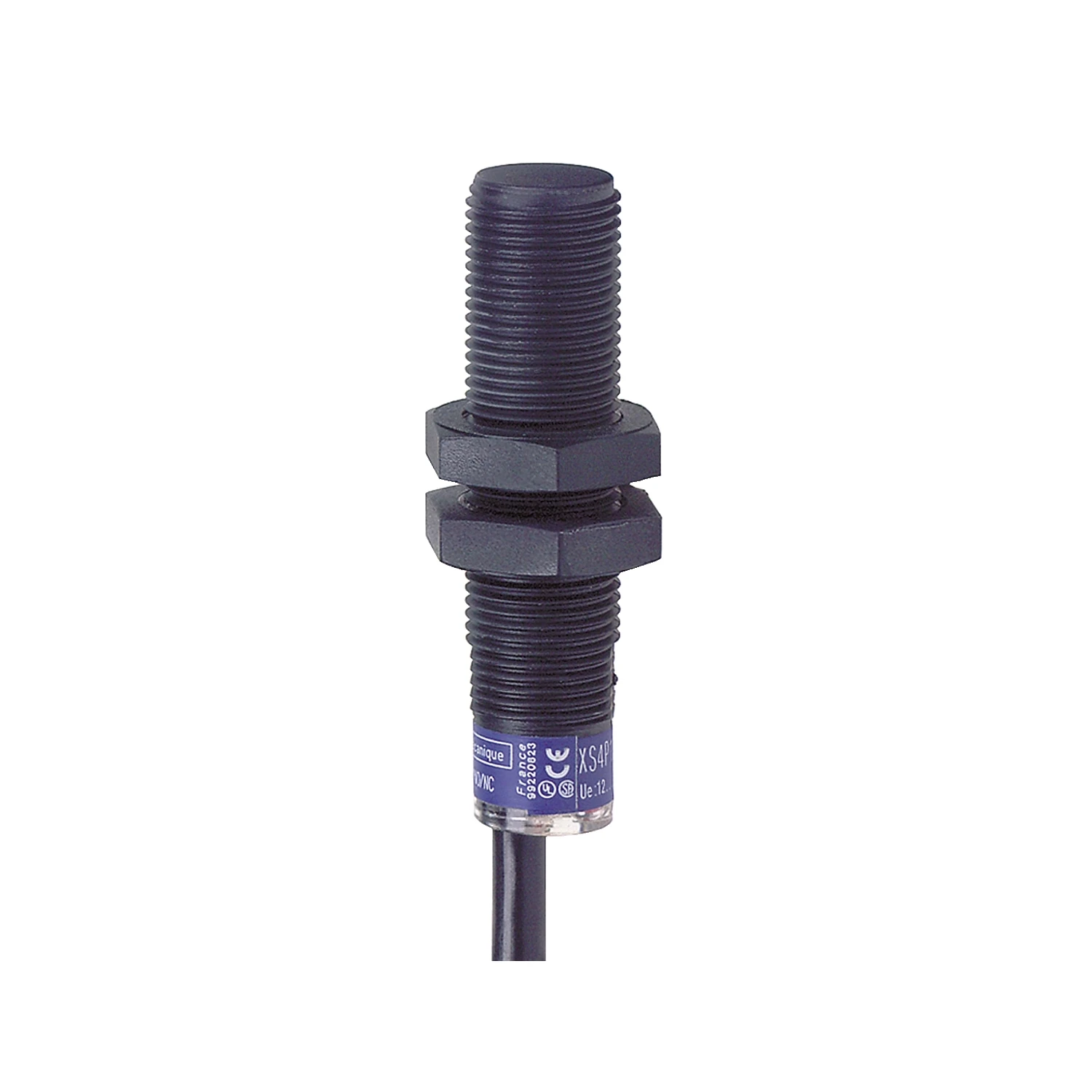

Telemecanique Sensors Inductive Sensor Xs4m12 L52mm Pps Sn4mm 24-240V AC/DC Cable 2M
Awaiting product image

Telemecanique Sensors Inductive Sensor Xs4m12 L52mm Pps Sn4mm 24-240V AC/DC Cable 2M

£88.08 Incl. VAT

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 4mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. · · It features a plastic case and a 2m long PvR cable. It has a sensing distance of 4mm. · · Two-wire, AC or DC supply, 24V to 240V, NO function. · · This sensor is ECOLAB certified.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS4P12MA230 Categories: , , Brand: Product Code: 2500047174

Description

Technical Specifications  Technical Specifications Inductive proximity switch Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Housing material Plastic Construction type housing Cylinder, screw-thread Type of switching output 2-wire Mechanical mounting condition for sensor Not flat Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Voltage type AC/DC Type of electric connection Cable radial Type of actuation Metallic Target Switching distance 4 mm Number of protected semiconductor outputs 0 Number of contact energized outputs with signalling function 0 Diameter sensor 12 mm Length of sensor 52 mm Switching frequency 5000 Hz Width sensor – mm Number of semiconductor outputs with signalling function 0 Height of sensor – mm Max. output current at protected output 200 mA Number of protected contact energized outputs 0 Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
