Telemecanique Sensors Inductive Sensor Xs4m18 L62mm Pps Sn8mm 24-240V AC/DC Cable 2M
Awaiting product image

Telemecanique Sensors Inductive Sensor Xs4m18 L62mm Pps Sn8mm 24-240V AC/DC Cable 2M

£86.41 Incl. VAT

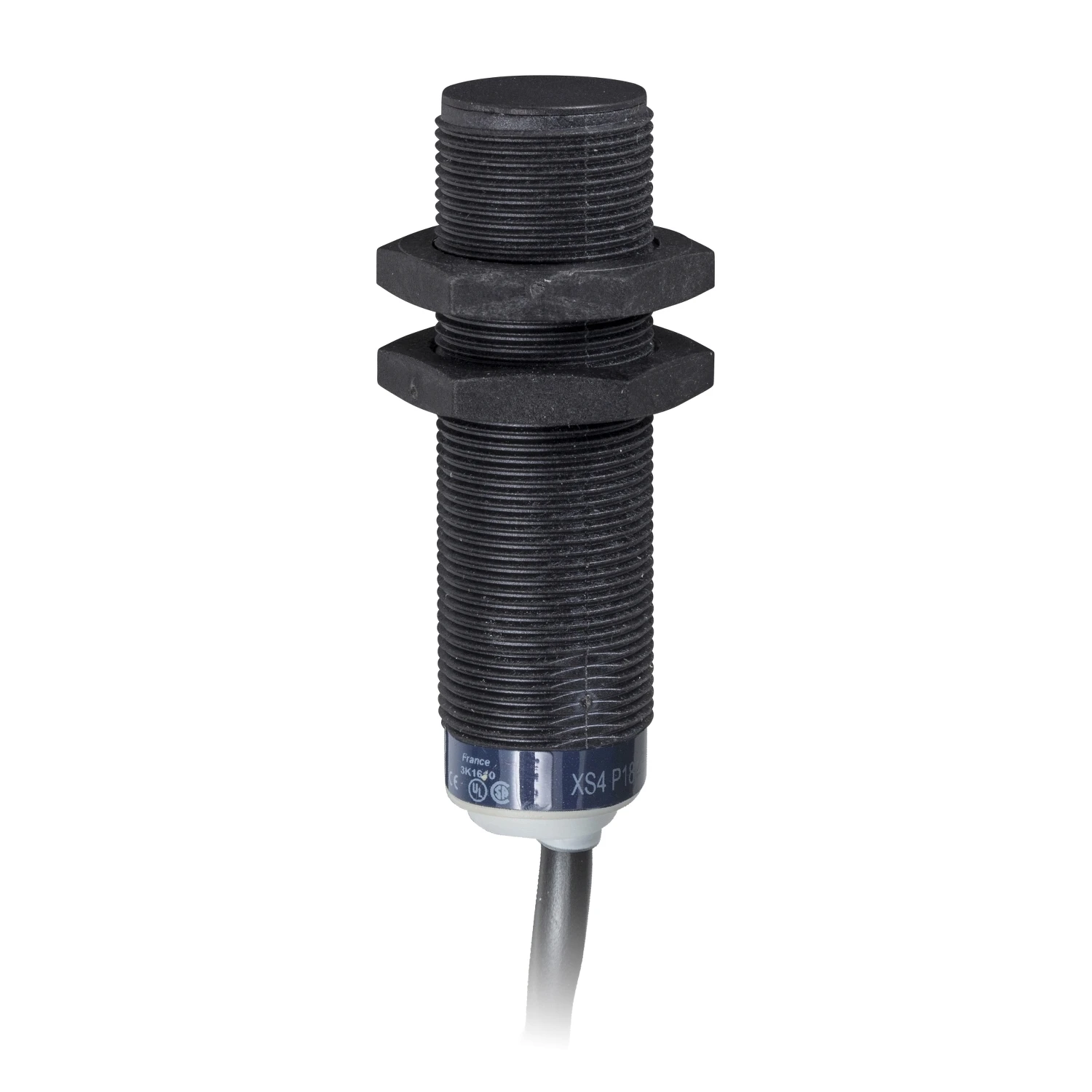

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 8mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. · · Thread Size: M18 X 1 · · Weight: 0.1kg

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS4P18MA230 Categories: , , Brand: Product Code: 2500047060

Description

Technical Specifications  Technical Specifications Inductive proximity switch Explosion safety category for dust None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None Interface type None SIL according to IEC 61508 None Construction type housing Cylinder, screw-thread Housing material Plastic Mechanical mounting condition for sensor Not flat Type of switching output 2-wire Type of switch function Normally open contact Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Voltage type AC/DC Type of electric connection Cable radial Type of actuation Metallic Target Switching distance 8 mm Diameter sensor 18 mm Number of protected semiconductor outputs 0 Length of sensor 61.8 mm Max. output current at protected output 200 mA Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 0 Height of sensor – mm Width sensor – mm Switching frequency 2000 Hz Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V With monitoring function downstream switching devices No Cascadable No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download
