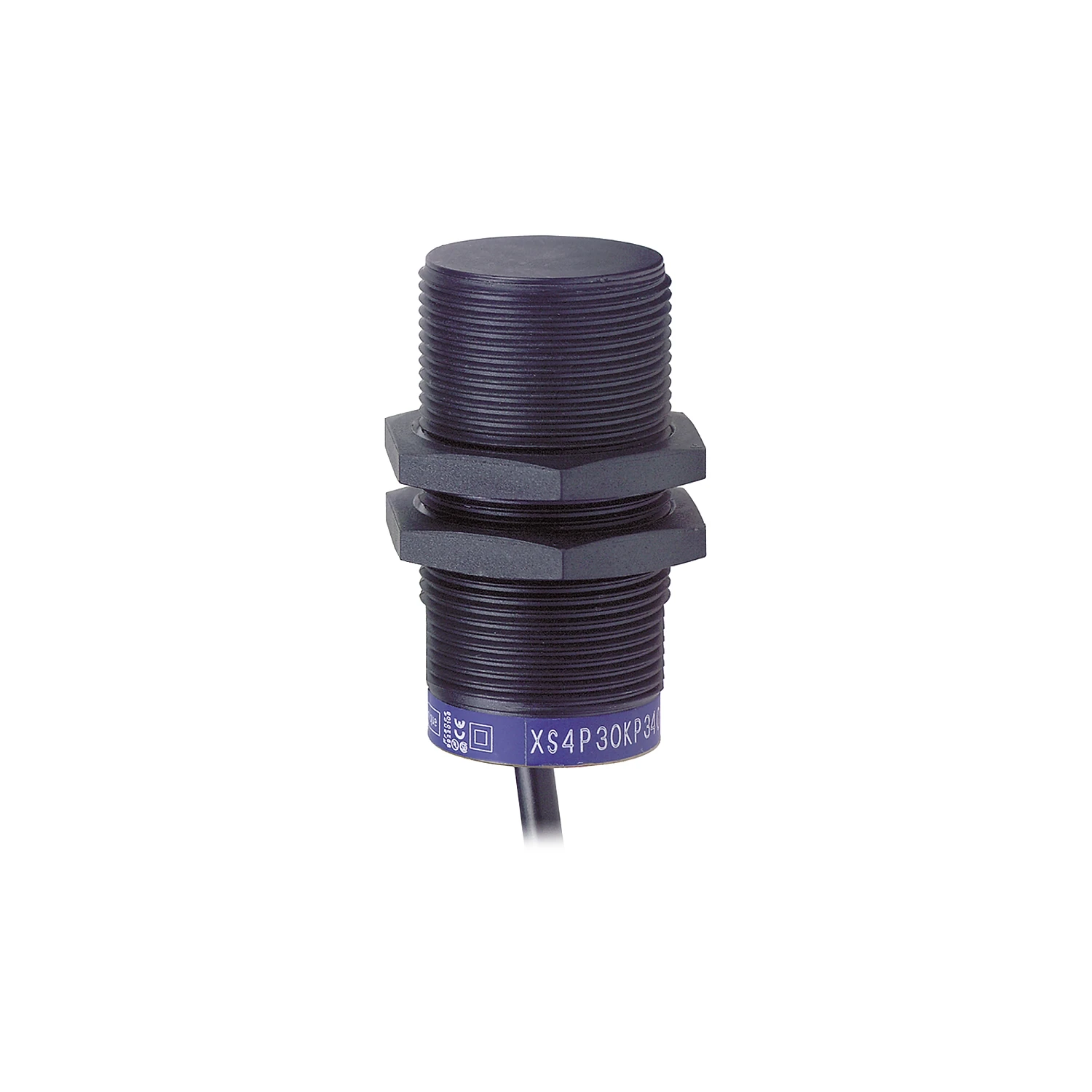

Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M
Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M
Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M - Image 2
Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M - Image 3
Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M - Image 4

Telemecanique Sensors Inductive Sensor Xs4m30 L62mm Pps Sn15mm 24-240V AC/DC Cable 2M

£88.68 Incl. VAT

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 15mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. · · It features a plastic case and a 2m long PvR cable. It has a sensing distance of 15mm. · · Two-wire, AC or DC supply, 24V to 240V, NO function. · · This sensor is ECOLAB certified.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS4P30MA230 Categories: , , , , , Brand: Product Code: 2500047180

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Explosion safety category for gas None Type of interface for safety communication None Interface type None Housing material Plastic Type of switching output 2-wire Construction type housing Cylinder, screw-thread Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Mechanical mounting condition for sensor Not flat Type of electric connection Cable radial Type of switch function Normally open contact Voltage type AC/DC Type of actuation Metallic Target Switching frequency 1000 Hz Switching distance 15 mm Height of sensor – mm Width sensor – mm Diameter sensor 30 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 0 Length of sensor 61.8 mm Max. output current at protected output 200 mA Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
