Telemecanique Sensors Inductive Sensor Xs5m12 L35mm Brass Sn2mm 12-24Vdc Cable 2M
Awaiting product image

Telemecanique Sensors Inductive Sensor Xs5m12 L35mm Brass Sn2mm 12-24Vdc Cable 2M

£49.16 Incl. VAT

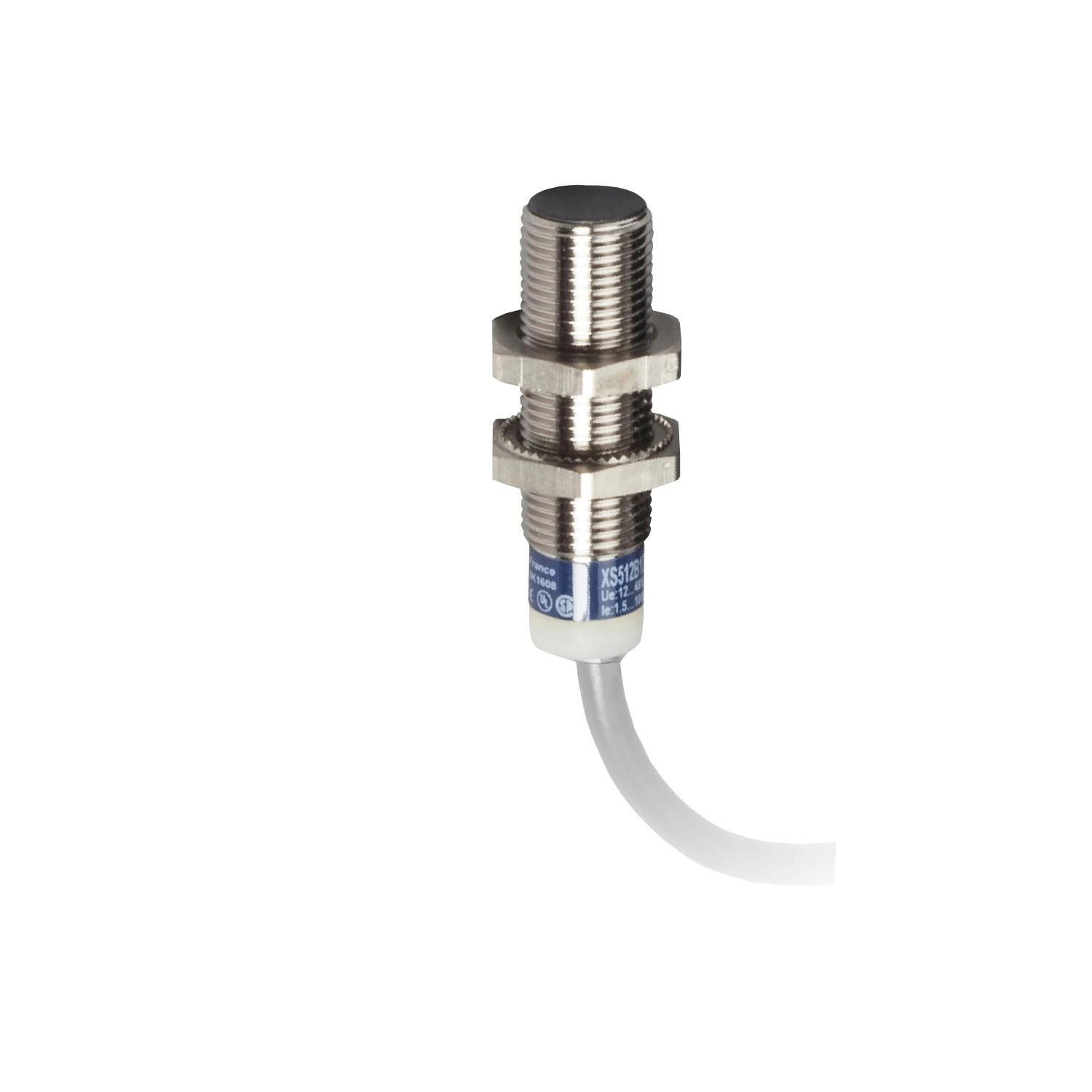

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified. · · · Height: 12mm · · Length: 35mm · · Output Type: Discrete · · Body Style: Fixed · · Thread Size: M12 X 1 · · Weight: 0.075kg

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS512B1PBL2 Categories: , , Brand: Product Code: 2500165622

Description

Technical Specifications  Technical Specifications Inductive proximity switch Interface type None SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None Construction type housing Cylinder, screw-thread Explosion safety category for dust None Mechanical mounting condition for sensor Concise Coating housing Nickel-plated Type of switch function Breaker contact Housing material Metal Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switching output PNP/PNP Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 5000 Hz Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 1 Height of sensor – mm Width sensor – mm Diameter sensor 12 mm Number of protected semiconductor outputs 1 Number of protected contact energized outputs 0 Switching distance 2 mm Max. output current at protected output 200 mA Length of sensor 35 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V With monitoring function downstream switching devices No Cascadable No Suitable for safety functions No Compression-resistant No · Technical Data Sheet – Click to Download
