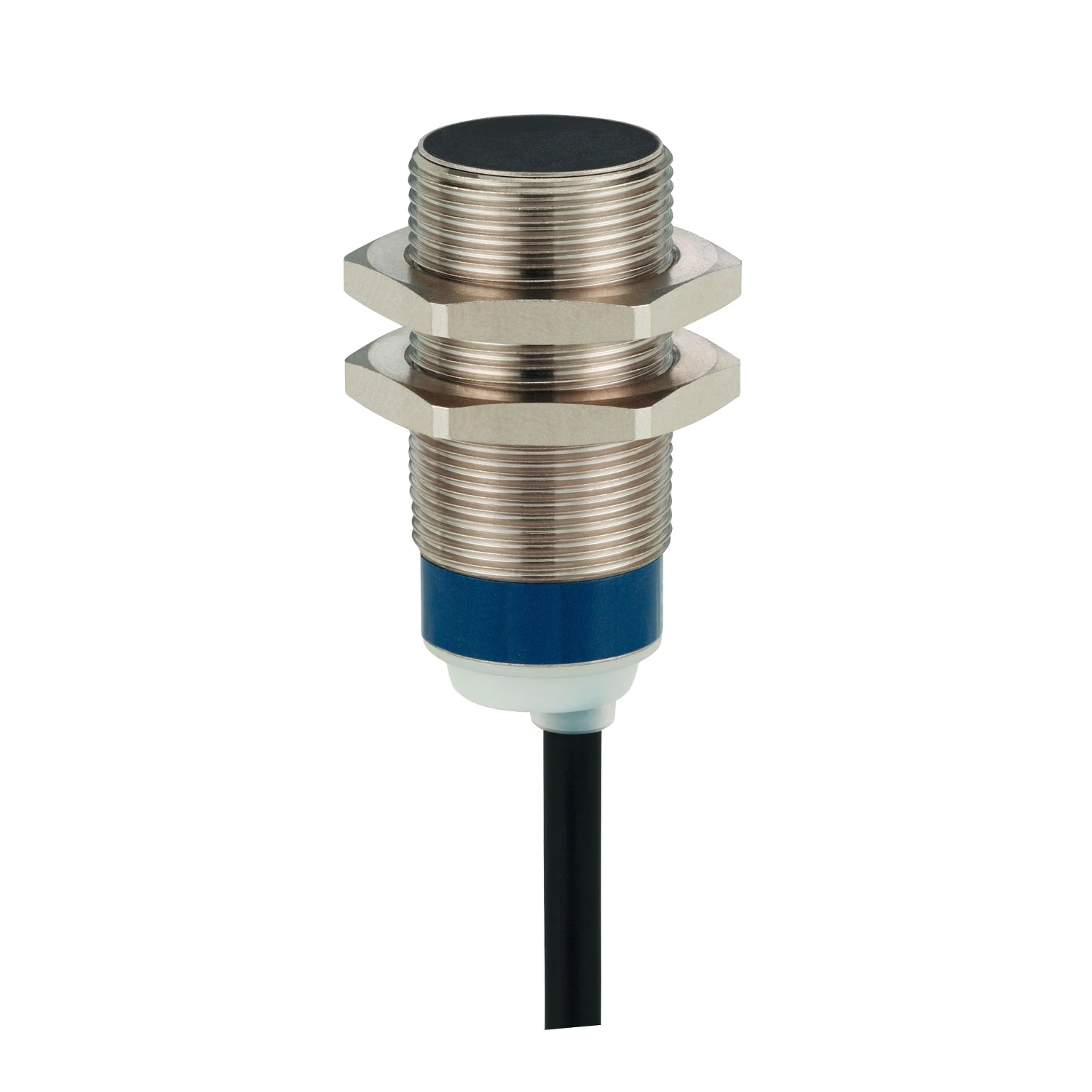

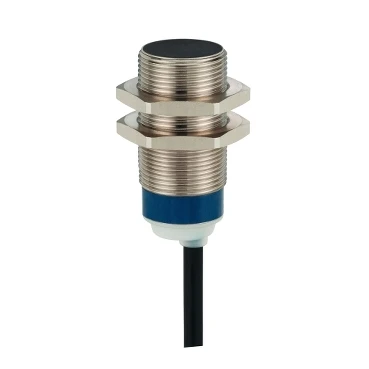

Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M
Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M
Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M - Image 2
Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M - Image 3
Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M - Image 4

Telemecanique Sensors Inductive Sensor Xs5m18 L39mm Brass Sn5mm 12-24Vdc Cable 2M

£45.79 Incl. VAT

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified. · · · This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · Weight: 0.12kg

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS518B1PAL2 Categories: , , Brand: Product Code: 2500165805

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Explosion safety category for gas None Interface type None Type of interface for safety communication None Explosion safety category for dust None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Housing material Metal Type of switching output PNP/PNP Type of switch function Normally open contact Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 2000 Hz Width sensor – mm Number of contact energized outputs with signalling function 0 Height of sensor – mm Number of semiconductor outputs with signalling function 1 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Diameter sensor 18 mm Length of sensor 39 mm Switching distance 5 mm Max. output current at protected output 200 mA Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Cascadable No With monitoring function downstream switching devices No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download
